Siemens RUGGEDCOM RSG2100 Installation Guide

RUGGEDCOM RSG2100
Installation Guide
Chapter 3
Communication Ports
GBIC Optic Ethernet Ports 25
SFP Transceiver Order Code
Speed
(Mbit/s)
Mode
a
Nominal Distance (km)
RUGGEDCOM SFP1132-1LX25 6GK6000-8FG53-0AA0 1000 SM 25
RUGGEDCOM SFP1132-1LX40 6GK6000-8FG57-0AA0 1000 SM 40
RUGGEDCOM SFP1132-1LX70 6GK6000-8FG54-0AA0 1000 SM 70
RUGGEDCOM SFP1132-1LX100 6GK6000-8FG55-0AA0 1000 SM 100
RUGGEDCOM SFP1132-1LX115 6GK6000-8FE56-0AA0 1000 SM 115
a
MM = Multi-Mode, SM = Single-Mode
b
The RUGGEDCOM RSG2100 supports only 100/1000 Mbit/s.
Section3.4
GBIC Optic Ethernet Ports
GBIC (Gigabit Interface Converter) optic Ethernet ports are available with SC (Standard or Subscriber Connector)
connectors.
21

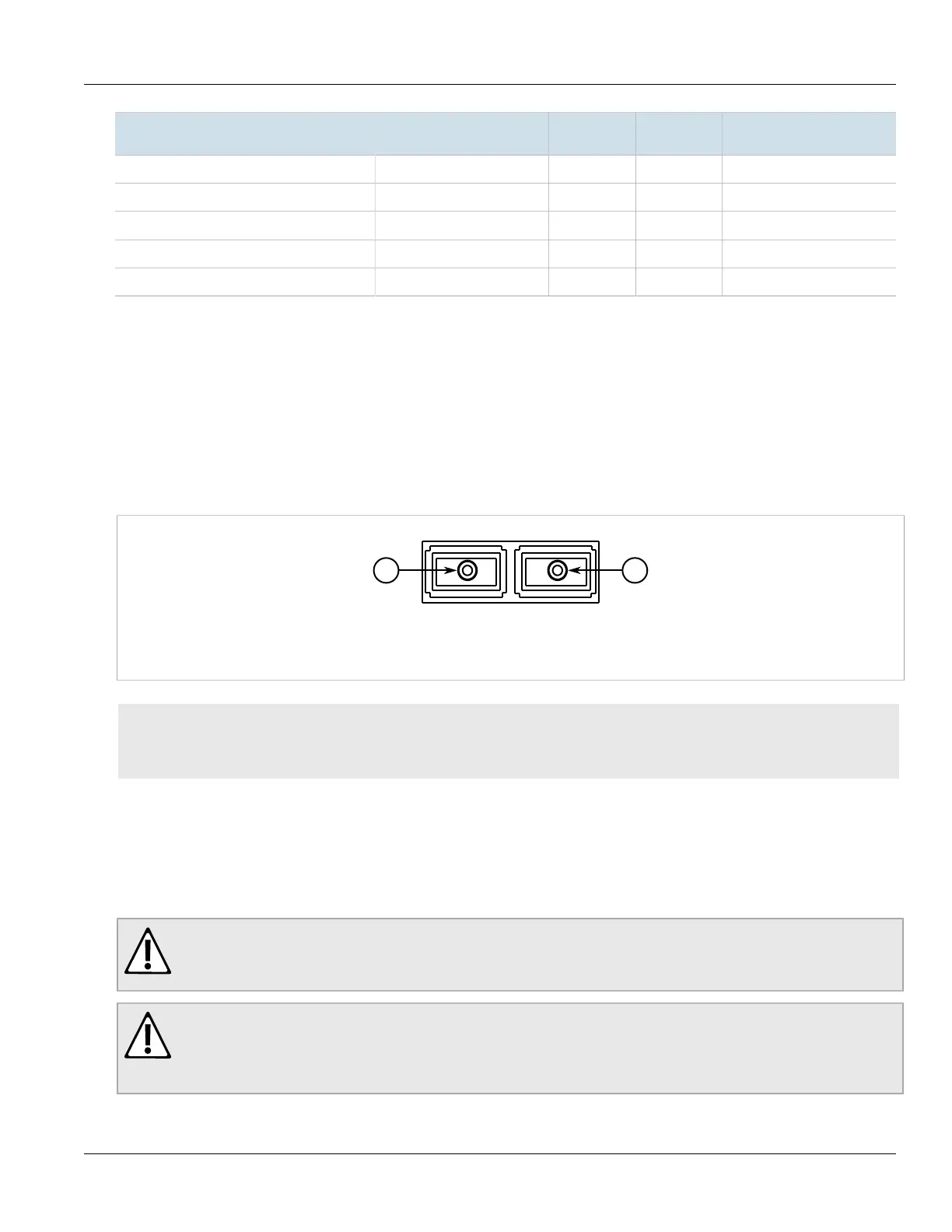

Figure23:SC Port
1.Tx Connector 2.Rx Connector
CONTENTS
• Section3.4.1, “Installing a GBIC Optical Port”
• Section3.4.2, “Removing a GBIC Optical Port”
Section3.4.1
Installing a GBIC Optical Port
To install a GBIC optical port, do the following:
WARNING!
Explosion hazard – risk of serious personal injury and/or equipment damage. Do not install or remove
GBIC optical ports when an explosive atmosphere is present.
CAUTION!
Electrical hazard – risk of damage to equipment. Use only components certified by Siemens with
RUGGEDCOM products. Damage to the module and device may occur if compatibility and reliability
have not been properly assessed.
