22 Connecting the Device to the Network
Port Connect To...
A Connect to port B of the neighboring HSR/HSR
RedBox or to the HSR ring
B Connect to port A of the neighboring HSR/HSR
RedBox or to the HSR ring
5 (Coupler) Connect to the coupling (or interlink) port of the
companion HSR/HSR RedBox
1 to 4 Connect to one or more Singly Attached Nodes
(SANs)
5
4
4
1
AB
5
AB
7
75
AB
AB
3
2
2
3

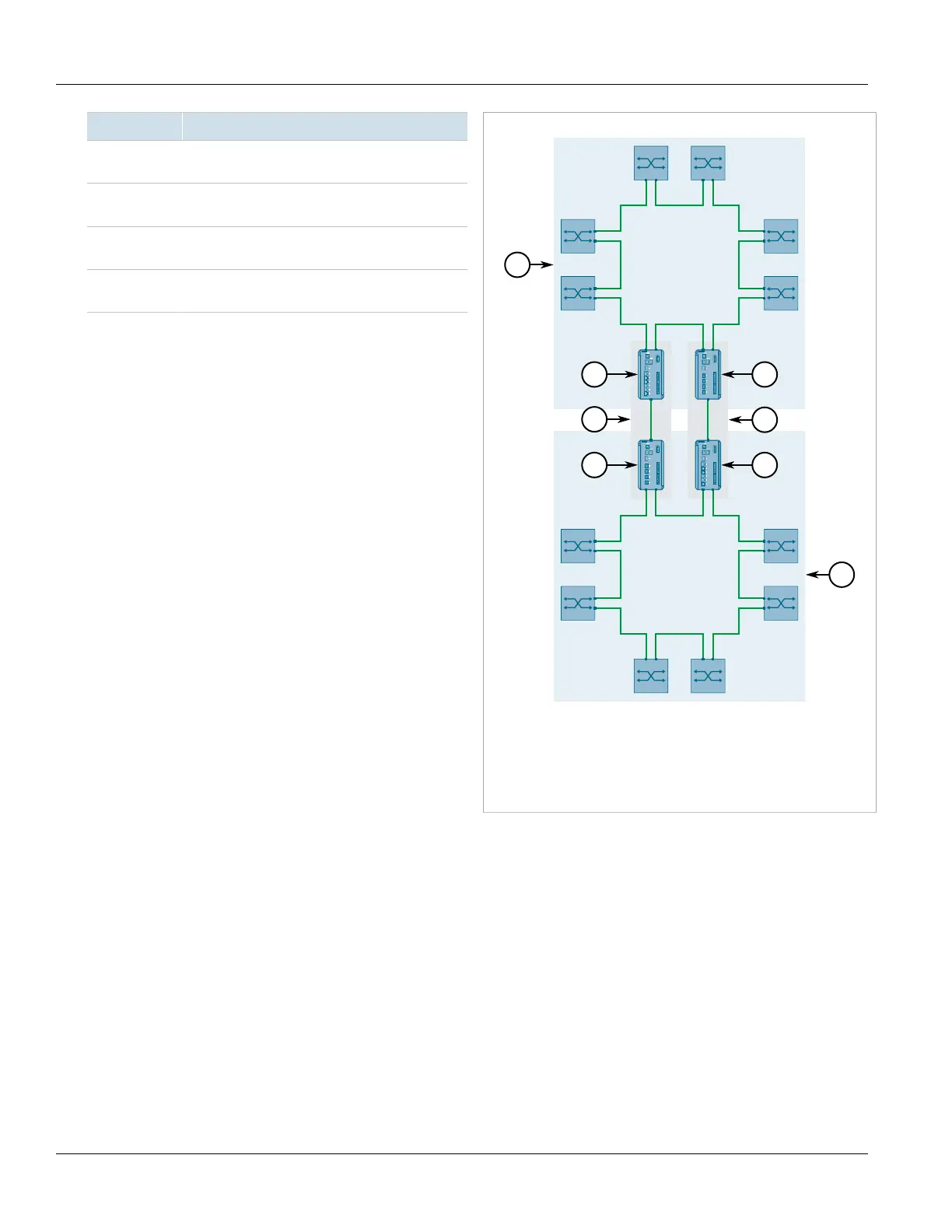

Figure22:HSR Quadbox
1.HSR Ring 2.HSR Quadbox 3.HSR/HSR RedBox (RUGGEDCOM
RSG909R;RSG908C;RSG910C) 4.HSR/HSR RedBox (RUGGEDCOM
RSG907R)
