RUGGEDCOM RX1501
Installation Guide
Chapter 3
Communication Ports
RUGGEDCOM APE Module 31
The module is compatible with the following standards:
• AT&T PUB 62310 (Standard DDS)
• BELLCORE TA-TSY-000077
• BELLCORE TR-TSY-000458
• ANSI T1.410
It also supports the following operating modes:
Operating Mode Line Rate
DDS-PRI 56 kbps
CC-64K 72 kbps
Each RJ45 port features a RX and TX LED that indicates the state of the port.
LED LED Color Status
Rx Frame sync detected and signal OK.
Tx
Green
The interface is enabled and remote device has no errors.
Rx Signal OK, but no frame sync.
Tx
Yellow
The interface is in loopback mode.
Rx Loss of signal.
Tx
Red
Loss of signal or receiving any of OOS, UNM, or UMC codes: the remote device is
out of service or has problems with the signal.
Rx The interface is not enabled.
Tx
Off
The interface is not enabled.

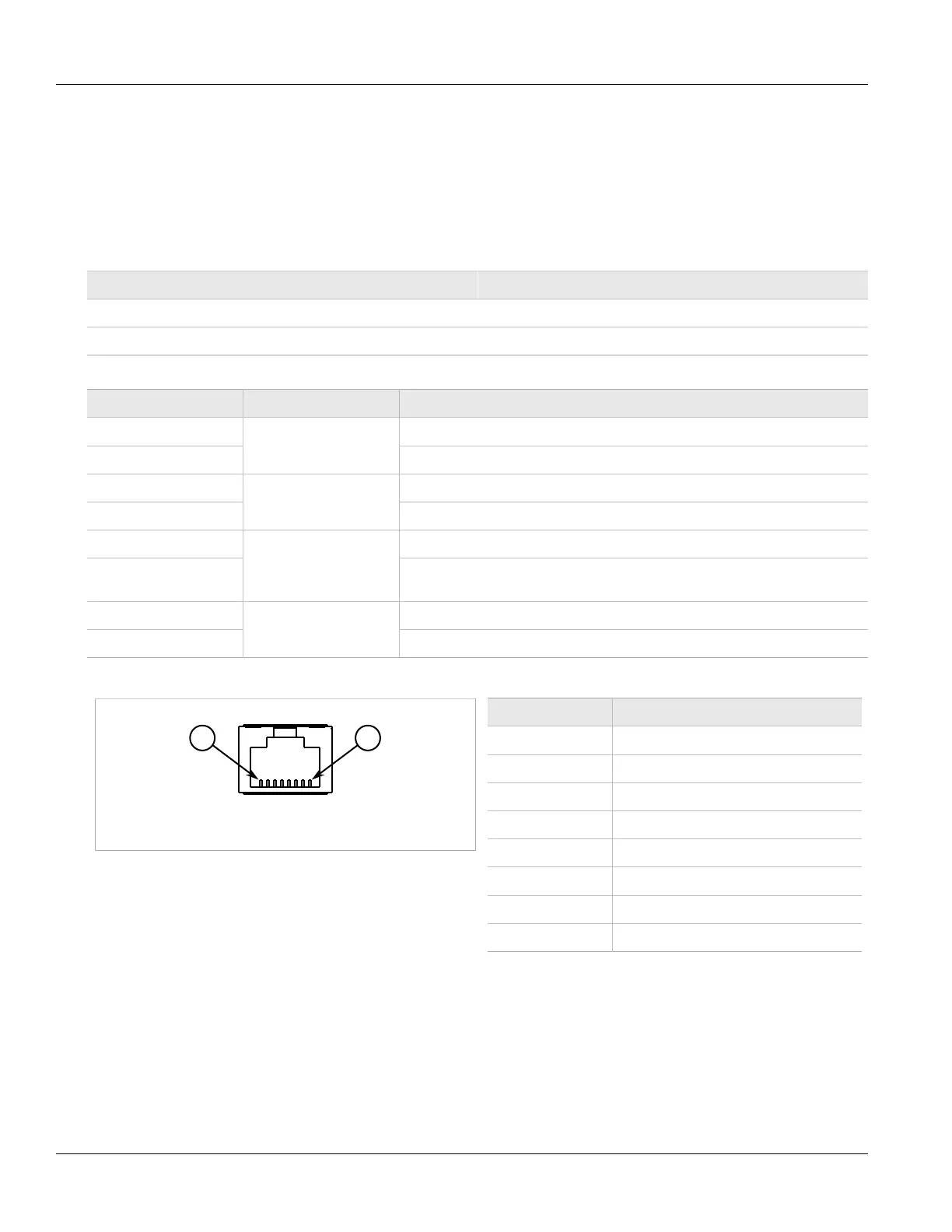

The following is the pin-out for the DDS RJ45 ports:
Figure 48: DDS RJ45 Pin
Pin Description
1 Transmit data to network (Tip)
2 Transmit data to network (Ring)
3 Reserved (Do Not Connect)
4 Reserved (Do Not Connect)
5 Reserved (Do Not Connect)
6 Reserved (Do Not Connect)
7 Receive data from network (Tip)
8 Receive data from network (Ring)
Section 3.8
RUGGEDCOM APE Module
The RX1501 supports various versions of the RUGGEDCOM APE (Application Processing Engine) module. The
APE is an x86-based computer design that can host a variety of x86-based operating systems. It also features
