Siemens RUGGEDCOM RX1510 Installation Guide

RUGGEDCOM RX1501
Installation Guide
Chapter 3
Communication Ports
Connecting Multiple RS485 Devices 35
< 1219 m (4000 in)
120Ω 10nF
120Ω 10nF
1
2
3
5
5
6
4

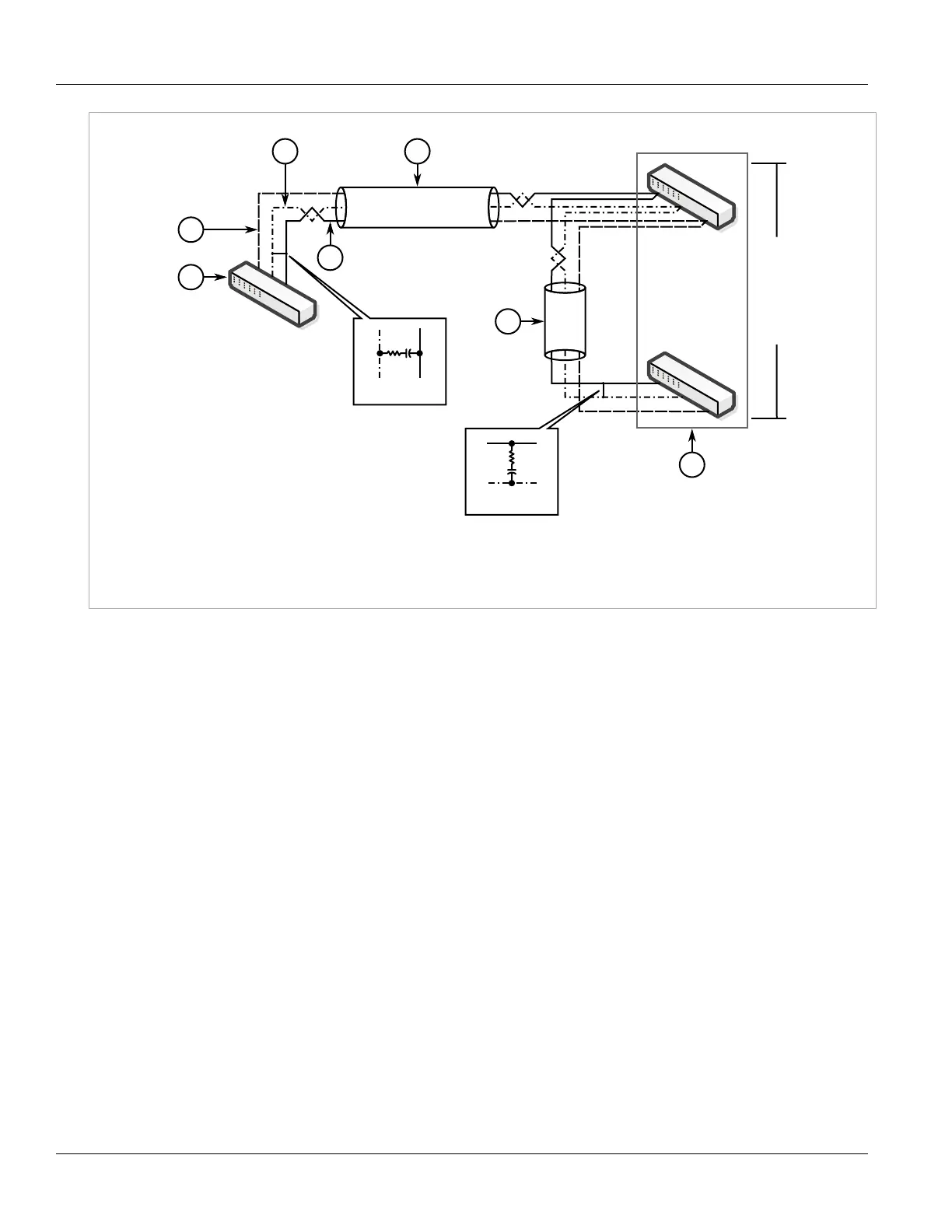

Figure 52: Recommended RS485 Wiring
1. RX1501 Device 2. Common (Isolated Ground) 3. Negative 4. Positive 5. Shield to Earth (Connected At a Single Point)
6. RS485 Devices (32 Total)
