CP 1243-7 LTE
Operating Instructions, 01/2015, C79000-G8976-C381-01
117
Dimension drawings
A
Note
All dimensions in the drawings of the CP are in millimeters.

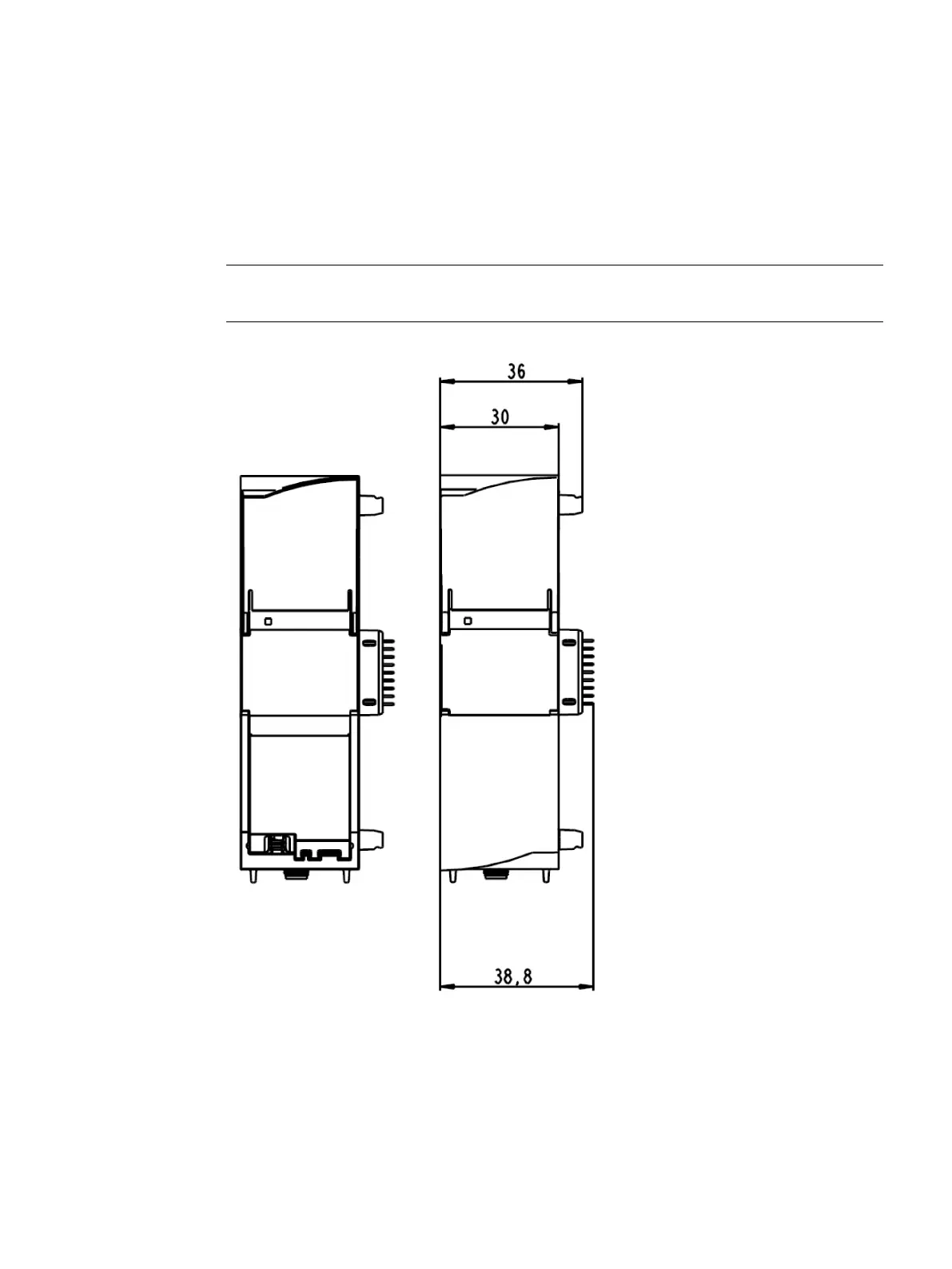

Figure A-1 Front view
