Mounting

4.1 Installing on a DIN rail / removing

SCALANCE W760/W720

26 Operating Instructions, 07/2020, C79000-G8976-C322-12

4.1 Installing on a DIN rail / removing

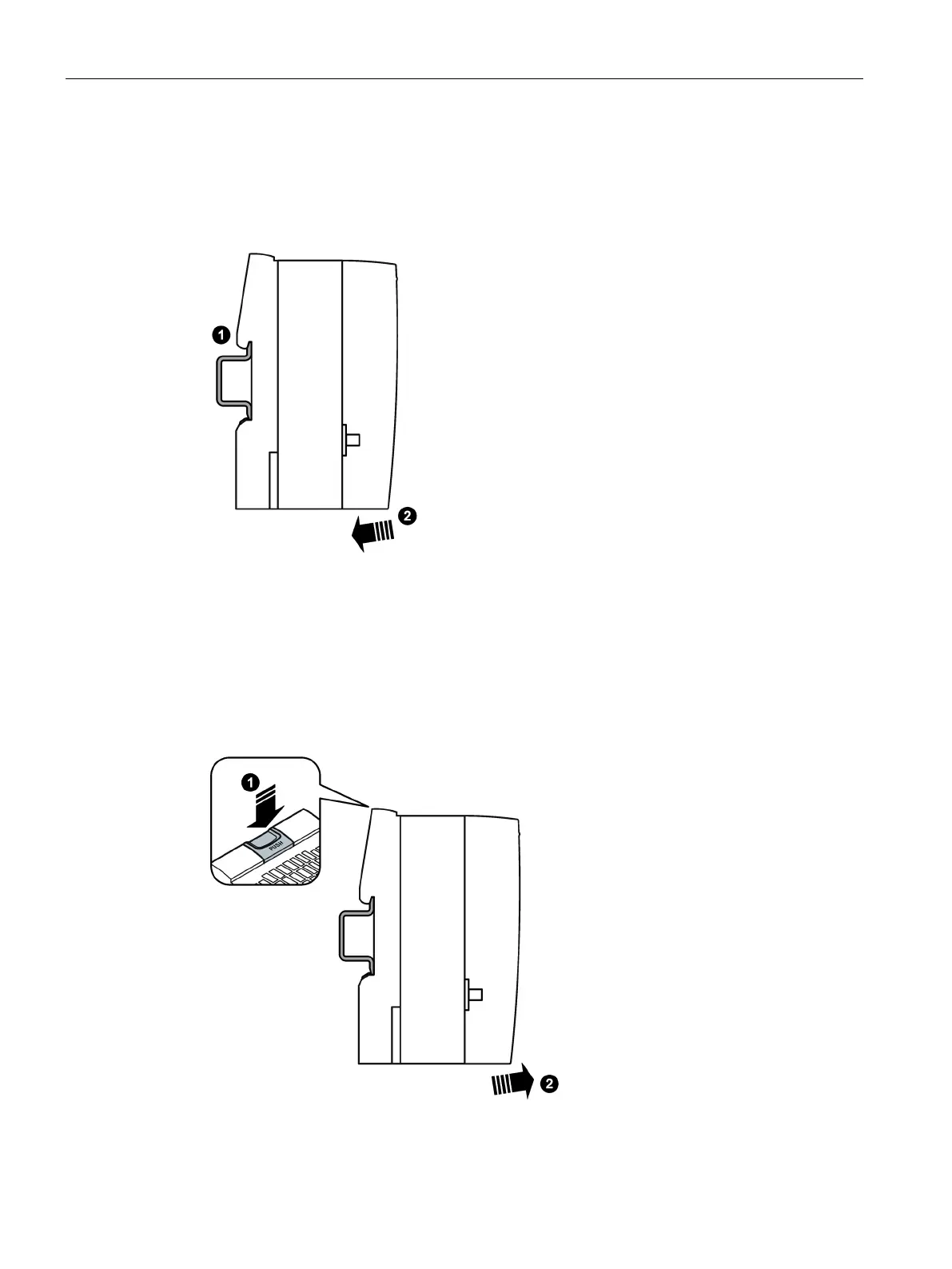

Procedure for installation

Follow the steps below to fit the SCALANCE W760/W720 to a DIN rail:

1. Place the device on the upper edge of the DIN rail as shown in the figure.

2. Press the device against the DIN rail until the DIN rail slider catch locks in place.

3. Mount the connecting cables and the antenna, see section "Connecting up (Page 29)".

Procedure when removing
