Connection
5.3 Ethernet
SCALANCE W760/W720
34 Operating Instructions, 07/2020, C79000-G8976-C322-12
5.3 Ethernet

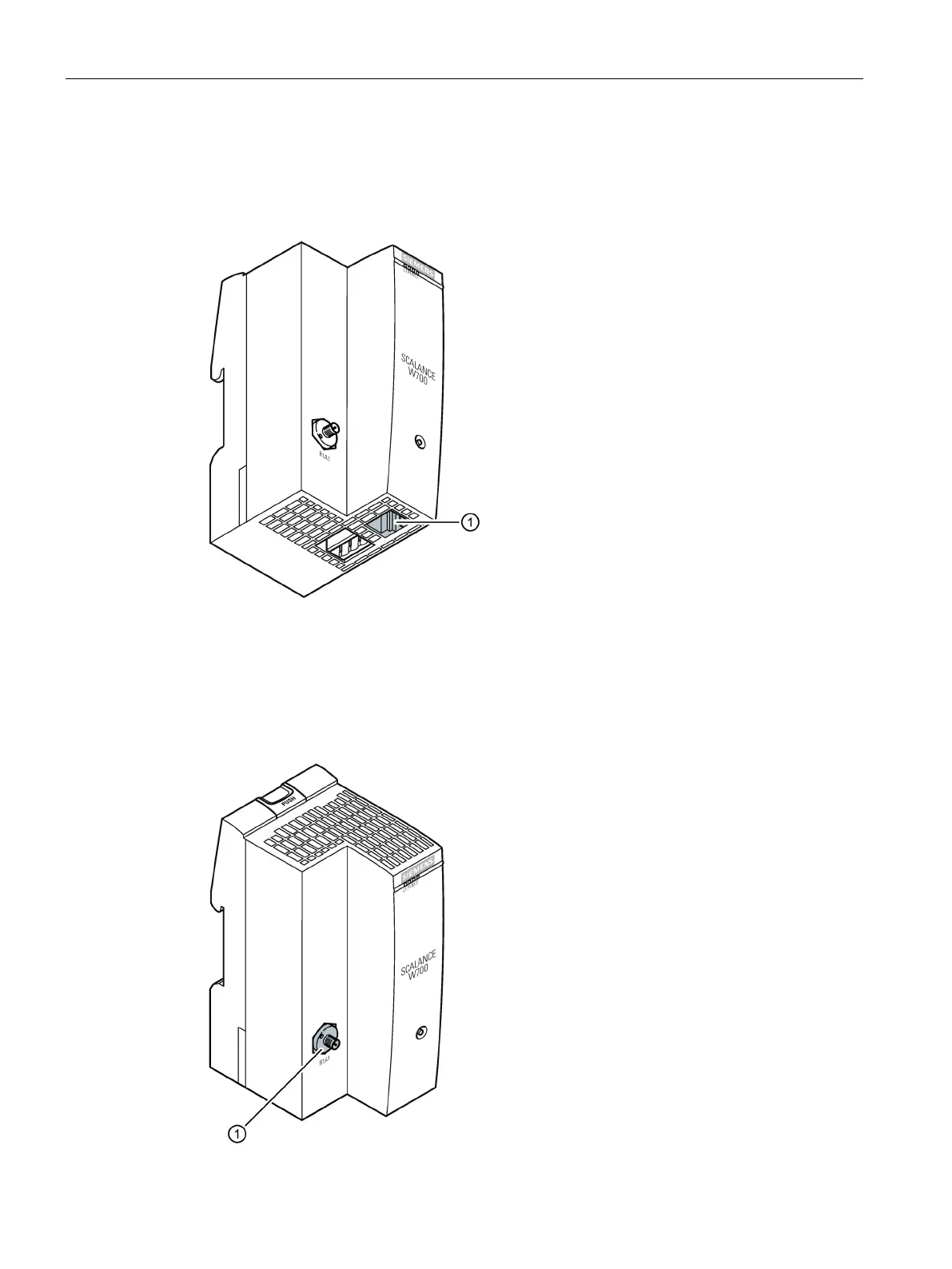

The SCALANCE W760/W720 has two Ethernet interfaces located on the underside of the
device (position
①).
5.4 Antenna connector
The SCALANCE W760/W720 has an antenna connector R1 A1 of the type R-SMA located
on the front of the device (position
①).
