Siemens SCALANCE W788 User Manual

Mounting
4.2 Wall mounting
SCALANCE W788-x / W748-1
Operating Instructions, 09/2017, A5E03678333-12
29
4.2
Wall mounting
Use the holes in the housing to screw the device to the wall or on a horizontal surface. The
location of the holes can be seen in the following figure:

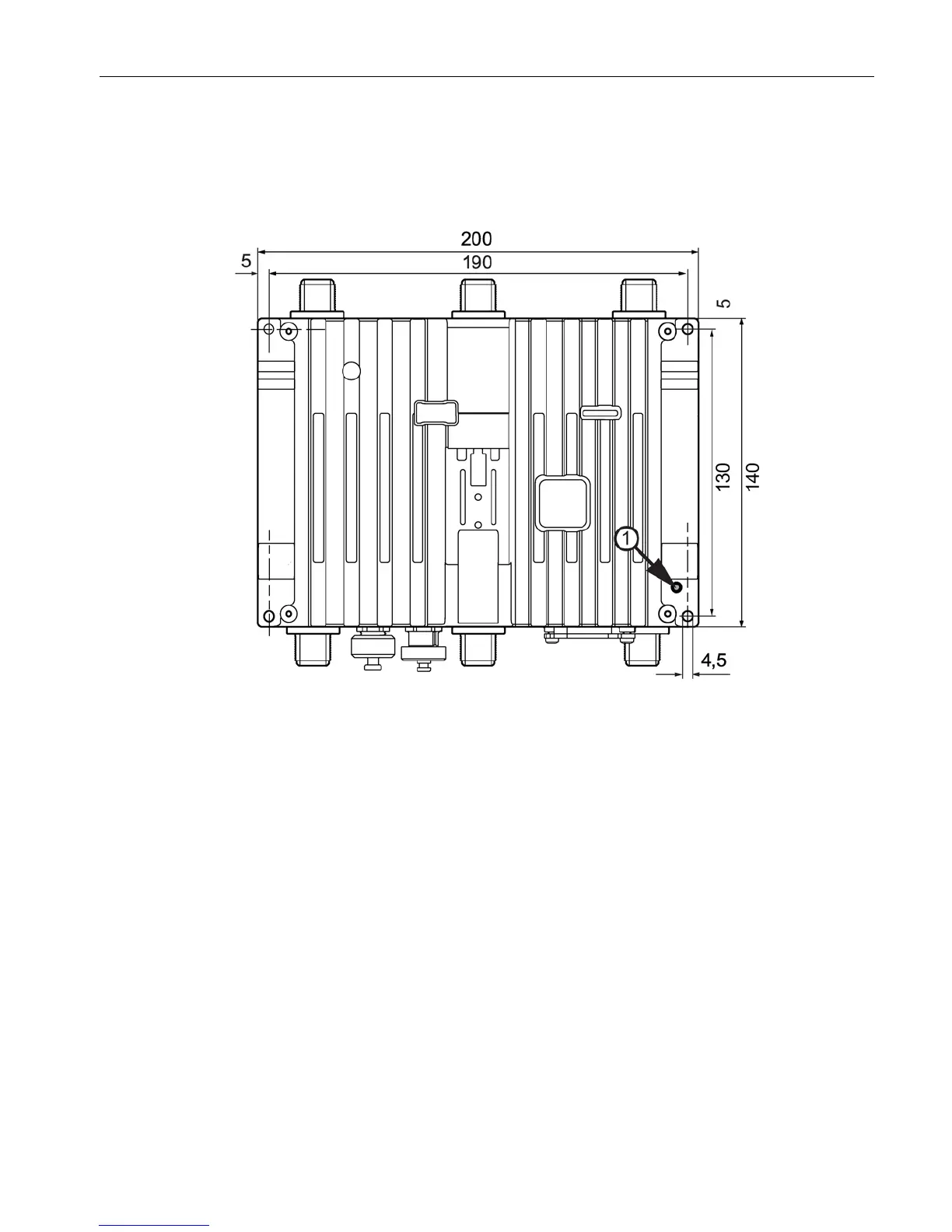

Figure 4-1 Drilling pattern (dimensions in mm)
①
Ground connector (thread M4)
