Siemens SCALANCE W788

SCALANCE W788-x / W748-1
Operating Instructions, 09/2017, A5E03678333-12
63
Dimension drawings
8
The following dimensions are specified in mm.

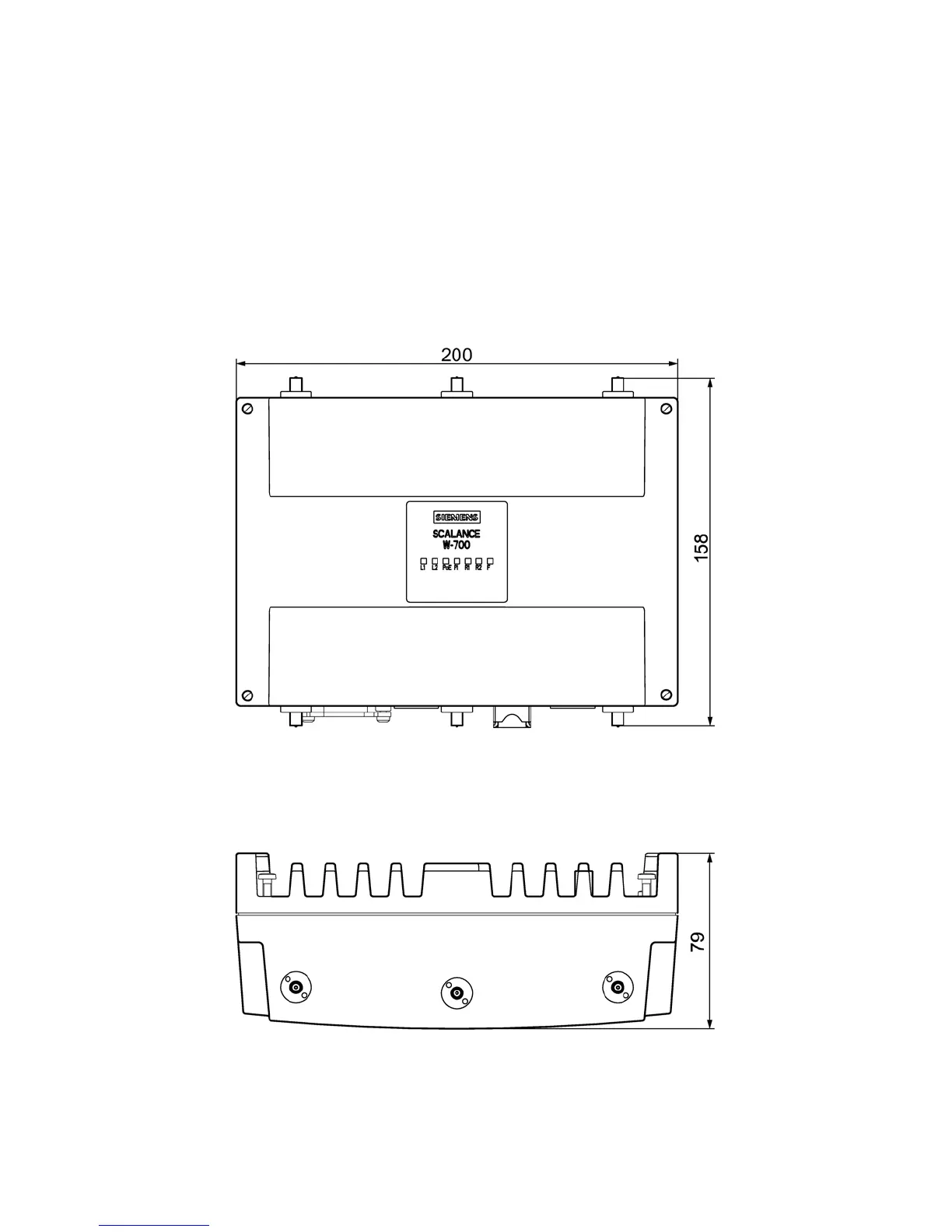

Dimension drawing of the SCALANCE W7x8-2 RJ45 (degree of protection IP30)
Figure 8-1 Front view RJ-45
Figure 8-2 View from above RJ-45
