Dimension drawings
SCALANCE W788-x / W748-1
64 Operating Instructions, 09/2017, A5E03678333-12
Dimension drawing of the SCALANCE W7x8-2 M12 (degree of protection IP65)

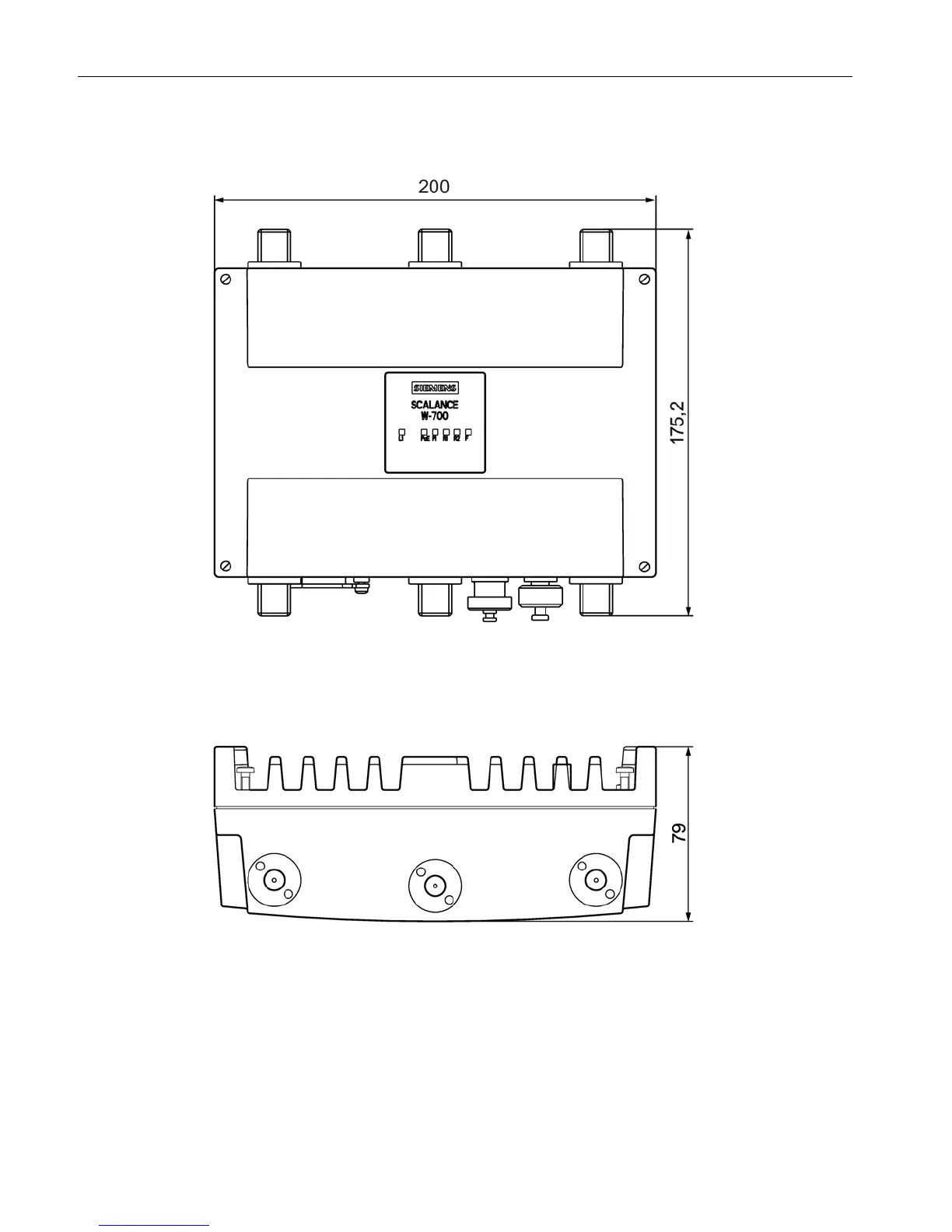

Figure 8-3 Front view M12
Figure 8-4 View from above M12
