SCALANCE W788-x / W748-1
Operating Instructions, 09/2017, A5E03678333-12
11
Description of the device
3
3.1
Description of the device

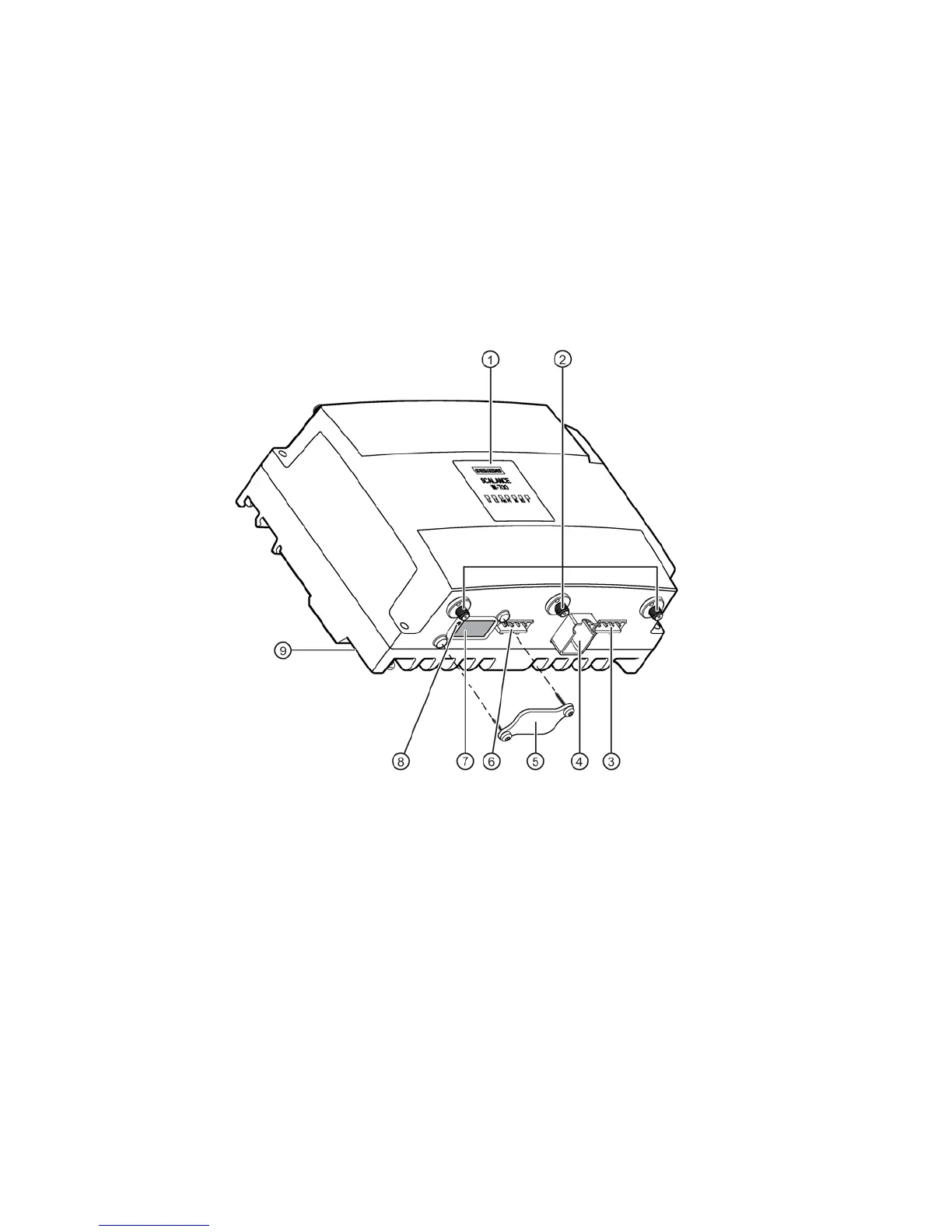

W7x8x-x RJ-45 - degree of protection IP30
LEDs
Connecting connectors, R-SMA type female
Devices with one IWLAN interface: 3 connectors on the top (covered in the figure).
Devices with two IWLAN interfaces: 3 connectors on the top and 3 on the underside.
Connector for power supply
Connector for Ethernet, RJ-45 type
Screw-down cover for the
- reset button and the
- PLUG compartment (not with W788C)
Connector for the digital input/output (not with W788C)
PLUG compartment (not with W788C)
Reset button
Grounding connector (thread M4) on the back of the device
Figure 3-1 Device description of the RJ-45 variant
