Mounting
4.4 Installing on the S7-1500 standard rail
SCALANCE W788-x / W748-1
Operating Instructions, 09/2017, A5E03678333-12
31
4.4
Installing on the S7-1500 standard rail
Follow the steps below to install the SCALANCE W7x8 on a vertical S7-1500 rail:
1. Place the device on the upper edge of the S7-1500 standard rail (position A).
2. Screw the device to the rail using the supplied screw (position B).

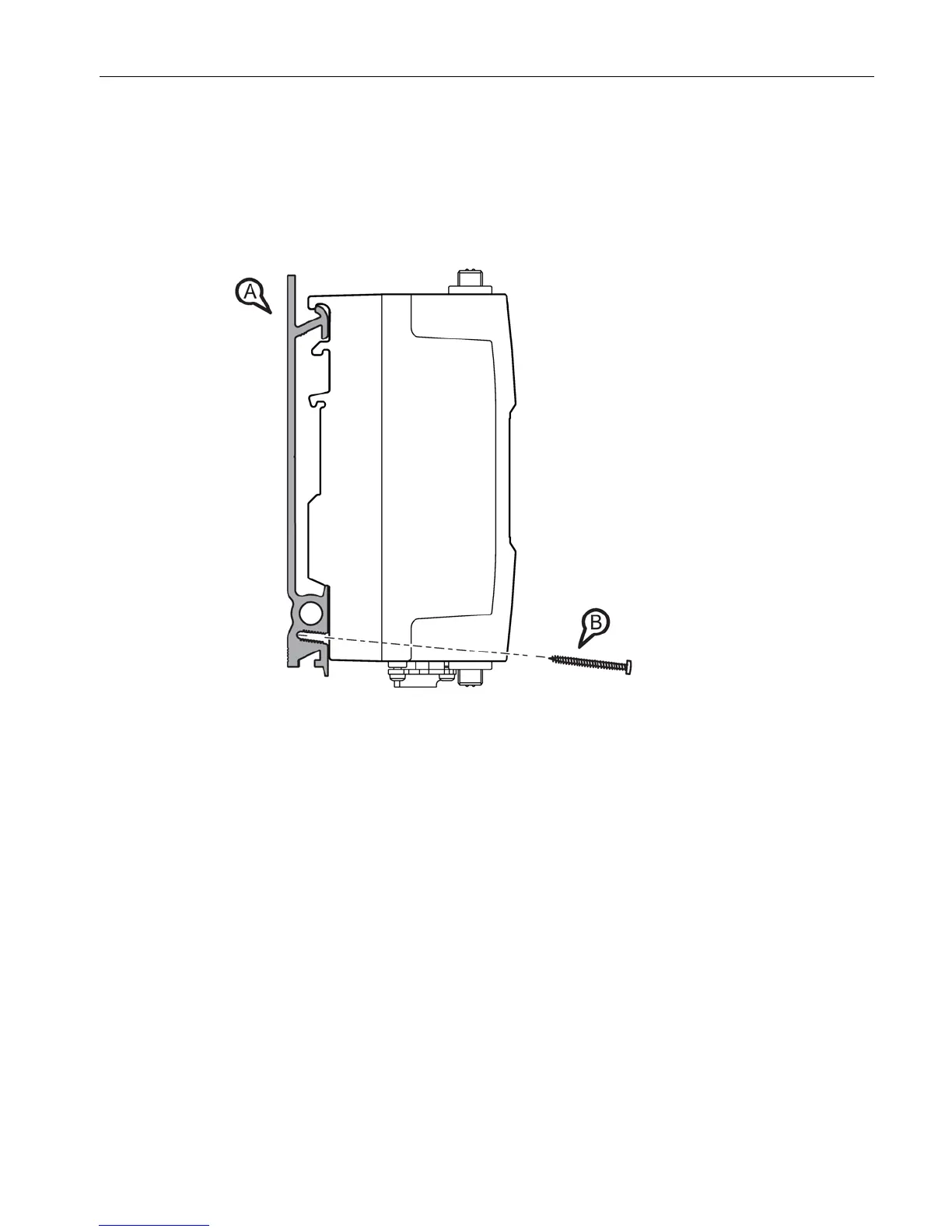

Figure 4-3 Installing on an S7-1500 standard rail
