Mounting
4.5 Installing on a DIN rail
SCALANCE W788-x / W748-1
32 Operating Instructions, 09/2017, A5E03678333-12
4.5
Installing on a DIN rail
The SCALANCE W7x8 is suitable for rail mounting on 35 mm DIN EN 50022 rails.
Bracket for DIN rail mounting
Note
The bracket for installation on a DIN rail does not ship with the product, see
Accessories
(Page
15).
The bracket consists of the following parts:
● 1 DIN rail slider
● 1 spring
● 2 screws
Mount the bracket on the rear of the device as shown in the figure below:

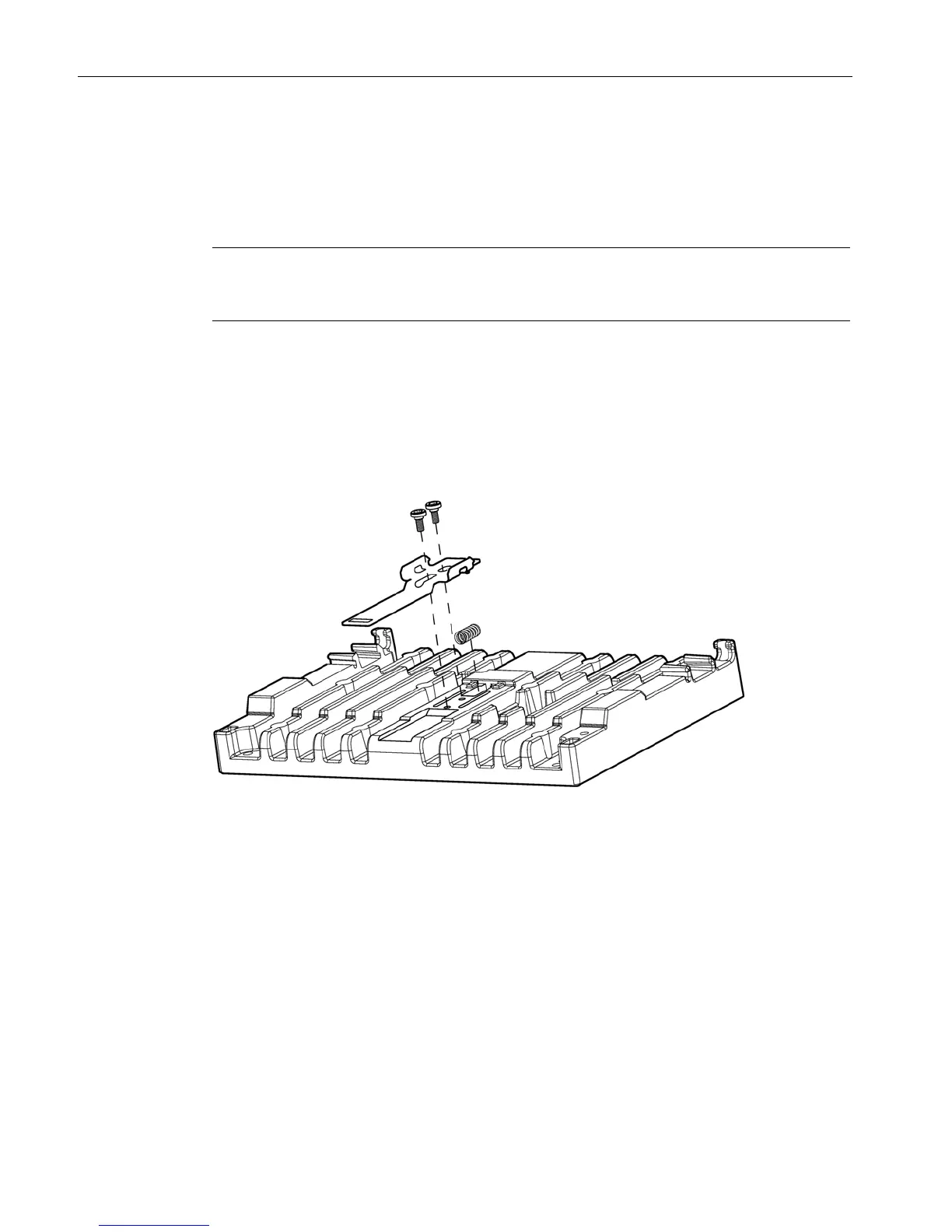

Figure 4-4 Fitting the DIN rail slider
