Siemens SCALANCE W788

Mounting
4.5 Installing on a DIN rail
SCALANCE W788-x / W748-1
Operating Instructions, 09/2017, A5E03678333-12
33
Installing on the DIN rail
The following figure shows the W7x8 mounted on a DIN rail. Follow the steps outlined below:
1. Place the device on the upper edge of the DIN rail (position A).
2. Pull the spring-mounted DIN rail slider (position B) down and press the device against the
DIN rail until it locks in place.

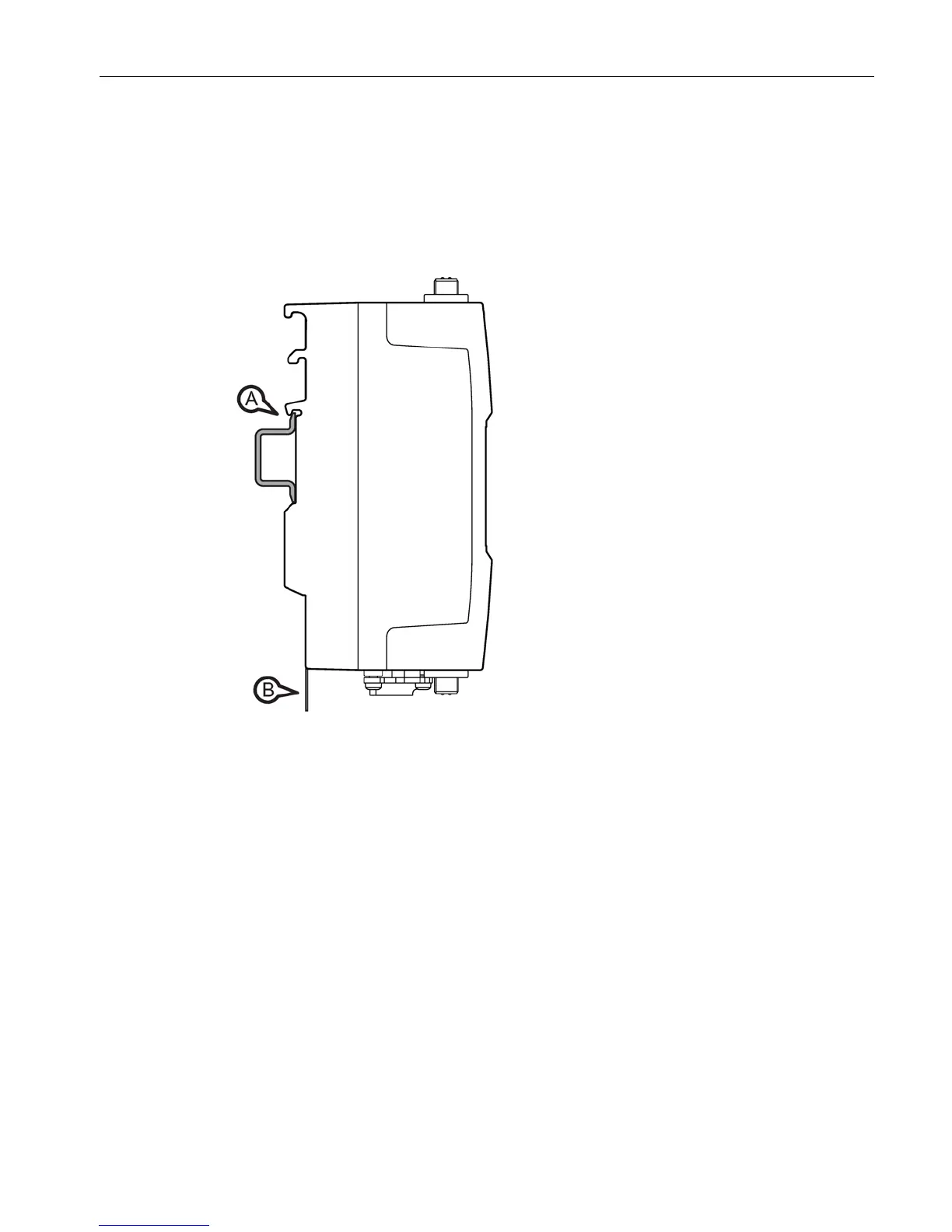

Figure 4-5 Installing on a DIN rail
