2.3 Options of media redundancy
SCALANCE X-300 / X-400
Configuration Manual, 10/2014, C79000-G8976-C187-22
23
2.3.3
MRP multiple rings
Only for SCALANCE X414-3E: MRP multiple rings
With the MRP multiple rings function, it is possible to control up to 4 MRP rings with one
central X414 redundancy manager.
MRP multiple rings can only be configured using PROFINET.

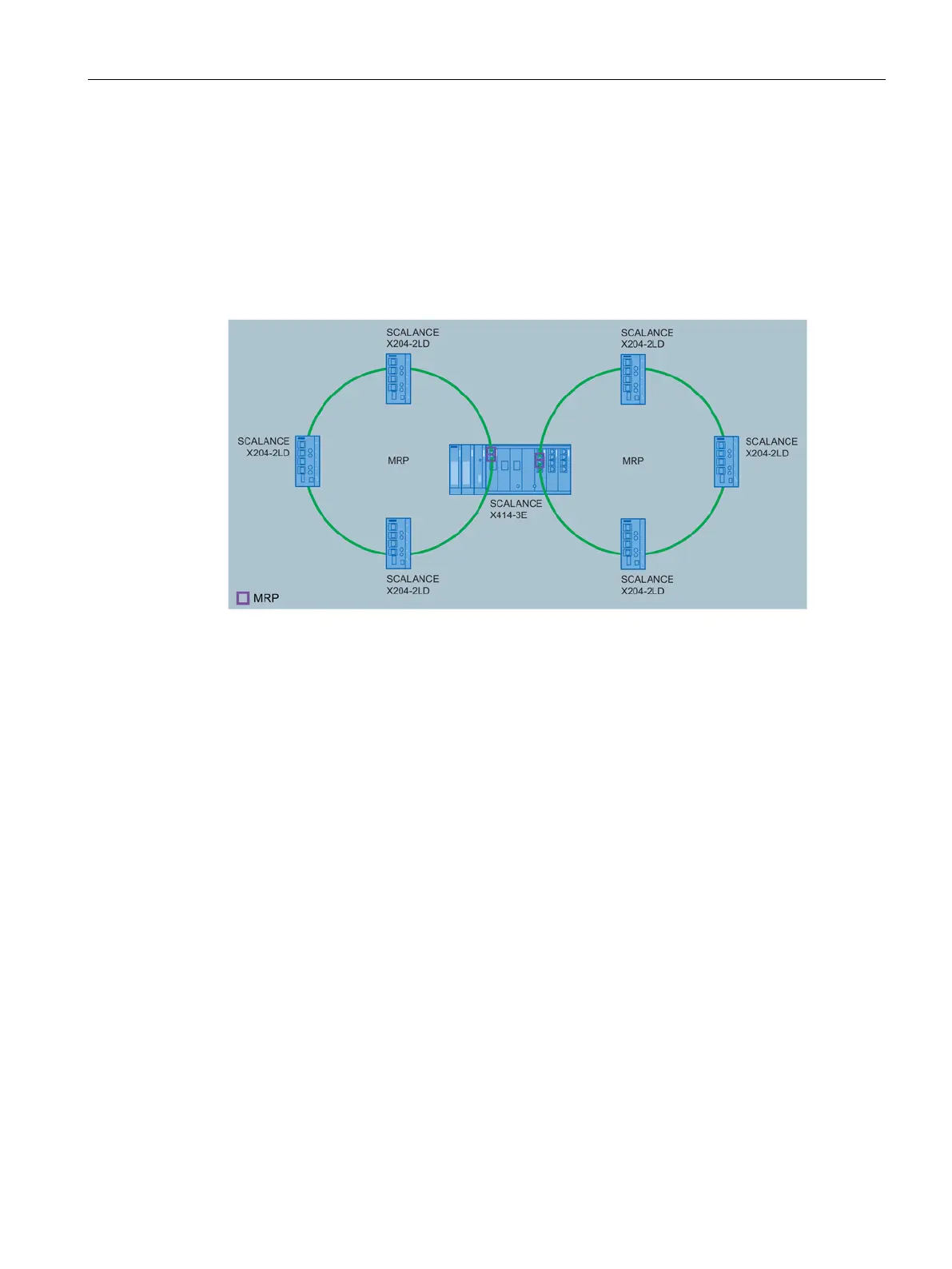

Figure 2-3 MRP multiple rings
