XNET over Ethernet Class B (Style 4) if the “Style 4 Fiber Optic Connections” option is enabled in NCC System
Settings. The Ring Redundancy should be unchecked in the Fiber Optic Switch Web Interface.

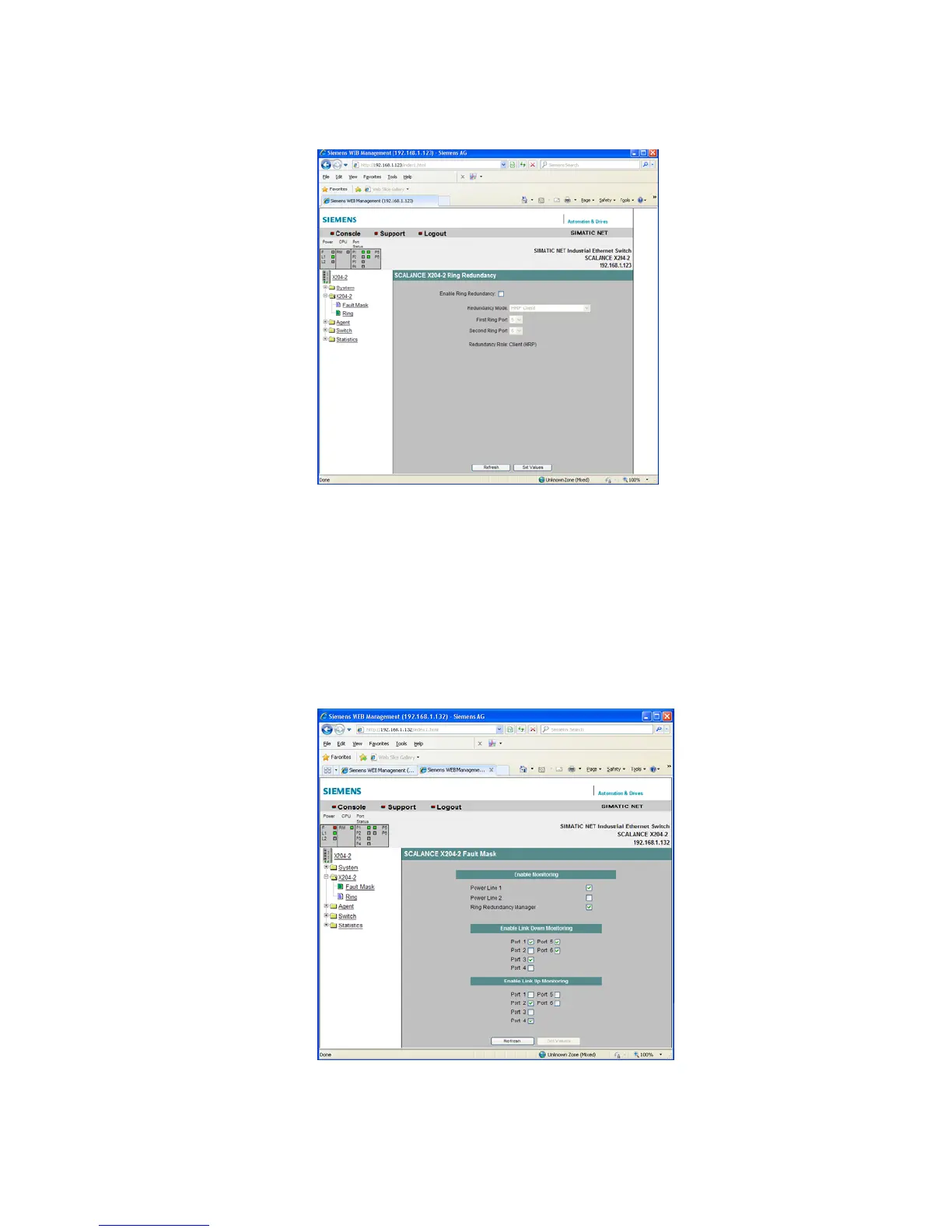

Figure 21
Style 4 Settings
Fiber Switch Fault Settings The Network Command Center (NCC) requires fault mask, agent configuration, agent
event configuration and agent traps configuration settings to supervise the fiber optic
switch using Simple Network Management Protocol (SNMP). Web Based Manage-
ment (WBM) is the tool used for these settings.
Figure 22
Fault Mask
