Fault Mask The settings in the Fault Mask dialog allow you to monitor the link status and the
ring redundancy manager.
1. Expand the X204-2 icon and click on Fault Mask.
2. Under Enable Monitoring, select “Ring redundancy manager.”
3. Select Enable Link Down Monitoring for Port 5 and Port 6.
4. Select Enable Link Down Monitoring for the used Ethernet ports that have
an Ethernet connection on the fiber ring.
5. Select “Link Up Monitoring” for unused ports to supervise unauthorized
connection to the fiber ring.
6. Click on the “Set Values” button.
Agent Configuration This dialog allows you to select which agents are to be enabled.
1. Click on the Agent icon.
2. Select the following Agent Enabled Features:
a. SNMP
b. Traps
c. TELNET (Optional)
3. Confirm that the IP address is the same as the switch IP address.
4. Click on the “Set Values” button.

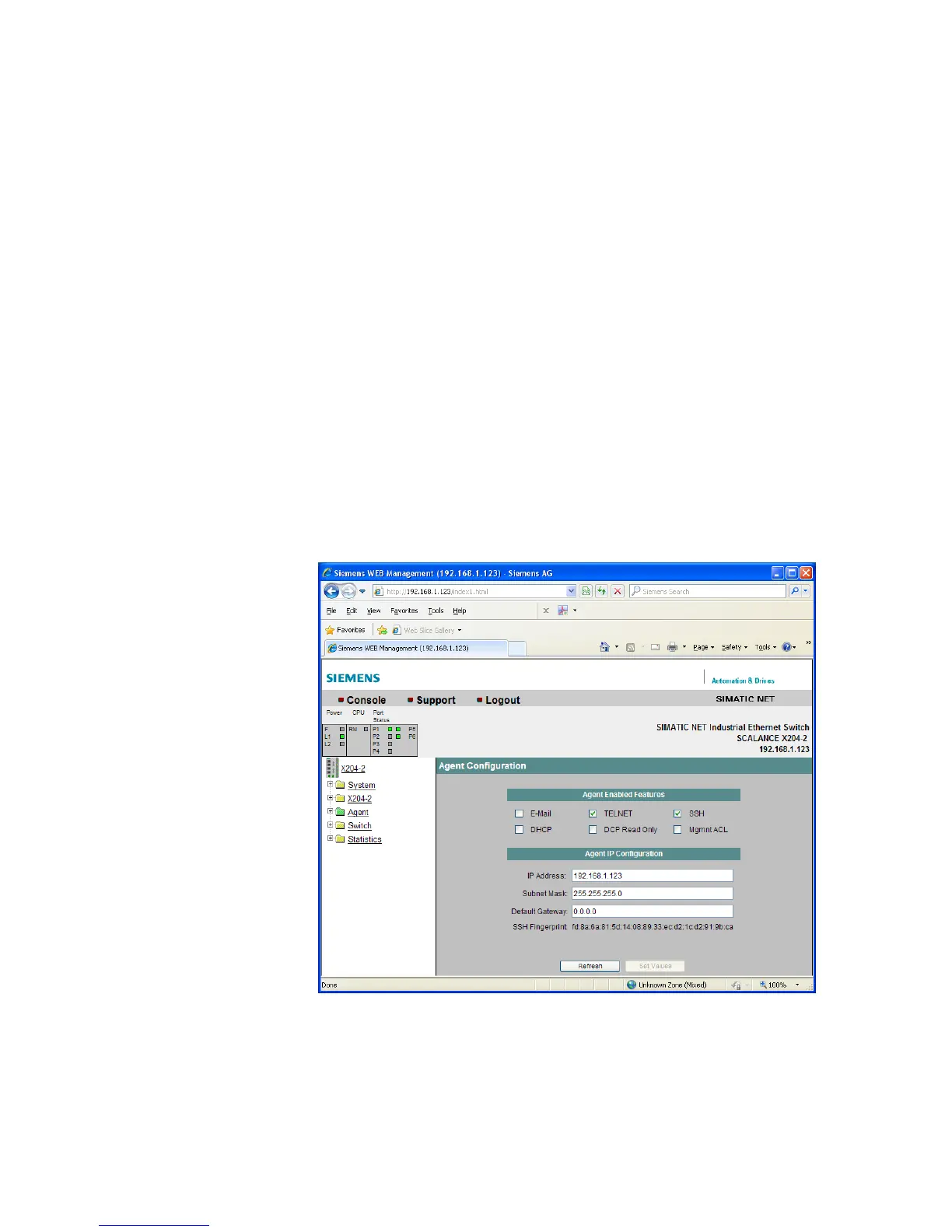

Figure 24
Agent Configuration
