Siemens Industry, Inc.
Building Technologies Division
P/N 315-050537-325
NCC Setup First, launch the NCC. Once the NCC is launched, click on More->Setup->System-
>Options to launch NCC System Settings. At the Multiple NCC Configuration Options
make sure that the following are checked:
• Control Vectoring
• TCP/IP used for NCC link
• Inhibit automatic data base exchange
Click Done when finished.

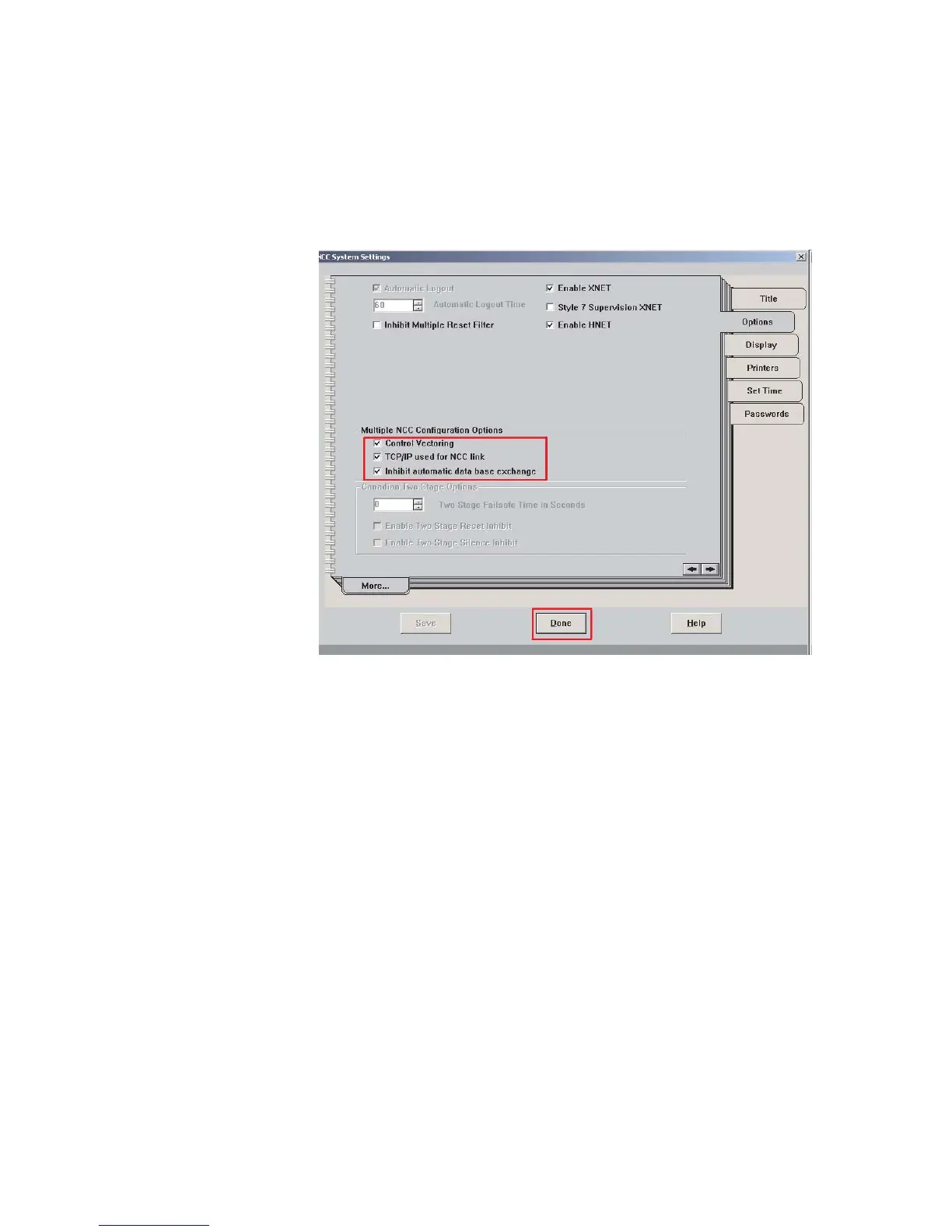

Figure 33
NCC System Settings
• At the NCC, launch the Network Node Map to view the current configura-
tion by clicking More->Setup->Network from the NCC interface.
• This is a list of all XLS/MXL nodes and NCCs in an entire complex that are
communicating with the NCC.
• To add a new NCC, XLS or MXL Node into the NCC, click the Add button.
To Next Page
