Siemens Scalance X204-2LD Single Mode - Adding an XLS

Siemens Industry, Inc.
Building Technologies Division
P/N 315-050537-327

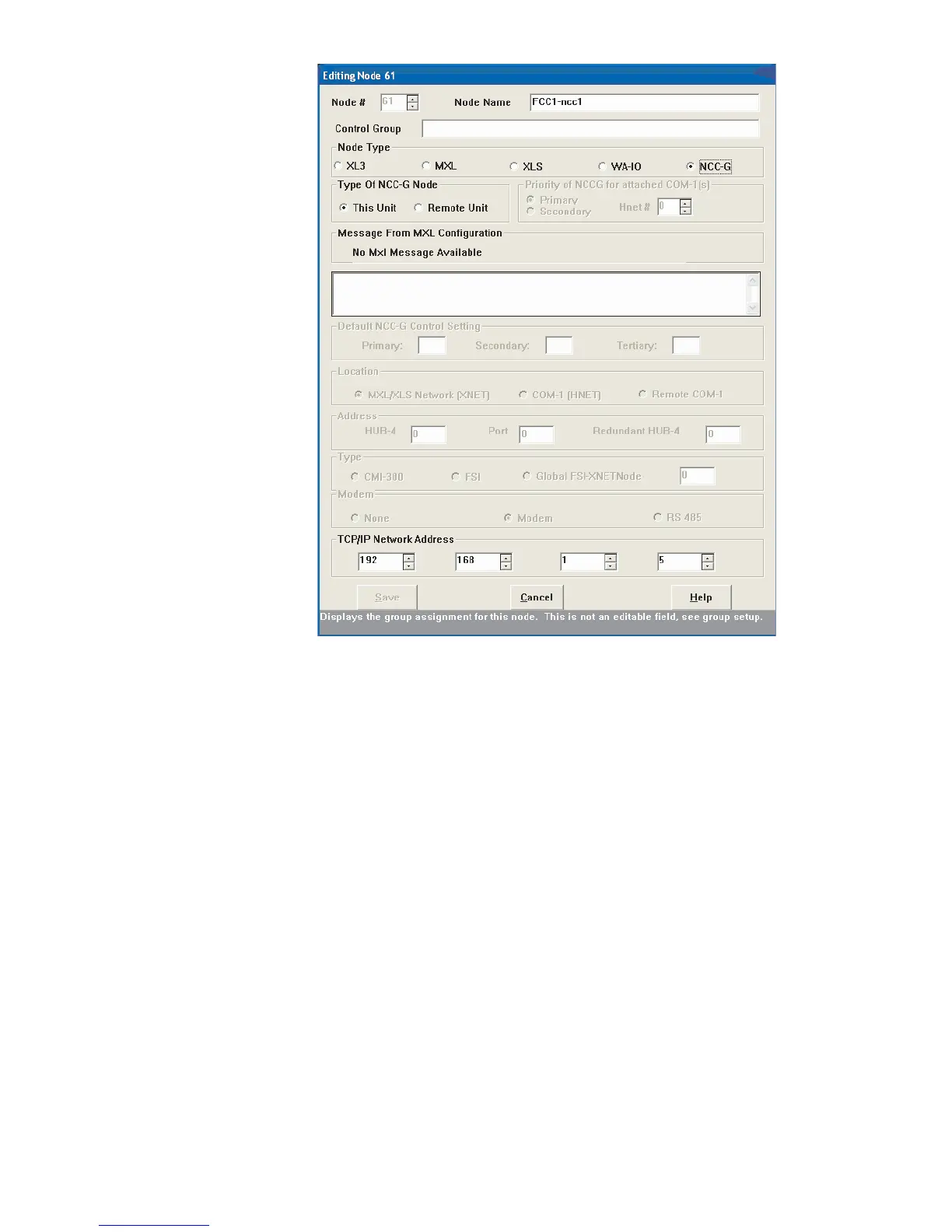

Figure 35
Adding An NCC Node
Adding An XLS To add an XLS node, complete the following steps (refer to Figure 36):
• Type in the Node number to match the Node number from the Zeus
configuration.
• Add a Node Name.
• Choose “XLS” as the Node Type.
• Choose the Node numbers of the NCC as the Default NCC-G Control
Setting.
• Click the Save button.
