Component Length Packaging
unit
Order number Suitable for
XB‑000
Fast Ethernet
Suitable for
XB‑000G
Gigabit Ether‐
net
IE FC RJ-45 Plug 4x2 - 10 6GK1901‑1BB11‑2AB0 (+) +
IE FC RJ-45 Plug 180 2x2 - 50 6GK1901‑1BB10‑2AE0 + -
IE FC RJ-45 Plug 4x2 - 50 6GK1901‑1BB11‑2AE0 (+) +
Note
For the devices with Fast Ethernet, you can use cables and connectors with 2x2 lines. The use of
4x2 lines is also possible but not absolutely necessary. These products are indicated by (+).
4.3 Product properties and device views
4.3.1 SCALANCE XB004-1
Possible attachments
The SCALANCE XB004-1 has four RJ-45 jacks and an SC socket for the connection of end devices
or other network segments.

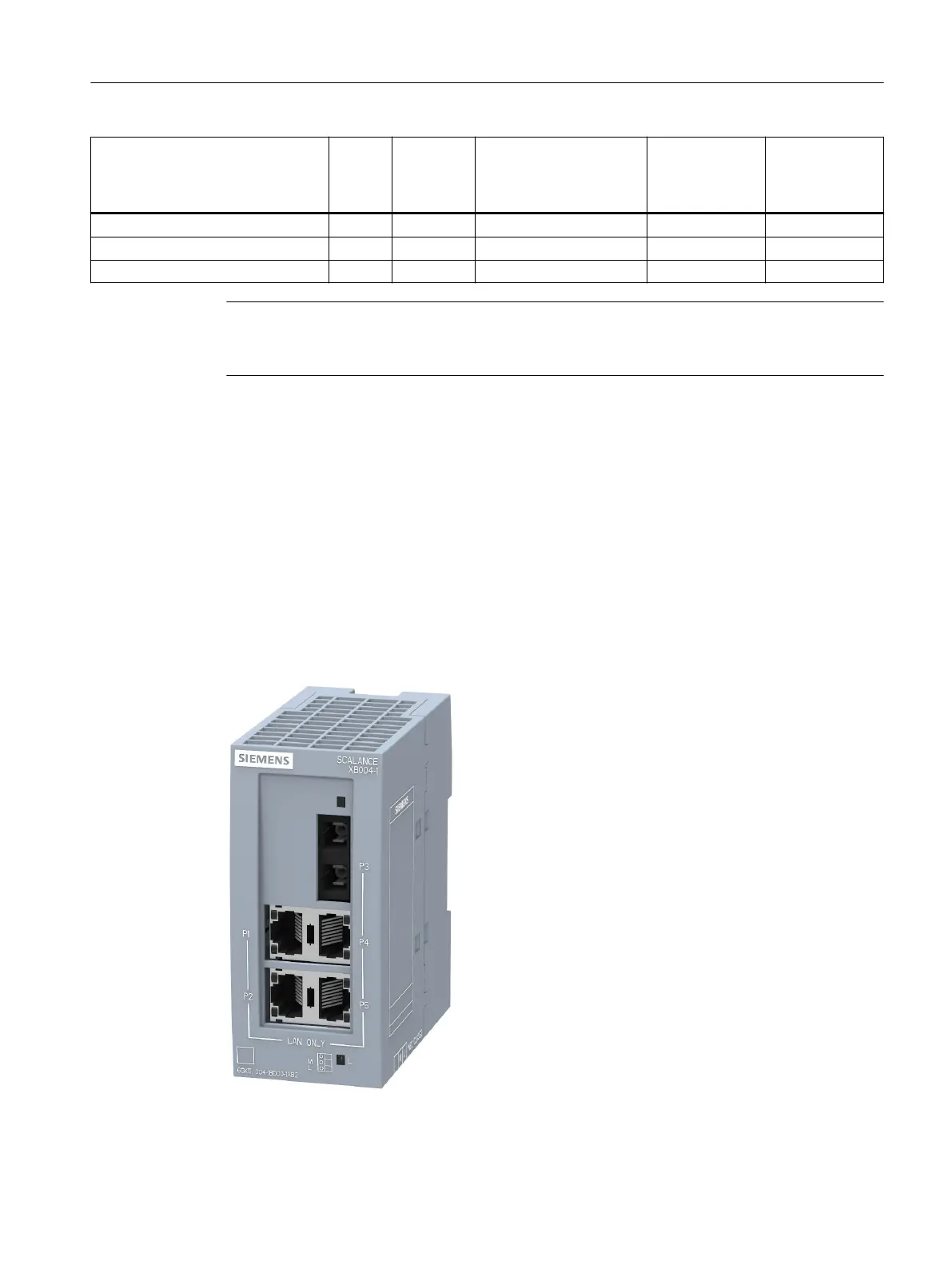

Figure 4-1 SCALANCE XB004-1
Description of the device
4.3 Product properties and device views
SCALANCE XB-000
Operating Instructions, 01/2022, A2B00077300-11 17
