5.3 Fixing onto standard mounting rails
Mounting
To install the device on a 35 mm DIN rail, follow the steps below:
1. Place the housing guide of the device on the top edge of the DIN rail.
2. Push the device down against rail until it locks in place.

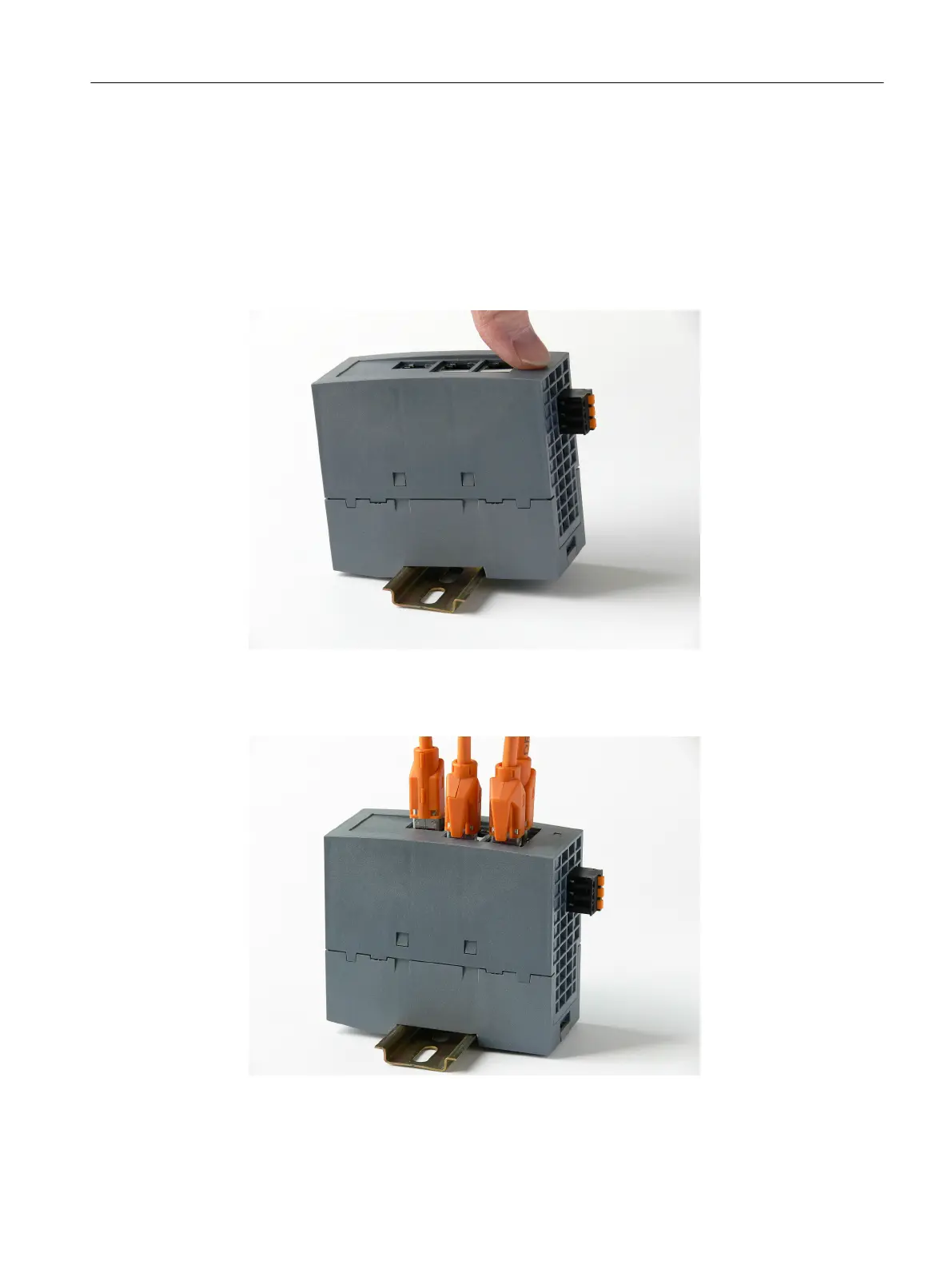

Figure 5-1 Installation on a 35 mm DIN rail
3. Fit the connectors for the power supply. See also section "Power supply (Page 49)"
4. Insert the terminal block into the sockets on the device.
Figure 5-2 SCALANCE XB-000 mounted on the 35 mm DIN rail
