4.3.4 SCALANCE XB004-2LD
Possible connections
The SCALANCE XB004-2LD has four RJ-45 jacks and two SC sockets for the connection of end
devices or other network segments.

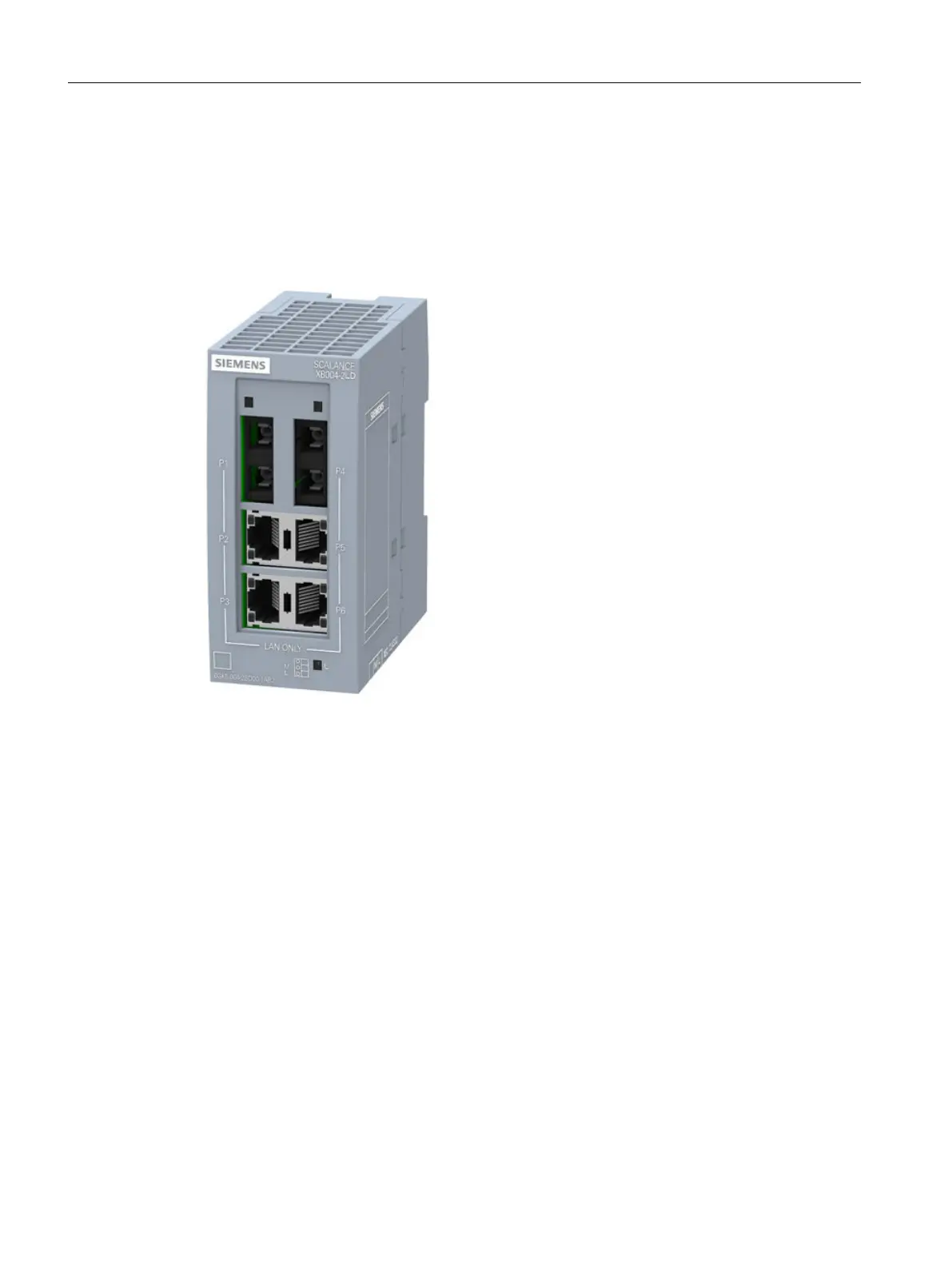

Figure 4-4 SCALANCE XB004-2LD
Description of the device
4.3 Product properties and device views
SCALANCE XB-000
20 Operating Instructions, 01/2022, A2B00077300-11
