4.3.6 SCALANCE XB008
Possible connections
The SCALANCE XB008 has eight RJ-45 jacks for the connection of end devices or other network
segments.

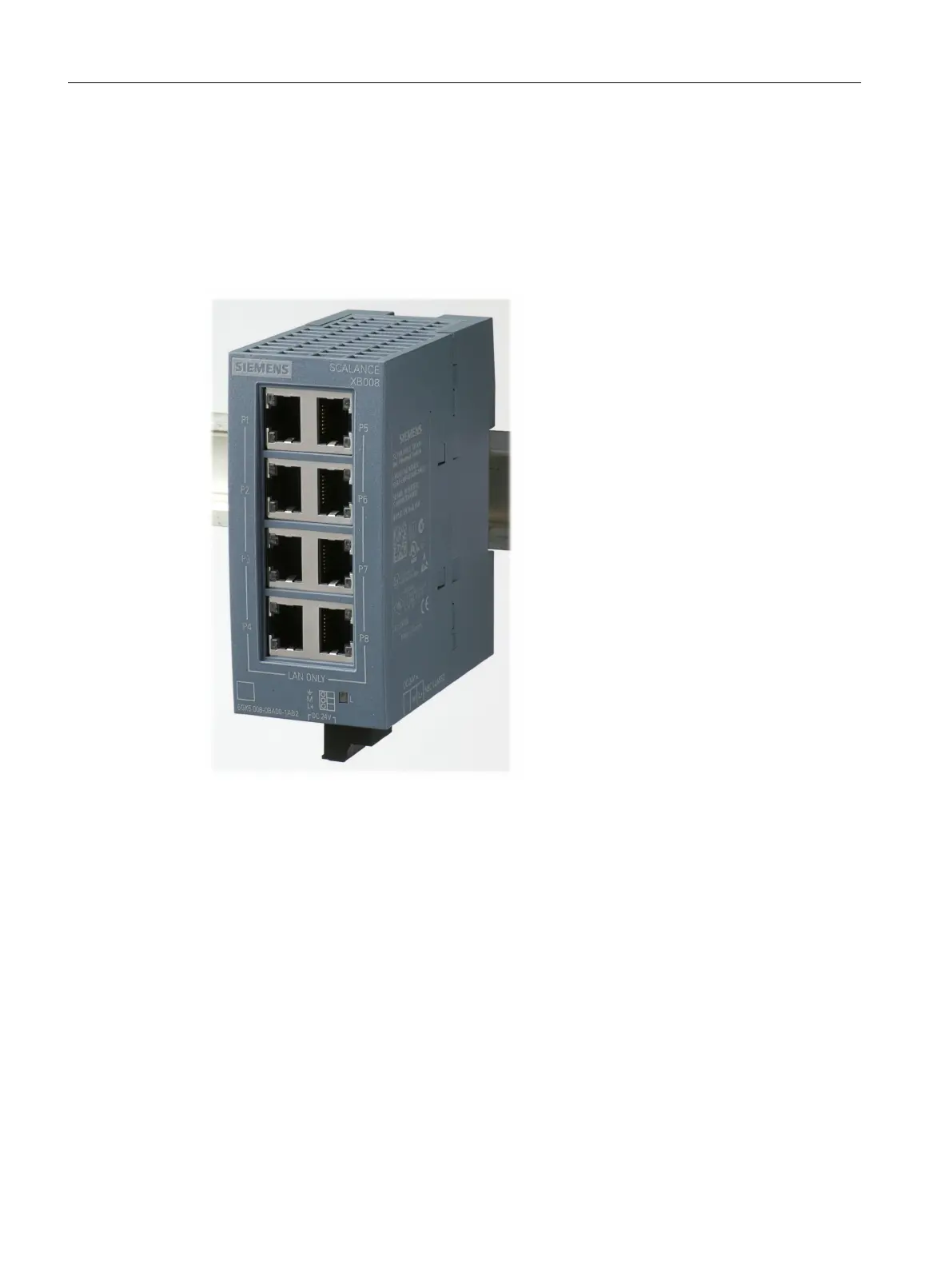

Figure 4-6 SCALANCE XB008
Description of the device
4.3 Product properties and device views
SCALANCE XB-000
22 Operating Instructions, 01/2022, A2B00077300-11
