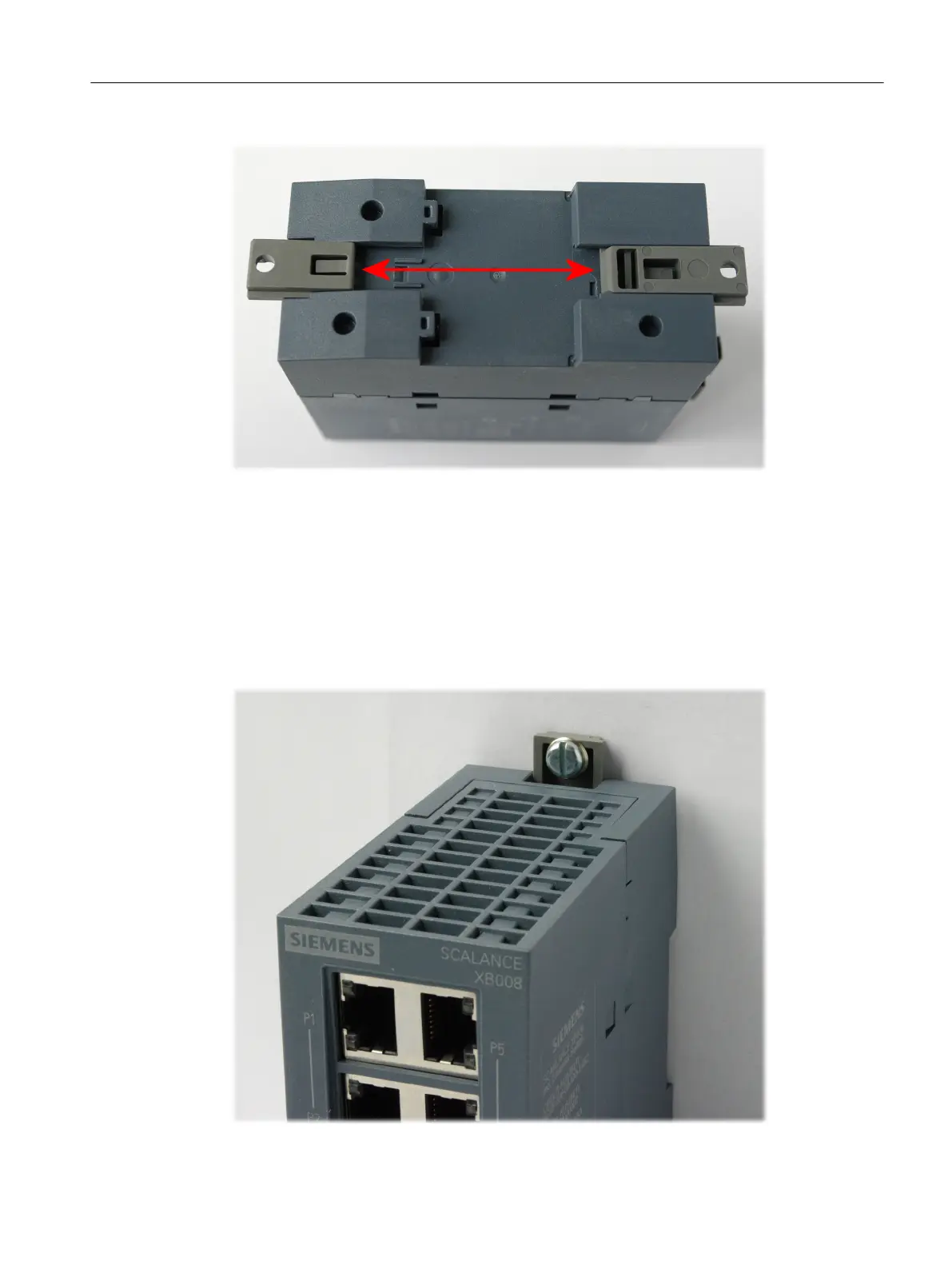

Figure 5-4 Preparation for wall mounting
1. Push out the two catches on the rear of the device.
2. Prepare the drill holes for wall mounting. For the precise dimensions, refer to the section
"Dimension drawings (Page 89)".
3. Fit the connectors for the power supply. See also section "Power supply (Page 49)".
4. Insert the terminal block into the socket on the device.
5. Screw the device to the wall.
Figure 5-5 Wall mounting of the SCALANCE XB-000
Assembly and disassembly
5.4 Wall mounting
SCALANCE XB-000
Operating Instructions, 01/2022, A2B00077300-11 43
