Fitting the IE FC RJ45 Plug 180 to the IE FC Standard Cable
You will nd the notes on installation in the instructions that ship with the IE FC RJ45 Plug 180.

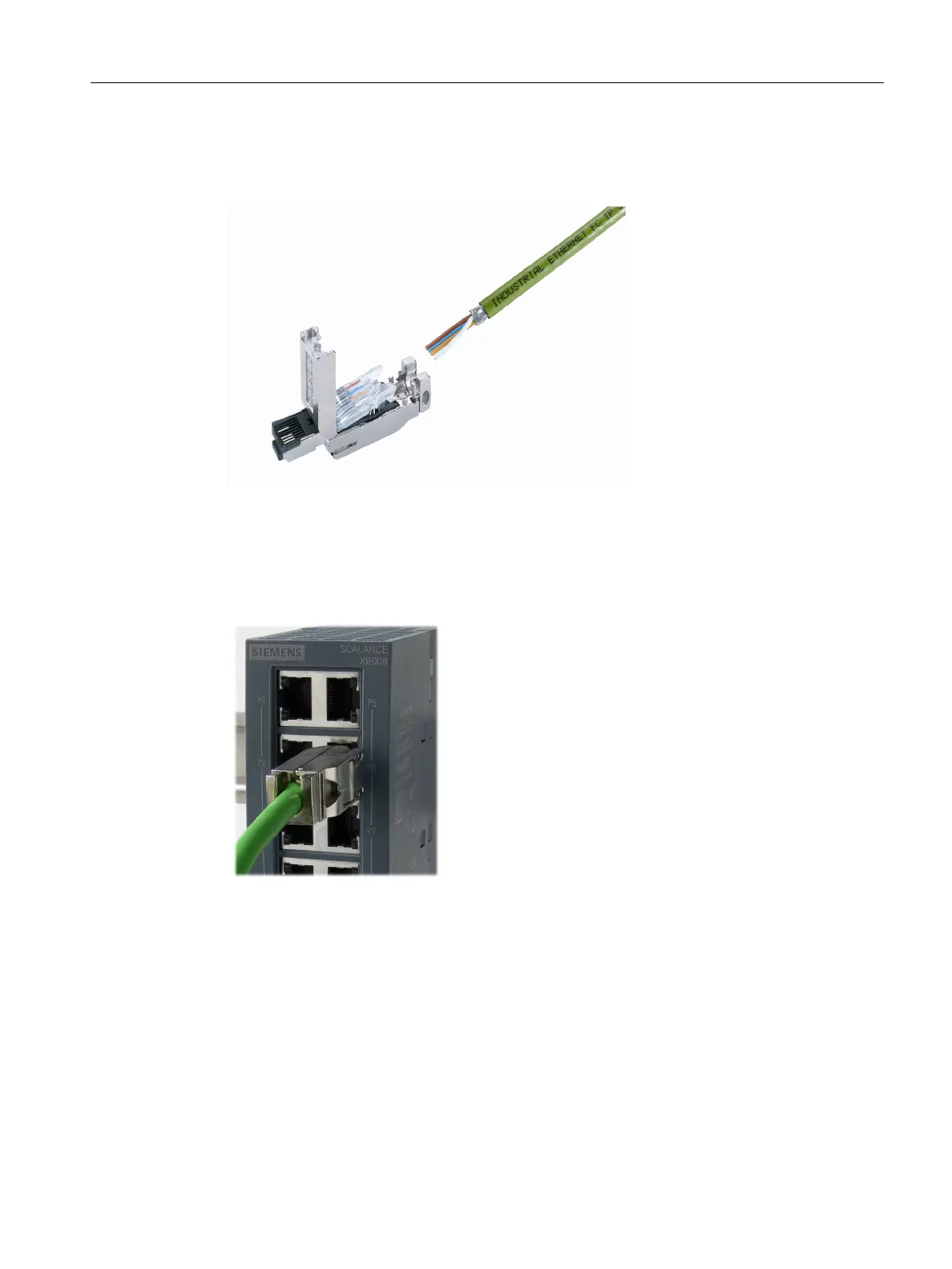

Figure 6-1 IE FC 45 Plug 180
Plugging in the IE FC RJ45 Plug 180
Plug the IE FC RJ45 Plug 180 into the twisted-pair port of the device until it locks in place.
Figure 6-2 Plugging in the IE FC RJ45 Plug 180
When using Ethernet cables with IE FastConnect RJ-45 plugs on devices without securing collars,
the cables must be supported on a cable guide close to the device.
Pulling the IE FC RJ45 Plug 180
Press on the locking lever of the IE FC RJ45 Plug 180 gently to remove the plug.
If there is not enough space to release the lock with your hand, you can also use a 2.5 mm
screwdriver. You can then remove the IE FC RJ45 Plug 180 from the RJ-45 jack.
Connecting up
6.6 IE FC RJ-45 Plug 180
SCALANCE XB-000
Operating Instructions, 01/2022, A2B00077300-11 53
