Description of the device
2.2 Device views
SCALANCE XB-200
14 Operating Instructions, 09/2015, C79000-G8976-C359-03
2.2.2
Device view of a SCALANCE XB205-3

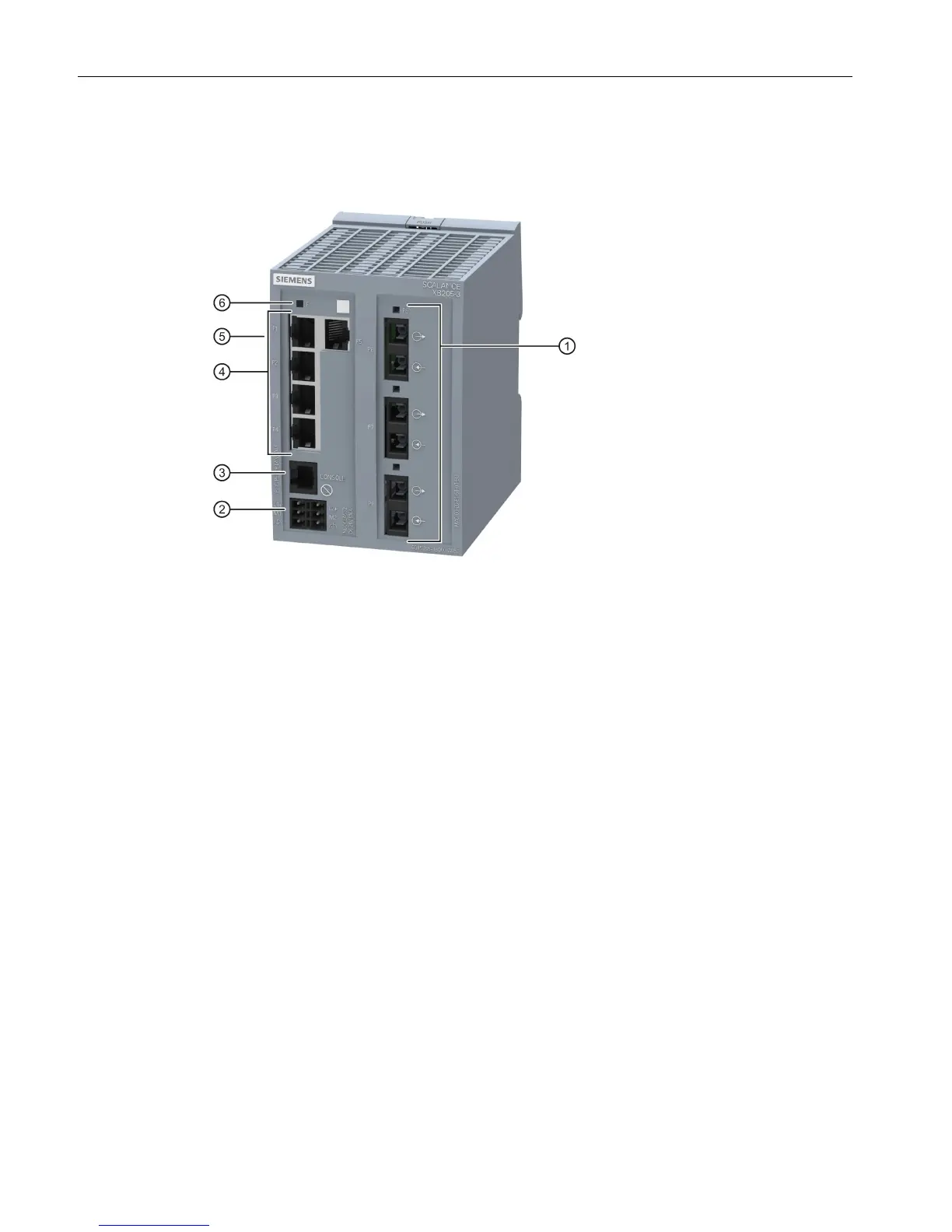

The following figure shows an overview of the components of the SCALANCE XB205-3.
①
Optical ports with port LEDs
②
Power supply with connector for grounding
③
Serial interface
④
Electrical ports with port LEDs
⑤
"RESET" button (rear)
⑥
Fault LED
