Connecting up
5.2 Industrial Ethernet
SCALANCE XR-300WG
Operating Instructions, 05/2017, C79000-G8976-C454-01
39

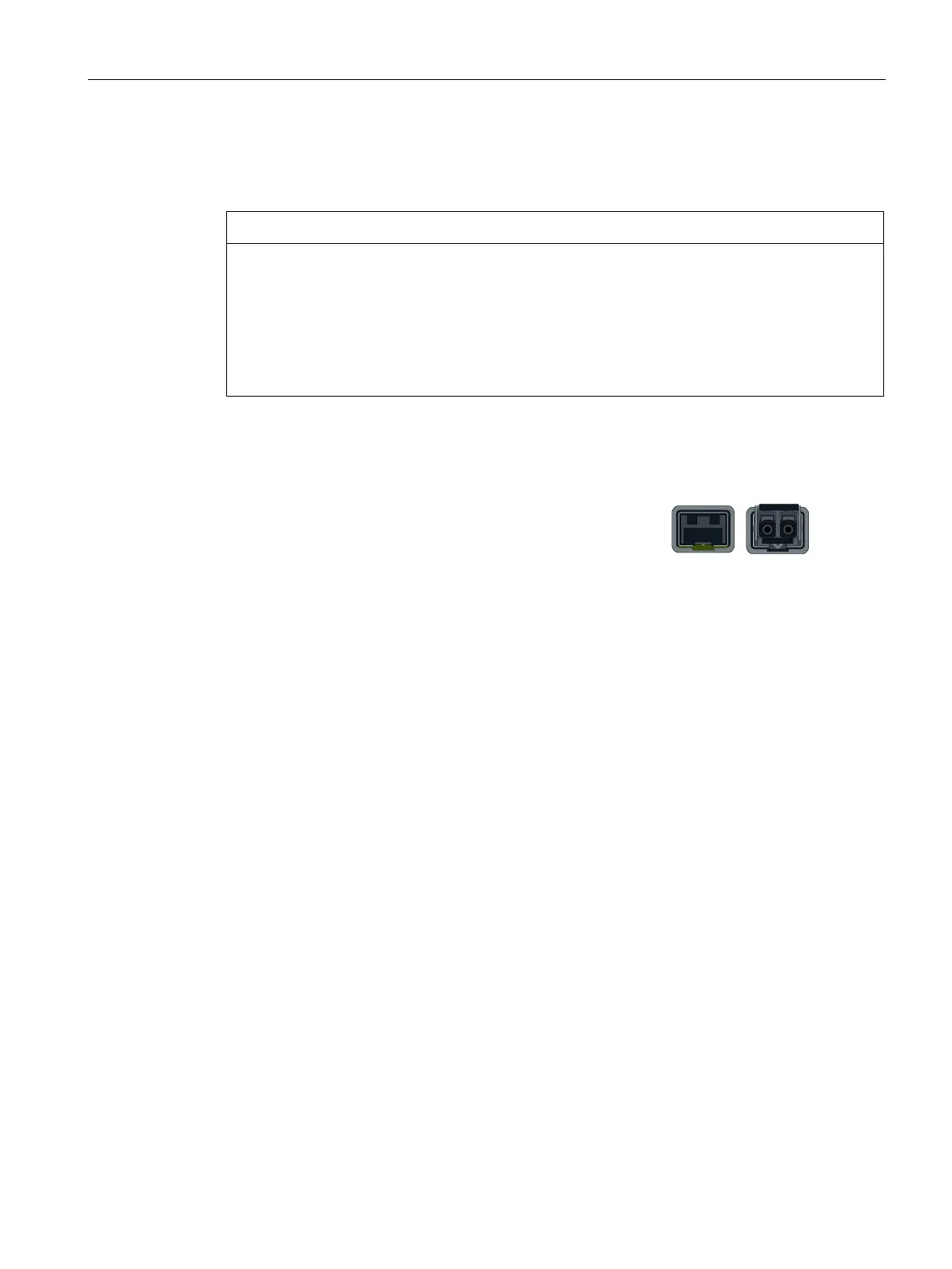

Failure of the data traffic due to contamination of optical plug-in connections
Optical sockets and plugs are sensitive to contamination of the end face. Contamination
can lead to the failure of the optical transmission network.
Close unused optical sockets and plugs as well as pluggable transceivers and slots with the
supplied protective caps.
Remove the protective caps only immediately before you use the plug-in connection.
The device has a pluggable transceiver slot. The attac
h-
ment to Industrial Ethernet uses LC connector technology
(Lucent Connector).
ansceiver slot/
