Siemens Application Guide «Fire Mode» CM1A5192en_01
Building Technologies Introduction 23.10.2007
Once ESM is activated, “ES“ is displayed on the SED2 BOP (Basic operating
Panel). ESM activation can also be assigned to one of the relays of the SED2.
The SED2 firmware offers ESM as a standard feature which can be enabled via a
parameter and also appropriately parameterized. We envisage a number of typical

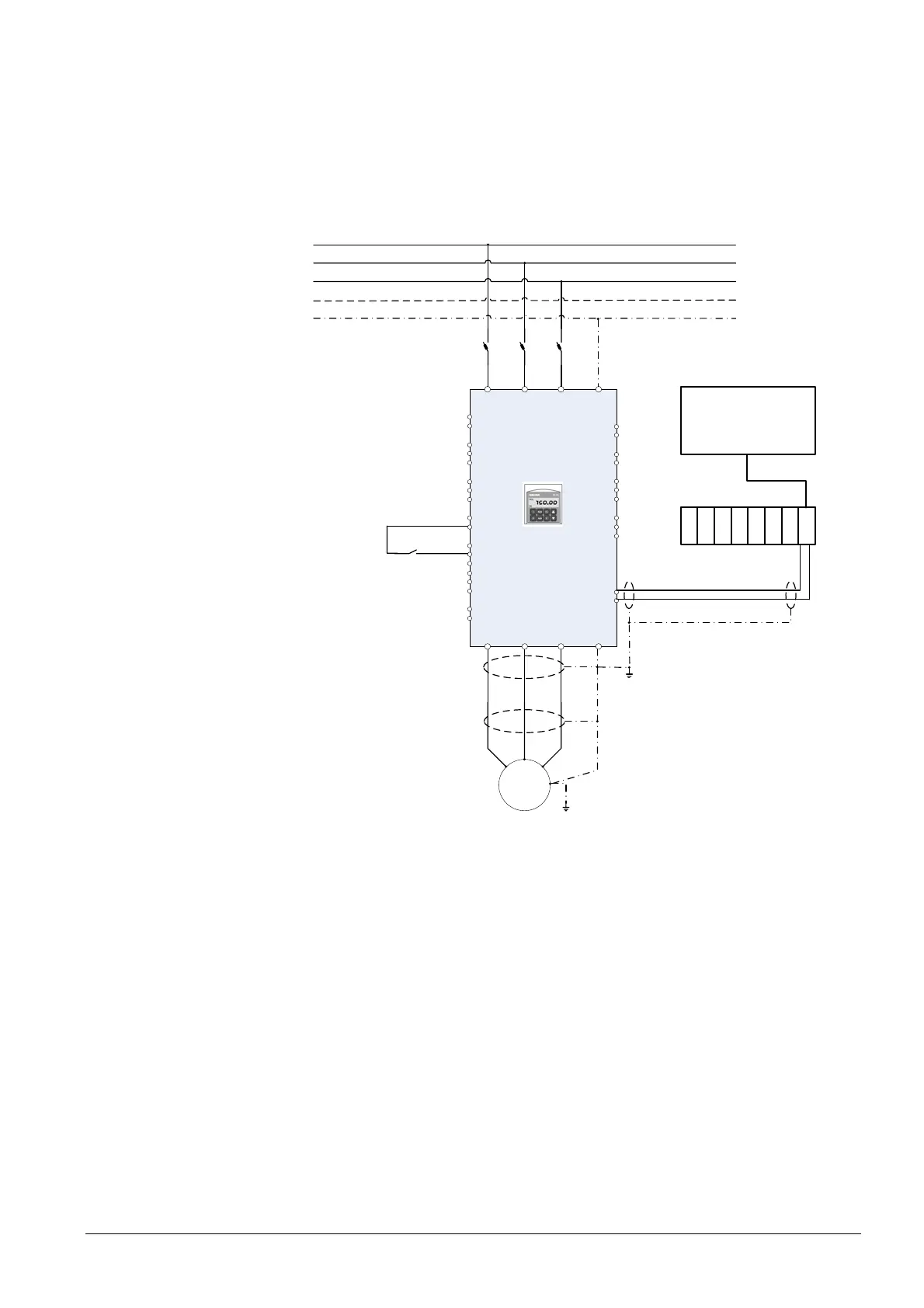

applications for the ESM function. The following example shows a typical SED2
application in a shopping mall, including ESM:
L1 L2 L3
UVW
PE
PE
DC 10V
DC 0V
AIN2
11
10
2
28
9
DC 0V
DC 24V
AIN1
4
3
2
5
6
7
8
16
17
14
15
PTC
PTC
DIN1
DIN2
DIN3
DIN4
DIN5
DIN6
1
2
12
13
26
27
AOUT1
AOUT2
DOUT1
20
21
22
DOUT2
23
24
25
29
30
RS-485
SED2
L1
L2
L3
N
PE
F1 F1F1
M
Alarm Control Panel
Desigo PX
PTE-
SED2
Several air handling plants are installed in a shopping center, using several
SED2 for the supply and extract air fans
In normal operation, the Desigo system delivers the switch-on command and
setpoint to the VSD via bus
If the fire alarm center activates ESM, the SED2 will start to operate with the
maximum speed at 50 Hz and suppresses the protective functions and error
messages as described above
The plant will switch to overpressure operation in order to keep the rooms free
from smoke
Application example of
ESM
