Siemens SED2 Application Guide

39 / 44
Siemens Application Guide «Fire Mode» CM1A5192en_01
Building Technologies Essential Service Mode (in-depth information) 23.10.2007

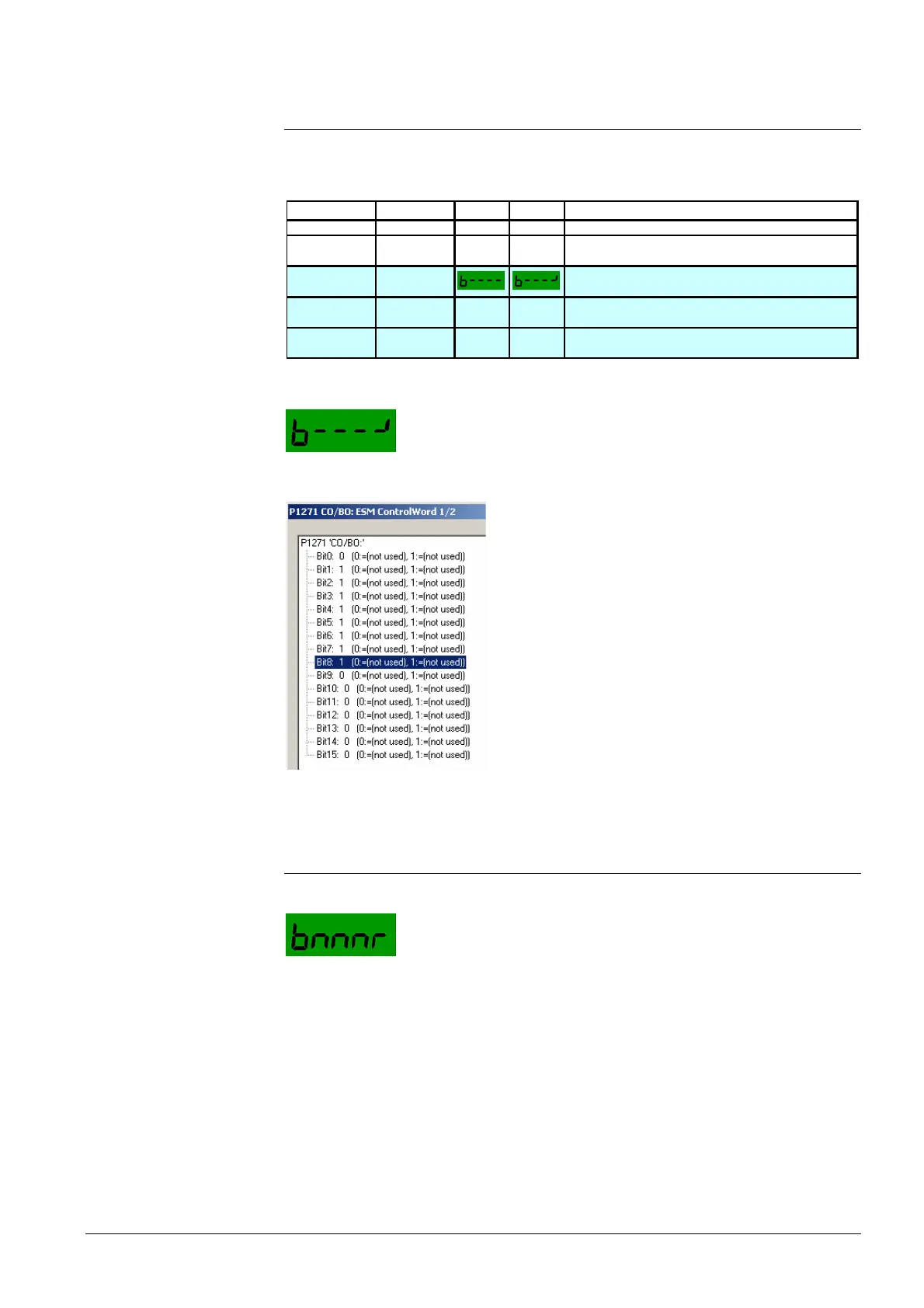

6.5.3 PID Control in ESM/Fire Mode but
disabled in standard Mode
PID control in normal operation mode is switched off. P2200in000=0.0
All other PID parameters are set to suit application ESM/Fire Mode:
Parameter Index Default Set to Function and description
P0003 - 1 3
A
ccess Level
Set access level to Expert
P1271 in001
Activate bit 08 and de-activate bit12 to enable PID in ESM
P2200 in000 0.0 0.0 PID Controller
leave setting at 0.0 to disable main PID controller
P2xxx Configure PID related parameters
P2201~P23xx accordingly to application
Display of P1271 in001 (ESM Control word 2) on the BOP
Alternatively, use EasyComm to set the correct bit.
6.5.4 PID Control disabled in ESM/Fire Mode
and Standard mode
Leave P2200 at factory default (0.0) and leave P1271 in000 bit08 inactive.

Siemens SED2 Specifications

General

Input Voltage	380-480V AC
Current Rating	Depends on model
Control Type	Digital
Communication	PROFIBUS, PROFINET, Ethernet
Communication Interface	RS485
Protection Features	Overcurrent, overvoltage, undervoltage, overtemperature, short circuit
Operating Temperature	0 to +45 °C
Storage Temperature	+70 °C
