Siemens Application Guide «Fire Mode» CM1A5192en_01
Building Technologies Application Examples 23.10.2007
4.5 Application Example 5
4.5.1 Description
In normal operation the internal SED2 PID loop is working and managing the
pressure e.g. in a stairway. This application is equivalent to application 4 in the
Commissioning Guide CM1G5192 just enhanced with the ESM function.
In case of fire the fire control panel signals this to the SED2, it is going in the
ESM mode and the internal PID loop keeps on working.

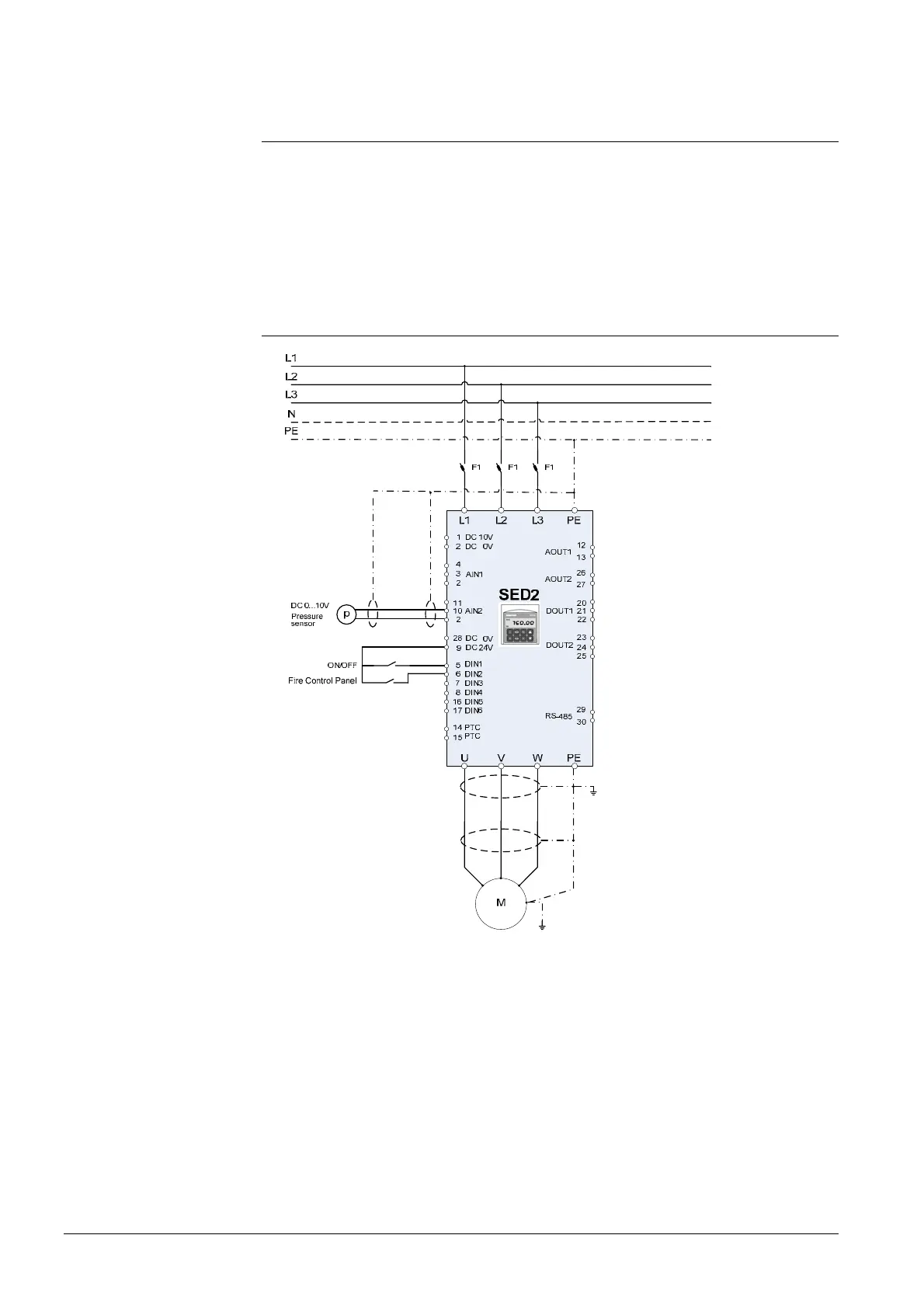

4.5.2 Wiring diagram
