Siemens SED2 Commissioning Guide

18 / 100
Siemens Commissioning Guide CM1G5192en
Building Technologies 5 Electrical installation 29.07.2010

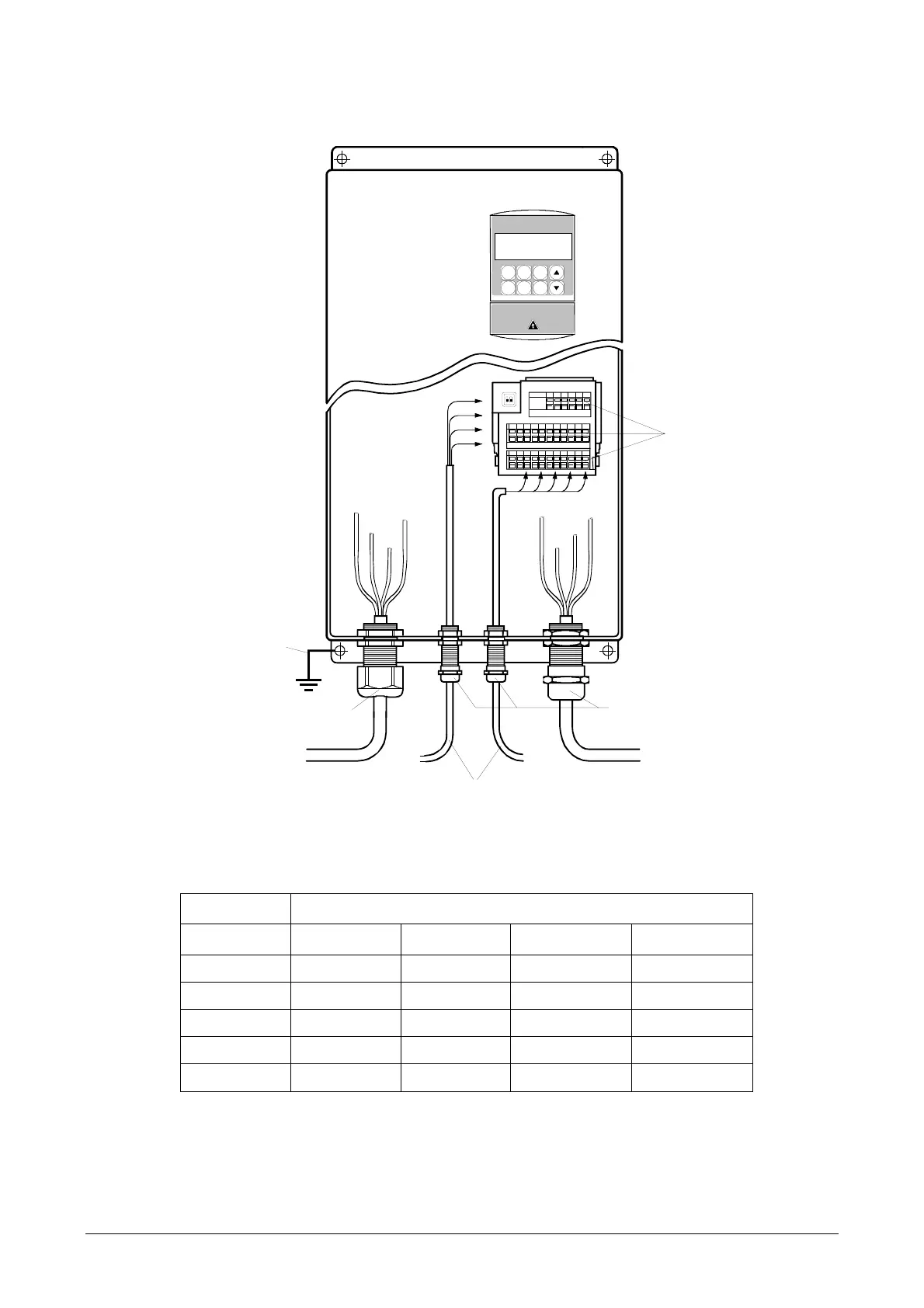

5.1 Wiring SED2 IP54
5.1.1 Cabling SED2 IP54 of frame sizes D…F
U
V
PE
L2
L1
L3
PE W
I/O terminals
Metal cable glands only
Metal or plastic cable glands
5192Z44en
Motor cable shielded
Signal and control cables shielded
Potential equalization
Mains cable
5.1.2 Dimensions of cable entries in the gland plates of SED2 IP54
Number of entries
Frame size 20.0 mm dia. 25.0 mm dia. 40.0 mm dia. 63.0 mm dia.
B
4 2 – –
C
4 2 – –
D
- 2 2 –
E
- 2 2 –
F
- 2 – 2

Siemens SED2 Specifications

General

Input Voltage	380-480V AC
Current Rating	Depends on model
Control Type	Digital
Communication	PROFIBUS, PROFINET, Ethernet
Communication Interface	RS485
Protection Features	Overcurrent, overvoltage, undervoltage, overtemperature, short circuit
Operating Temperature	0 to +45 °C
Storage Temperature	+70 °C
