Unpack and connect the device
2.5 Rear interfaces
Flat Panel
Operating Instructions (Compact), 09/2008, A5E02313712-01
11
Interfaces (extended version)
Position Name Description
(1) DVI-D Digital DVI connection
(2) VGA Analog VGA connection
(3) USB link (> 5 m) USB computer interface (RJ45 type)
Is connected to the USB transmitter module when the distance
exceeds 5 m.
(4) USB out Interfaces from the USB hub for external devices (type A)
(5) USB in (≤ 5 m) USB computer interface (type B)
Is connected to the computer unit when the distance is ≤ 5 m.
(6) 24 V DC 24 V DC power supply
(7) 100 ... 240 V AC 230 V AC power supply

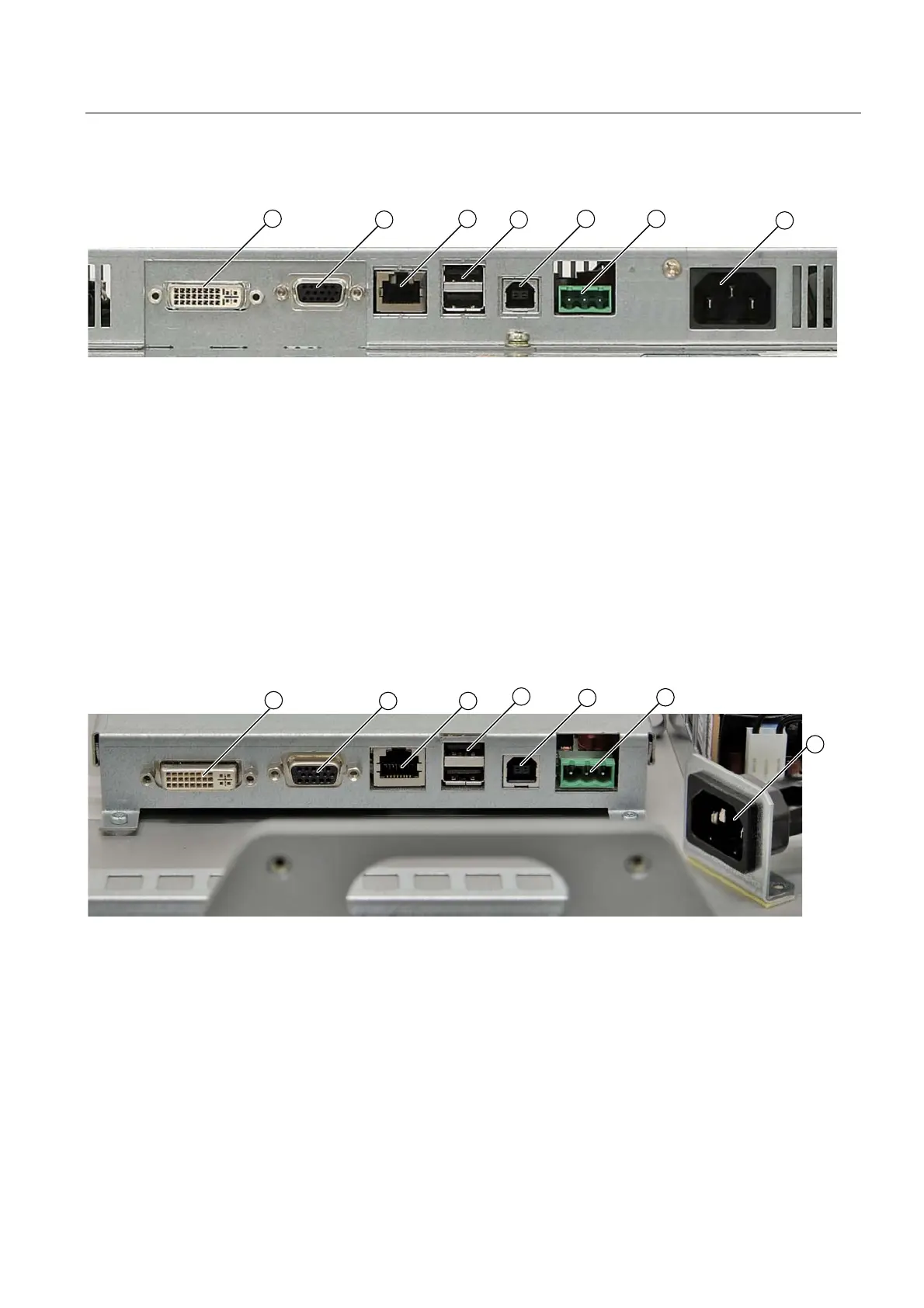

Figure 2-3 Arrangement of the interfaces (extended version)
Interfaces (Flat Panel PRO version)
Position Name Description
(1) DVI-D Digital DVI connection
(2) VGA Analog VGA connection
(3) USB link (> 5 m) USB computer interface (RJ45 type)
Is connected to the USB transmitter module when the distance
exceeds 5 m.
(4) USB out Interfaces from the USB hub for external devices (type A)
(5) USB in (≤ 5 m) USB computer interface (type B)
Is connected to the computer unit when the distance is ≤ 5 m.
(6) 24 V DC 24 V DC power supply
(7) 100 ... 240 V AC 230 V AC power supply
Figure 2-4 Arrangement of the interfaces (Flat Panel PRO version)
