Unpack and connect the device
2.4 Make note of identification data
Flat Panel
10 Operating Instructions (Compact), 09/2008, A5E02313712-01
2.4 Make note of identification data
Procedure
Enter the serial and order number in the table. Devices that need to be repaired are
identified based on these numbers.

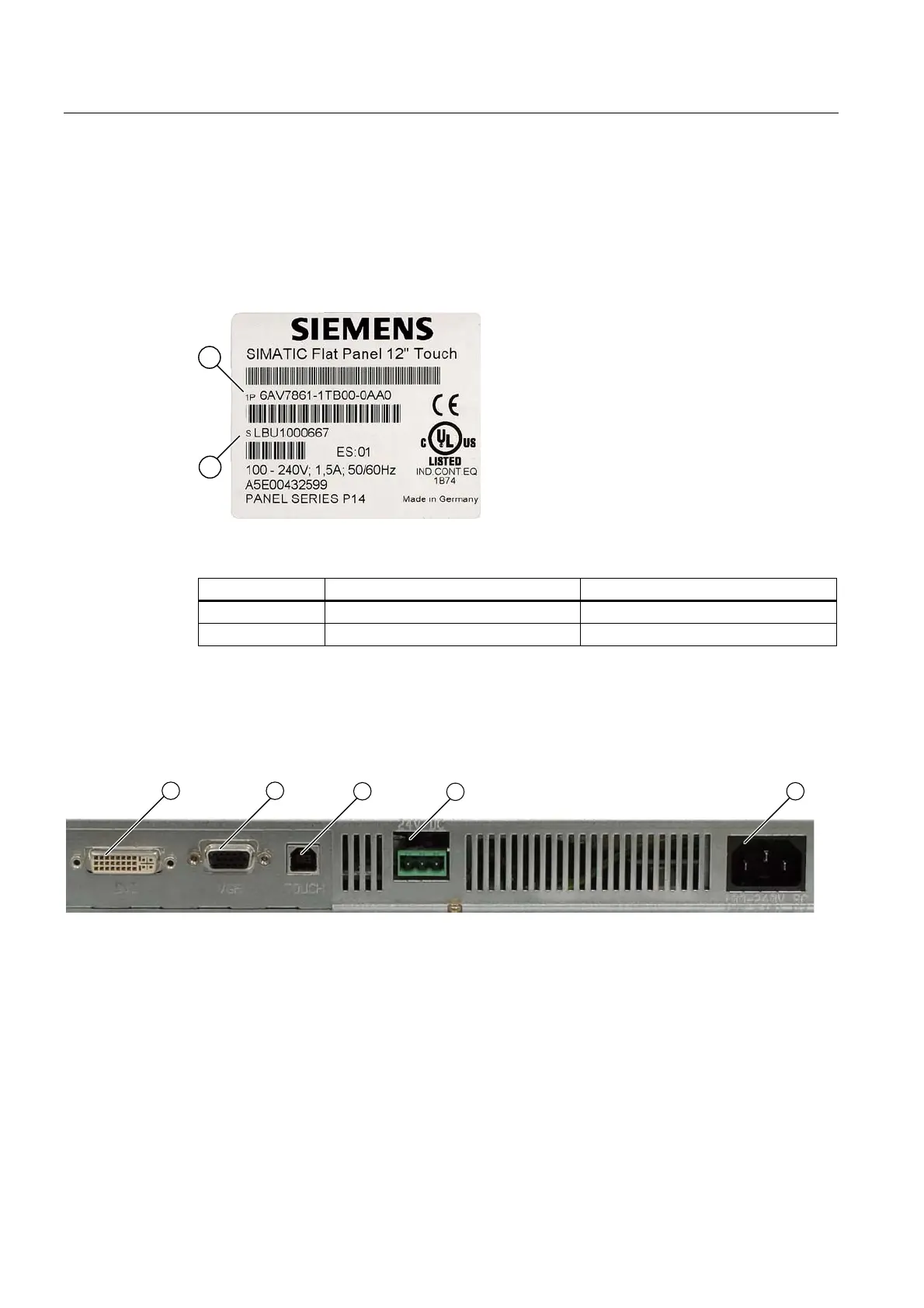

Figure 2-1 Rating plate
Existing number
(1) Serial number
(2) Order number
2.5 Rear interfaces
Interfaces
*1'
Position Name Description
(1) DVI Digital DVI connection
(2) VGA Analog VGA connection
(3) USB
(with Touch screen option)
USB connection for Flat Panels with Touch screens
(4) 24 V DC
(the 230 V AC version is closed by a
cover plate)
24 V DC power supply
(5) 230 V AC
(the 24 V DC option is closed by a cover
plate)
230 V AC power supply
IEC power connector for the AC power supply to the device
Figure 2-2 Arrangement of the ports
