Unpack and connect the device
2.6 Connecting the Cables
Flat Panel
Operating Instructions (Compact), 09/2008, A5E02313712-01
13
Procedure when the distance is > 5 m (extended and PRO version)

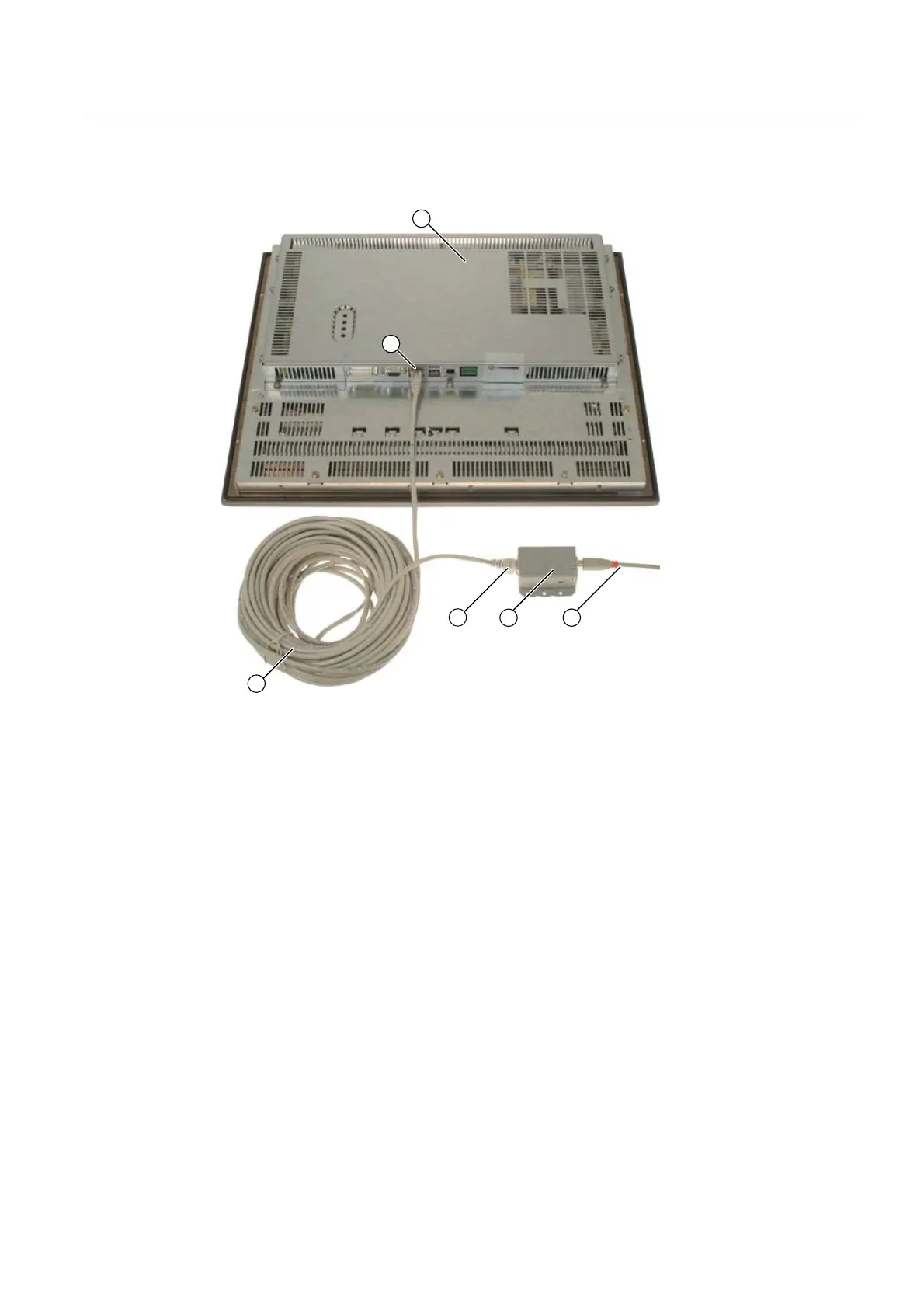

Figure 2-5 Cable connection
(1) Long connecting cable
(2) USB link on the control unit
(3) Operating unit
(4) USB-connection on the USB transmitter module
(5) USB-transmitter module
(6) Short connecting cable
1. Plug the female connector of the long USB connecting cable (1) into the port (2)
(USB link) on the control unit (3).
2. Plug the USB connecting cable (1) into the port (4) () on the USB transmitter module (5).
The control unit is connected to the USB transmitter module.
3. Use the second, short USB connecting cable (6) to connect the USB transmitter module
to the computer unit.
4. Connect the DVI cable to the Flat Panel and the computer unit.
