Siemens SIMATIC BusAdapter User Manual

BusAdapter BA 2xFC
5.2 Connecting
BusAdapter
Equipment Manual, 08/2020, A5E41449003-AB
23
5. Close the cover of the connection element. Then push the locking slide forwards as far as it
will go.
6. Screw the BusAdapter BA 2×FC to the PROFINET device (1 screw with 0.25 Nm tightening
torque). To do this, use a screwdriver with a 3 to 3.5 mm blade, alternatively TX10.
①
Locking slide
③
Shield contact
②
Wire guide
④
PROFINET connecting cable

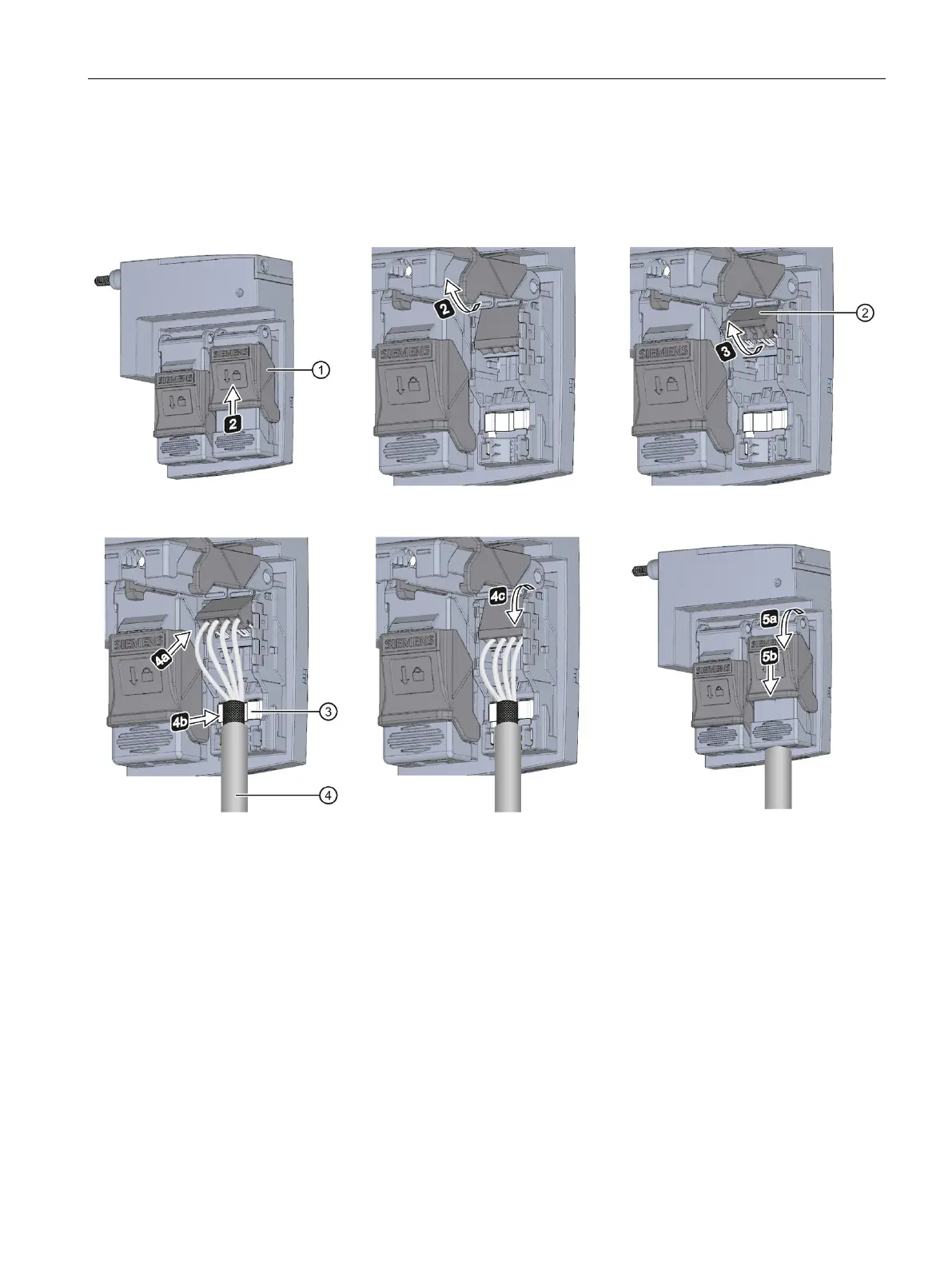

Figure 5-3 Connection of the PROFINET IO BusAdapter BA 2×FC
