Function block
The _ET200S_FC_control function block is provided for the cyclic communication and the
parameter transfer of the ET 200S FC with SIMOTION. This function block is described in this
manual.
Note
The _ET200S_FC_control function block cannot be used to control the ET 200S FC (Article
No.: 6SL3244-0SA00-1AA1). Standard telegram 1 should be used for this frequency converter.
Functionality
The functionality of the _ET200S_FC_control function block and the ET 200S FC is the same
as when used in the SIMATIC S7 automation system. There are differences in the execution
of the data transfer and the handling of the FB.
Possible applications
The ET 200S FC can be operated in a distributed ET 200S station via PROFIBUS DP on a
SIMOTION controller.
Several ET 200S frequency converters can be operated in one ET 200S station. The ET 200S
interface module IM 151-1 is used for the connection to PROFIBUS DP.

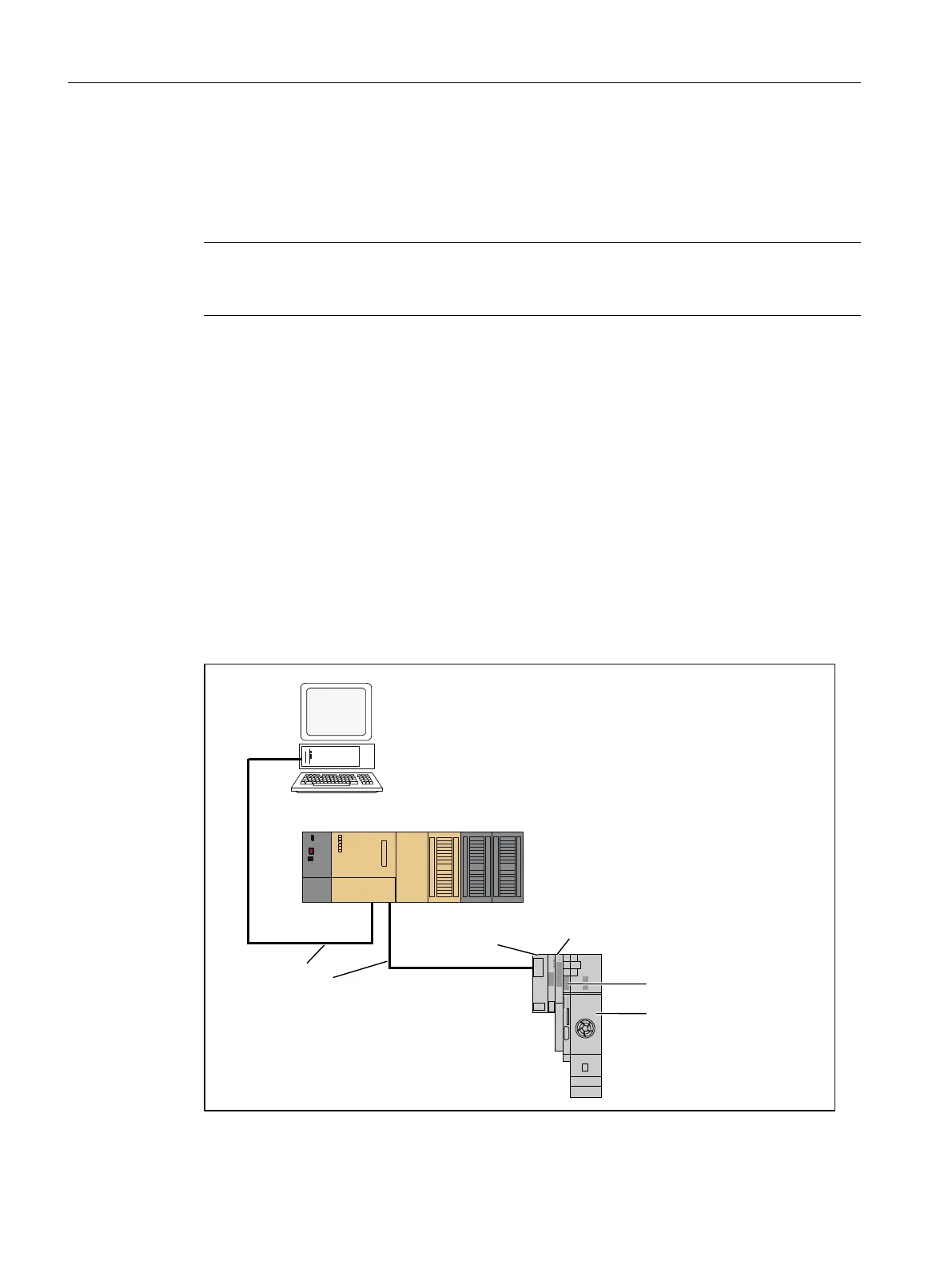

The following figure shows a distributed configuration with SIMOTION C2xx.
3660V
&[[
,0
,&8&RQWURO8QLW
3URJUDPPLQJGHYLFH3&
352),%86'3
3RZHUPRGXOH
6,027,21KDUGZDUHSODWIRUP
HJ&[[
(7b6IUHTXHQF\FRQYHUWHU
3RZHUXQLW
,30)6$
Figure 2-1 Connection of the ET 200S frequency converter to the SIMOTION C2xx device (example)
Description
2.2 Product description
Supplement for the ET 200S frequency converter
10 Function Manual, 01/2015
