Siemens SIMATIC ET 200SP Product Information

Supplements to ET 200SP documentation
2.5 I/O module manuals
Product information on the documentation of the ET 200SP distributed I/O system
Product Information, 02/2021, A5E03799595-BG
51
Manual DQ 4x24..230VAC/2A HF, Edition 02/2018
Section 3.1.1. und 4.1.1 Wiring and block diagram
The following figure shows an example for the pin assignment of the digital output module
DQ 4x24..230VAC/2A HF on the BaseUnit BU type U0 (3-wire connection) in combination
with a potential distribution module and terminal block.
For a 3-wire connection you connect the protective earth (PE) of the actuator to the terminal
block.

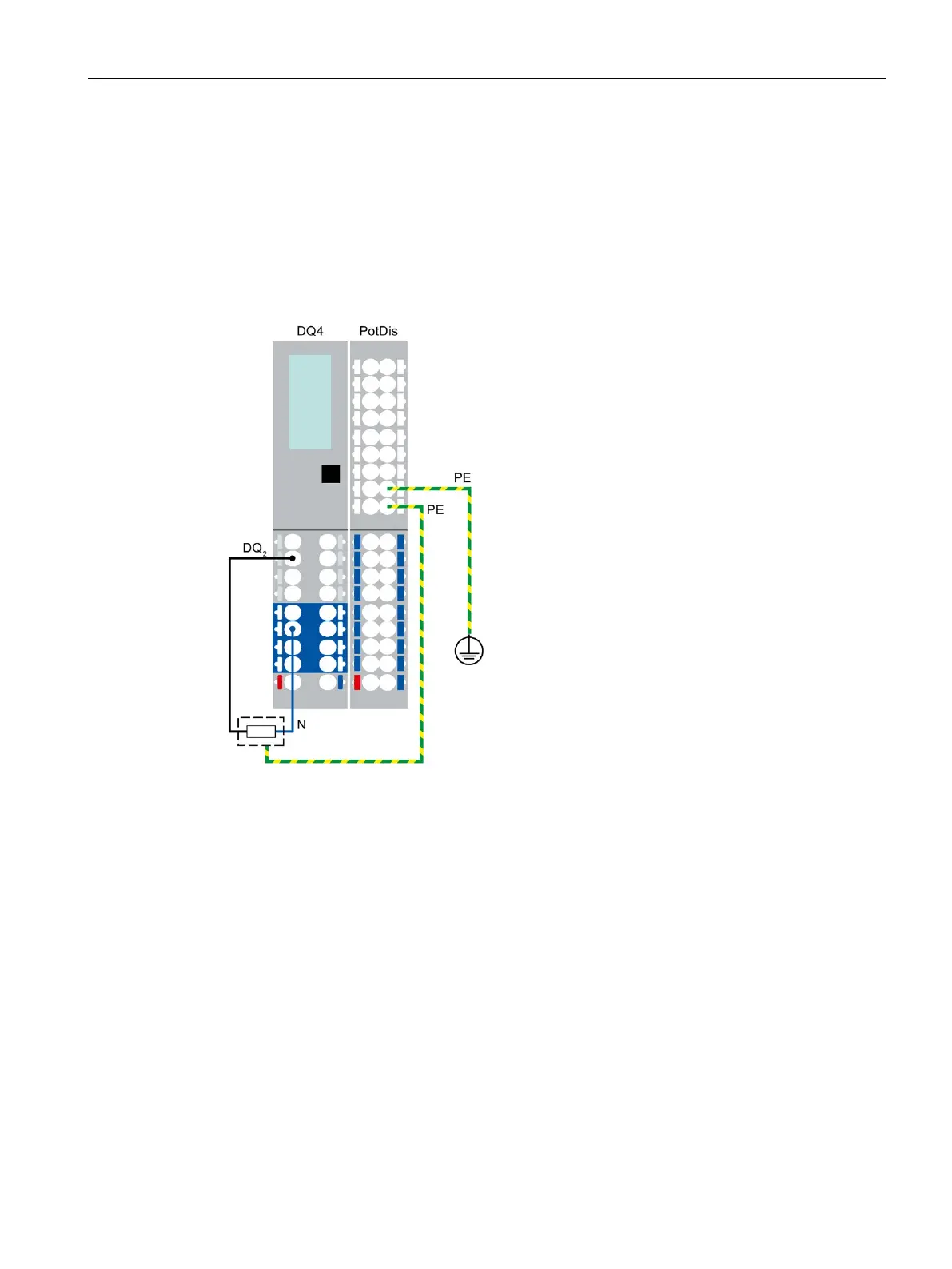

Figure 2-3 3-wire connection of actuators with potential distribution module at the digital output
module DQ 4x24...230VAC/2A HF

Siemens SIMATIC ET 200SP Specifications

General

System Type	Distributed I/O System
Mounting	DIN Rail
Communication Protocol	PROFINET, PROFIBUS
IP Rating	IP20
Category	I/O Systems
Supply Voltage	24 V DC
Modularity	Yes
Hot Swapping	Yes
Storage Temperature	-40°C to +70°C
Digital Inputs	Yes
Digital Outputs	Yes
Analog Inputs	Yes
Analog Outputs	Yes
Communication Interface	PROFINET, PROFIBUS
Number of Modules	Up to 64
Relative Humidity	5 to 95% (non-condensing)
Operating Temperature	-25°C to +60°C
