Siemens SIMATIC ET 200SP Configuration Manual

3 Configuration
SharedDeviceKonfig
Entry ID: 109741600, V1.0, 11/2016
11
 Siemens AG 2016 All rights reserved
Configuring the access to the “Shared Device”
The previously implemented and networked ET 200SP station shall now be
configured as “Shared Device”.
Proceed as follows:
1. In the graphical view, select the ET 200SP station and perform a double click.
Mark the head module to display the properties of the interface module in the
inspector window.
2. In the “modules parameters” menu, select “Shared Device”. Here, you can
determine which IO controller can access the different modules.
Except for the modules “DI 8x24VDC ST_2” and “DQ 8x24VDC/0.5A ST_2”, all
modules are assigned to “PLC_1”. For those that are not assigned, select the
settings “---” in the “Access” column.

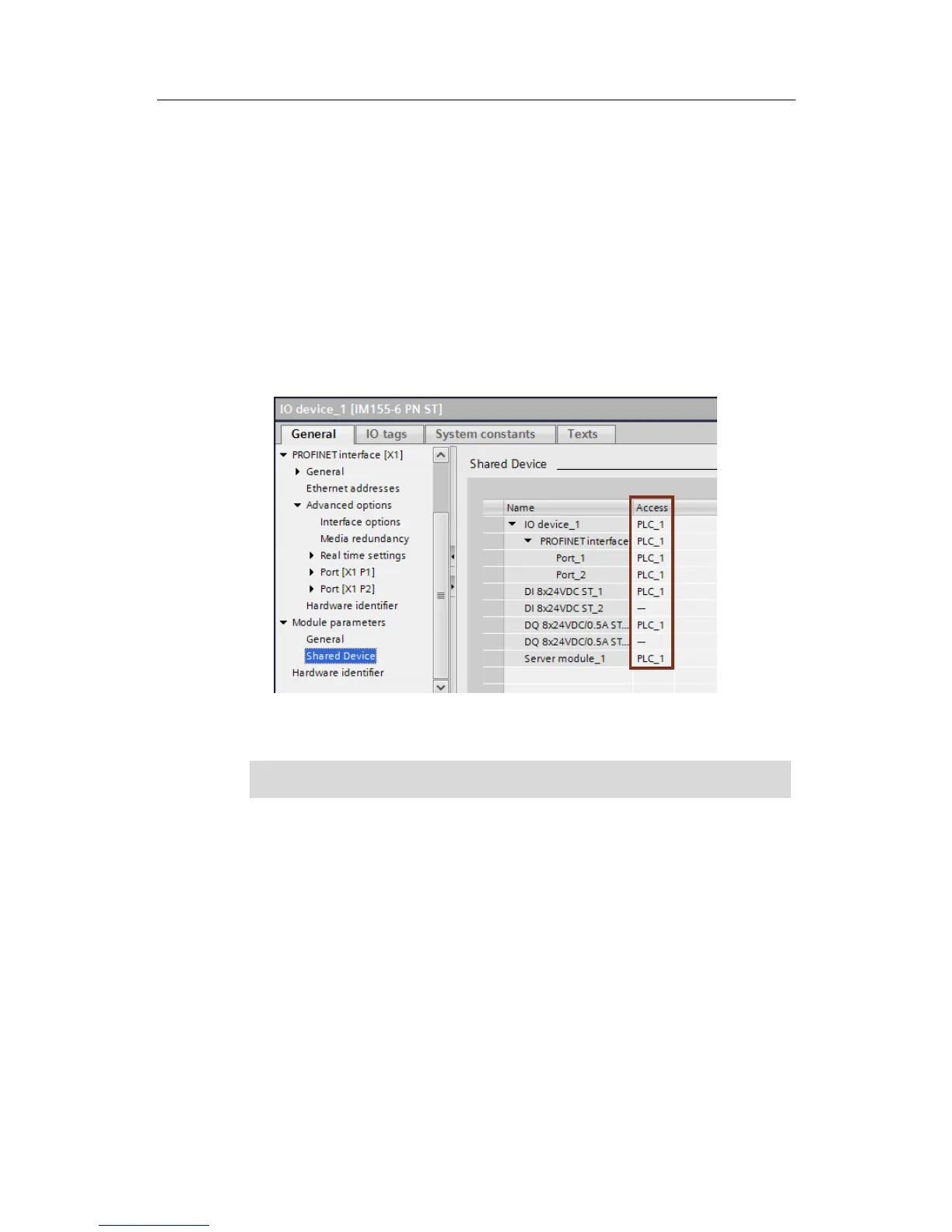

Figure 3-3
Result
The CPU 1516-3 PN/DP has now access to the modules assigned to it.
Note
Make sure that only one IO controller at a time has access to a module.

Siemens SIMATIC ET 200SP Specifications

General

System Type	Distributed I/O System
Mounting	DIN Rail
Communication Protocol	PROFINET, PROFIBUS
IP Rating	IP20
Category	I/O Systems
Supply Voltage	24 V DC
Modularity	Yes
Hot Swapping	Yes
Storage Temperature	-40°C to +70°C
Digital Inputs	Yes
Digital Outputs	Yes
Analog Inputs	Yes
Analog Outputs	Yes
Communication Interface	PROFINET, PROFIBUS
Number of Modules	Up to 64
Relative Humidity	5 to 95% (non-condensing)
Operating Temperature	-25°C to +60°C
