16-7
Equipment Manual OP7, OP17
Release 04/99
Key area for labeling
T ransparent LED window

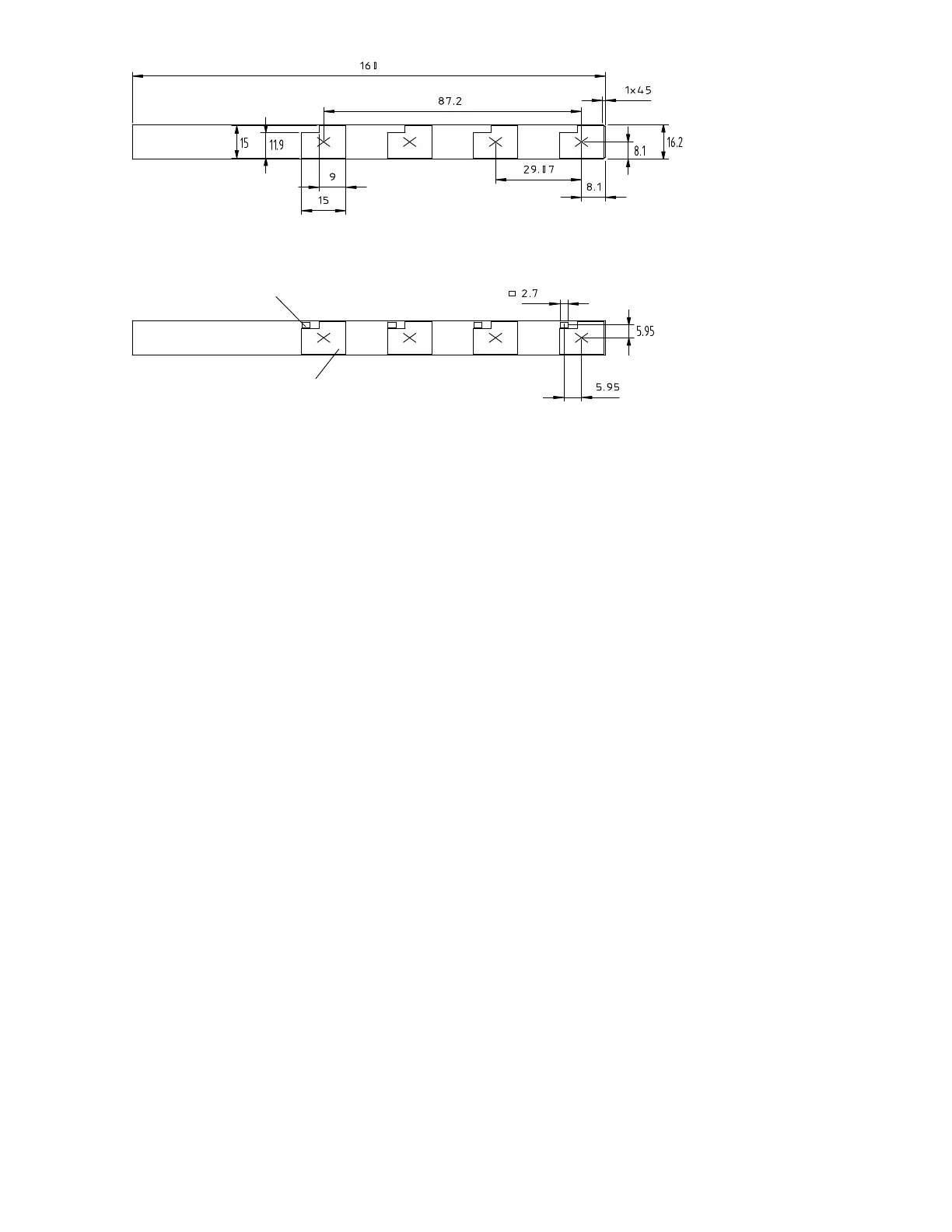

Figure 16-5 Dimensions of Labeling Strips for the OP7
Together with the ProT ool configuration software in the PROTOOL\
UTILITY
folder the W ord files SLIDE_07.DOC and SLIDE_17.DOC
are supplied. The files contain formatted samples of the labeling for function
keys on the OP7 and OP17. This means that you can readily edit and print
your own labeling strips.
