Commissioning the device
4.3 Parameter assignment for Comfort Panel
Comfort Panels
Operating Instructions, 07/2017, A5E36770603-AB
143

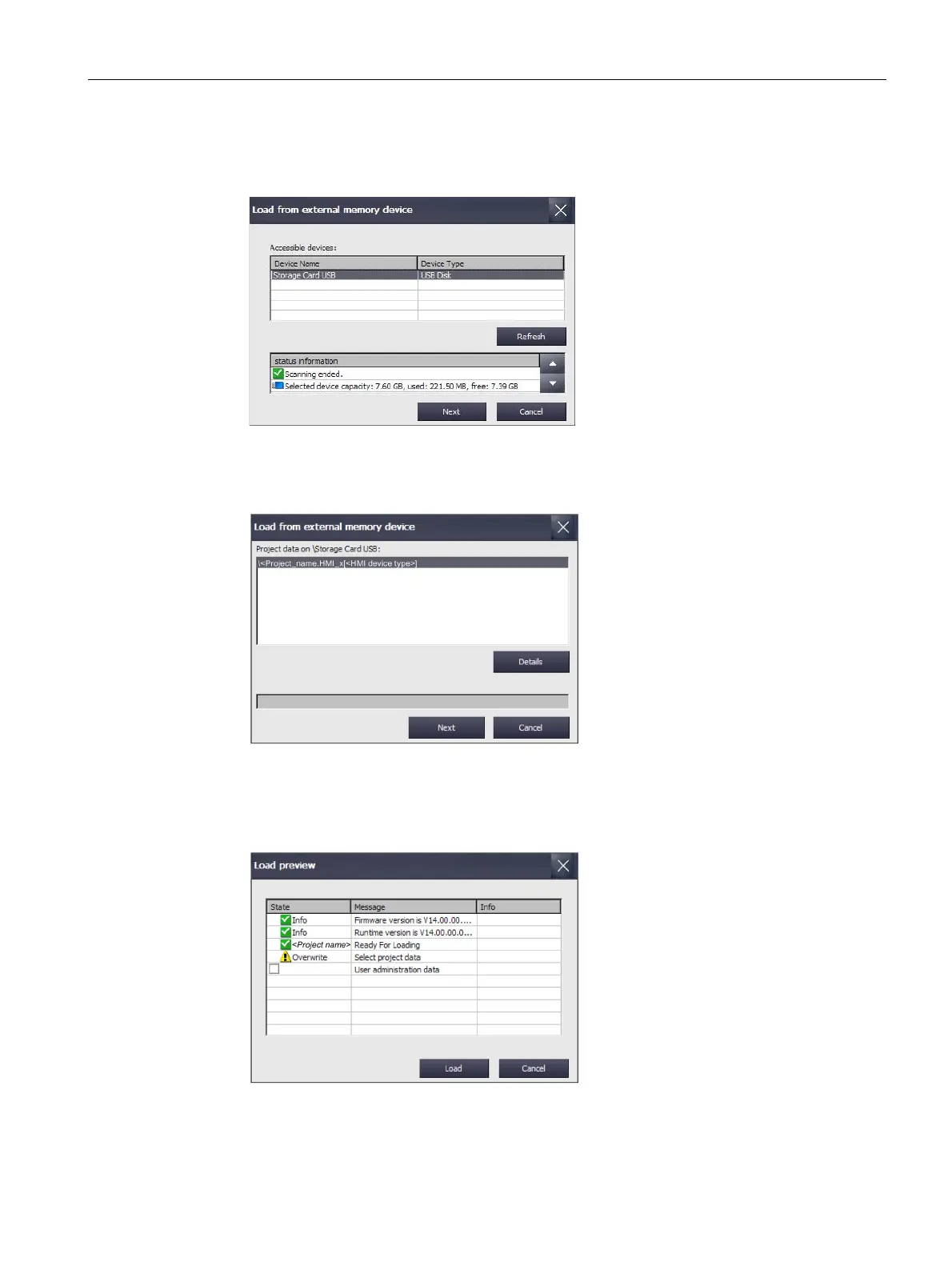

1. Press "Next". The "Load from external memory device" dialog is displayed.
2. Select the storage medium with the project data in the "Accessible devices" group.
3. Press "Next". The projects that are located on the external storage medium are displayed
in the following dialog. The following figure shows an example.
4. Select the project that you want to load into the HMI device. Use "Details" to receive
additional information about the selected project.
5. Press "Next". The HMI device checks whether the project data can be loaded. The result
of the check is displayed in the "Load Preview" dialog.
