Hardware descriptions
10.1 IOT2050 SM: Motherboard
SIMATIC IOT2050
Operating Instructions, 03/2024, A5E39456816-AF
107

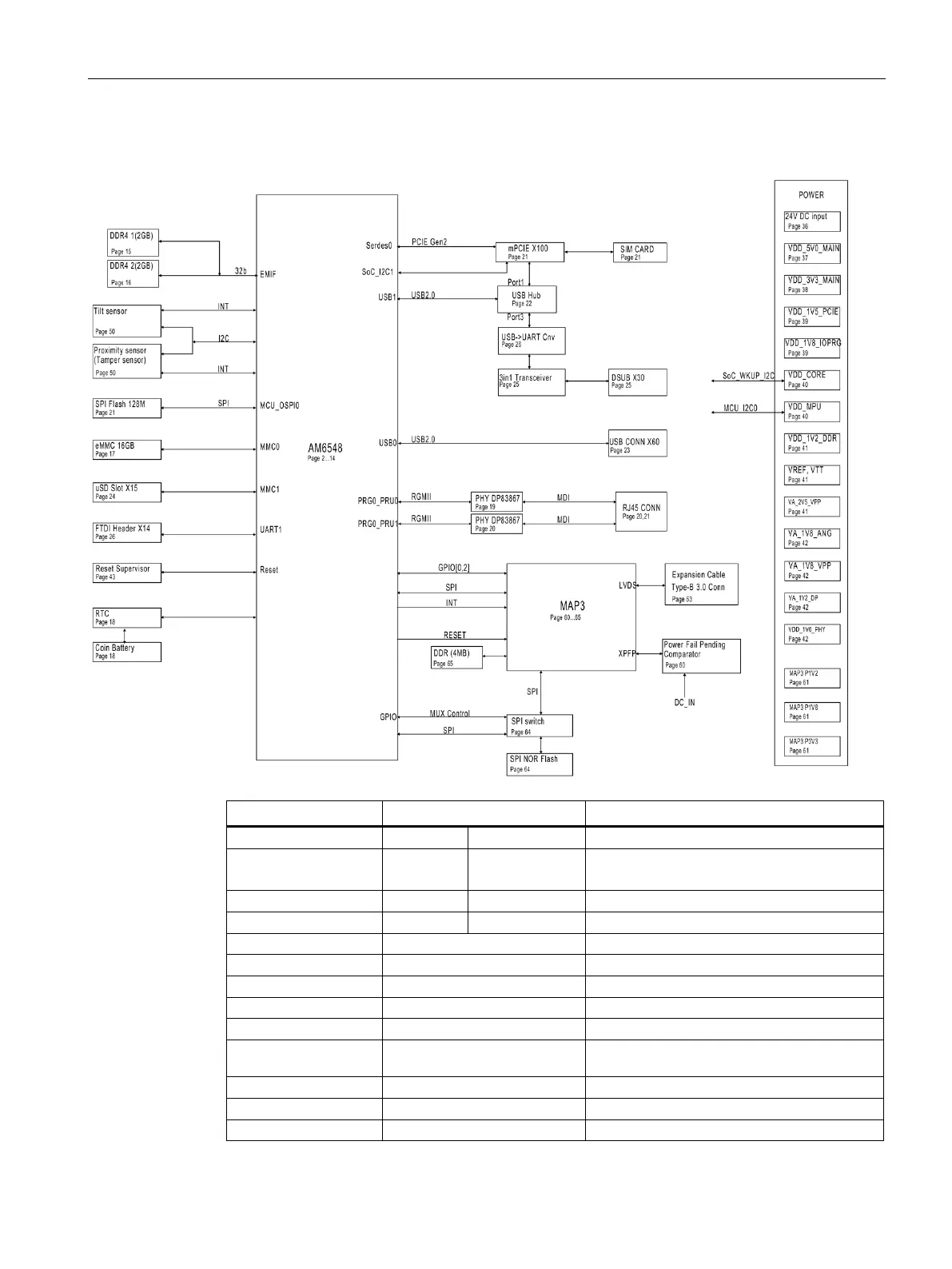

The following figures show the diagram of IOT2050 SM.
Component/interface
Description / inscription
Meaning, comment
H2800
LEDs
PWR
Power (green)
H1801
STAT
OS is running (Green Blink).
OS is not running (Red blink).
H1300
USER1
User LED (green/red/orange), programmable
H3300
USER2
User LED (green/red/orange), programmable
S1
RESET
For a reset of the CPU
S2
USER
Status can be queried with programming
X1
Ethernet 1 and Ethernet 2
X30
COM D-Sub9
X60
USB A Host
USB2.0 Type A
X110 Interface for S7-1200 SM
modules
X14
UART Debug
X40
Battery-Con
X50
µSD slot
