Siemens SIMATIC IOT2050 User Manual

Installing and connecting the device
3.3 Connecting the device
SIMATIC IOT2050
32 Operating Instructions, 03/2024, A5E39456816-AF
Requirement
• You are using the supplied terminal.
• A two-core cable meet the following requirements:
– a copper (Cu) cable with cross-section of 0.75 mm
2
to 2.5 mm
2
– rated temperature 70 °C
• A slotted screwdriver with a 3 mm blade.

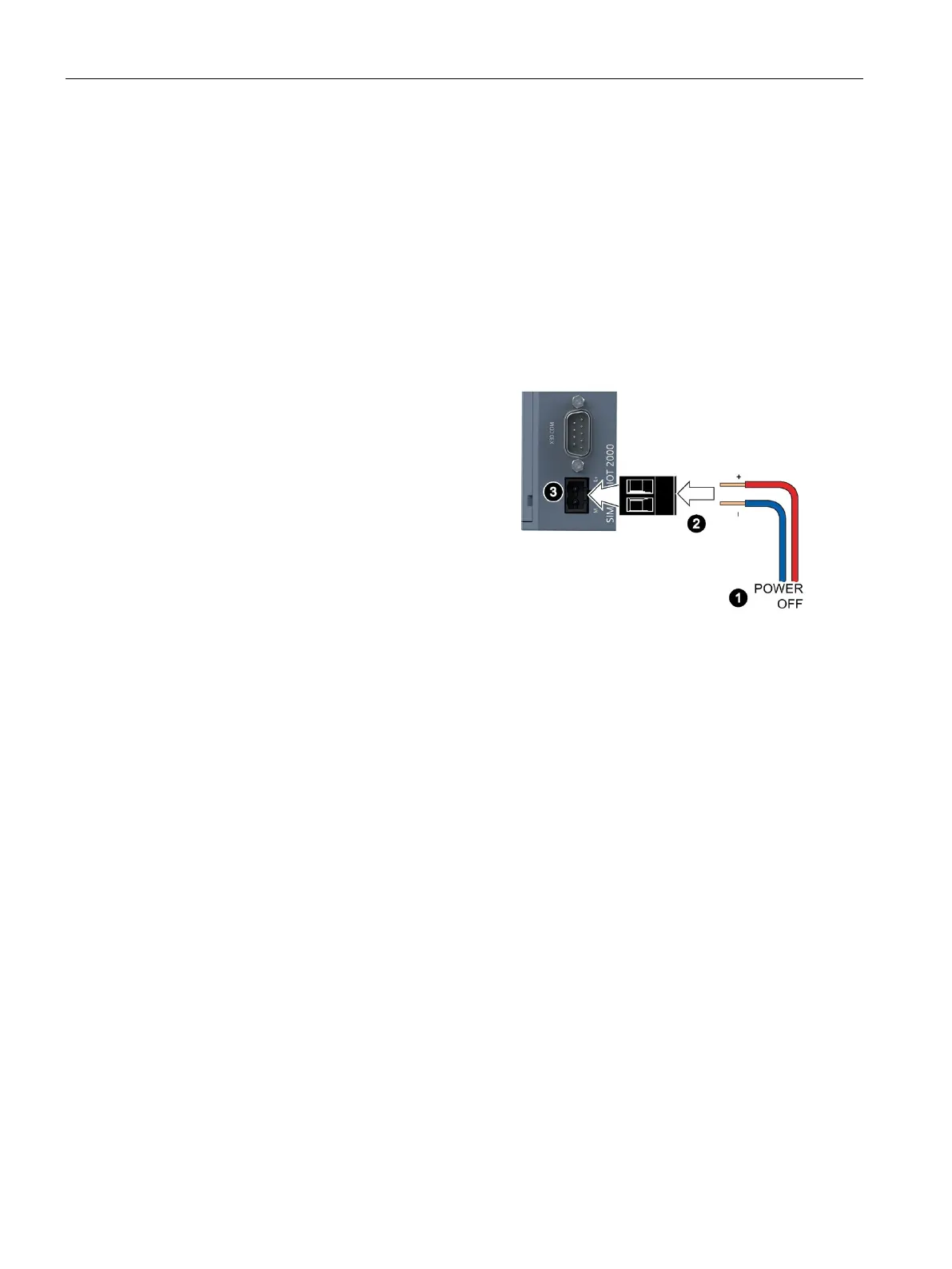

Procedure
1.
Switch off the power supply.
2.
Connect the lines to the connecting
terminal with a torque of 0.56 Nm (5lb-
in).
3.
Connect the connecting terminal to the
connection for the power supply.

Siemens SIMATIC IOT2050 Specifications

General

Storage	8 GB eMMC
Real-time clock	Yes, with battery backup
RAM	1 GB DDR3L
Interfaces	2 x Ethernet, 2 x USB
Operating System	Linux-based
Power Supply	24V DC
Certifications	CE, UL, FCC
Operating Temperature	0°C to 50°C
