Siemens SIMATIC IOT2050 User Manual

Software and commissioning
4.2 Install example image on eMMC
SIMATIC IOT2050
40 Operating Instructions, 03/2024, A5E39456816-AF
Access IOT2050 with Putty
1. Connect the engineering station and the SIMATIC IOT2050 with an Ethernet cable.
Note: The SIMATIC IOT2050 has a static IP address by default, which is 192.168.200.1. For
version 1.0.2 this IP address is set to X1P2, but from version 1.1.1 it is set to X1P1.
– For V1.0.2, connect the Ethernet port X1P2
– For V1.1.1, connect the Ethernet port X1P1
2. Double-click the downloaded Putty.exe.
3. Enter "Default setting" in the description and click the Save button to save it.

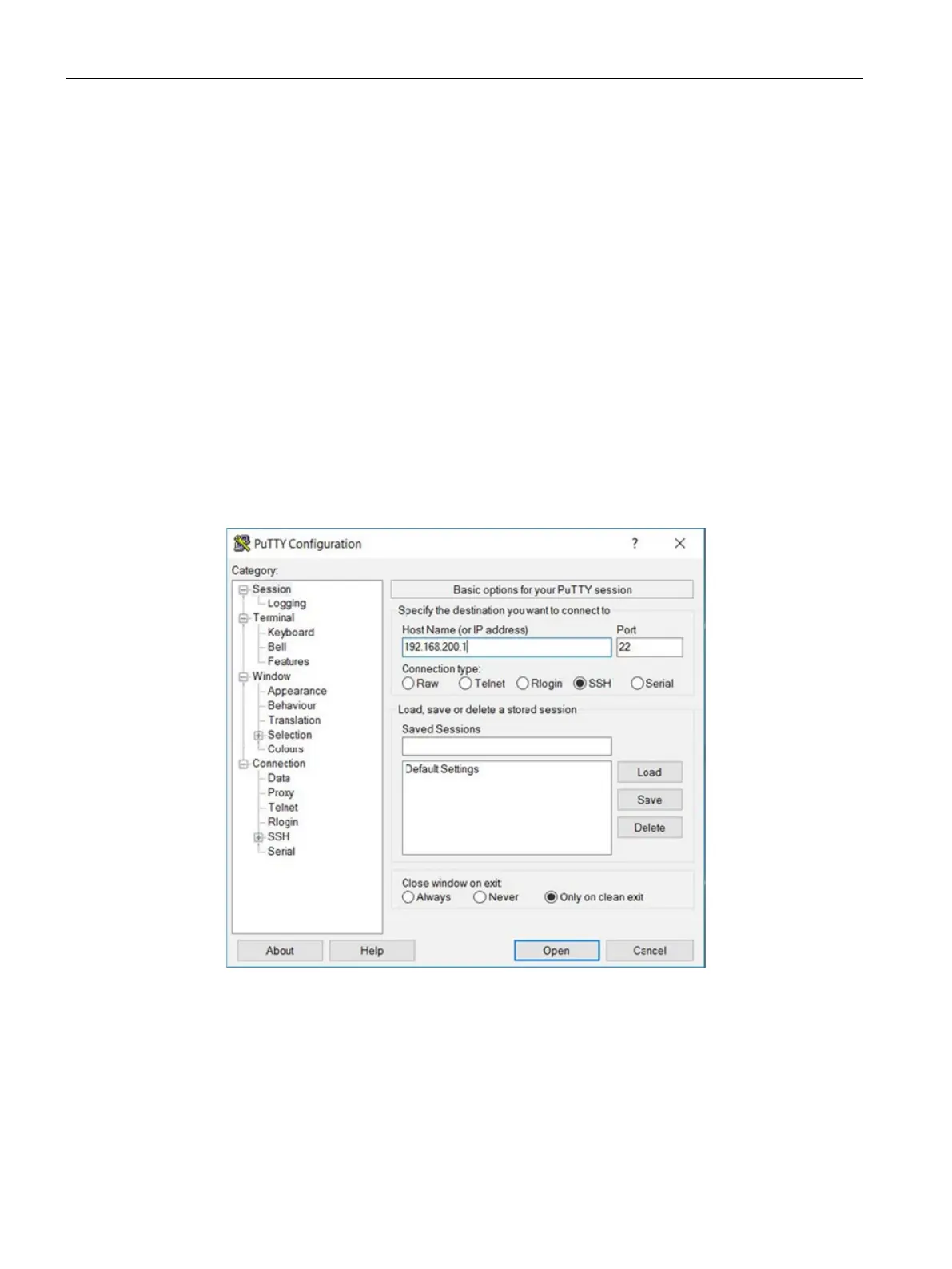

4. Configure the Putty connection.
– connection type: SSH
– IP address: 192.168.200.1
– Port: 22
5. Click "Open".
The Putty communication window opens.

Siemens SIMATIC IOT2050 Specifications

General

Storage	8 GB eMMC
Real-time clock	Yes, with battery backup
RAM	1 GB DDR3L
Interfaces	2 x Ethernet, 2 x USB
Operating System	Linux-based
Power Supply	24V DC
Certifications	CE, UL, FCC
Operating Temperature	0°C to 50°C
