Siemens SIMATIC IOT2050 User Manual

Software and commissioning
4.2 Install example image on eMMC
SIMATIC IOT2050
Operating Instructions, 03/2024, A5E39456816-AF
43

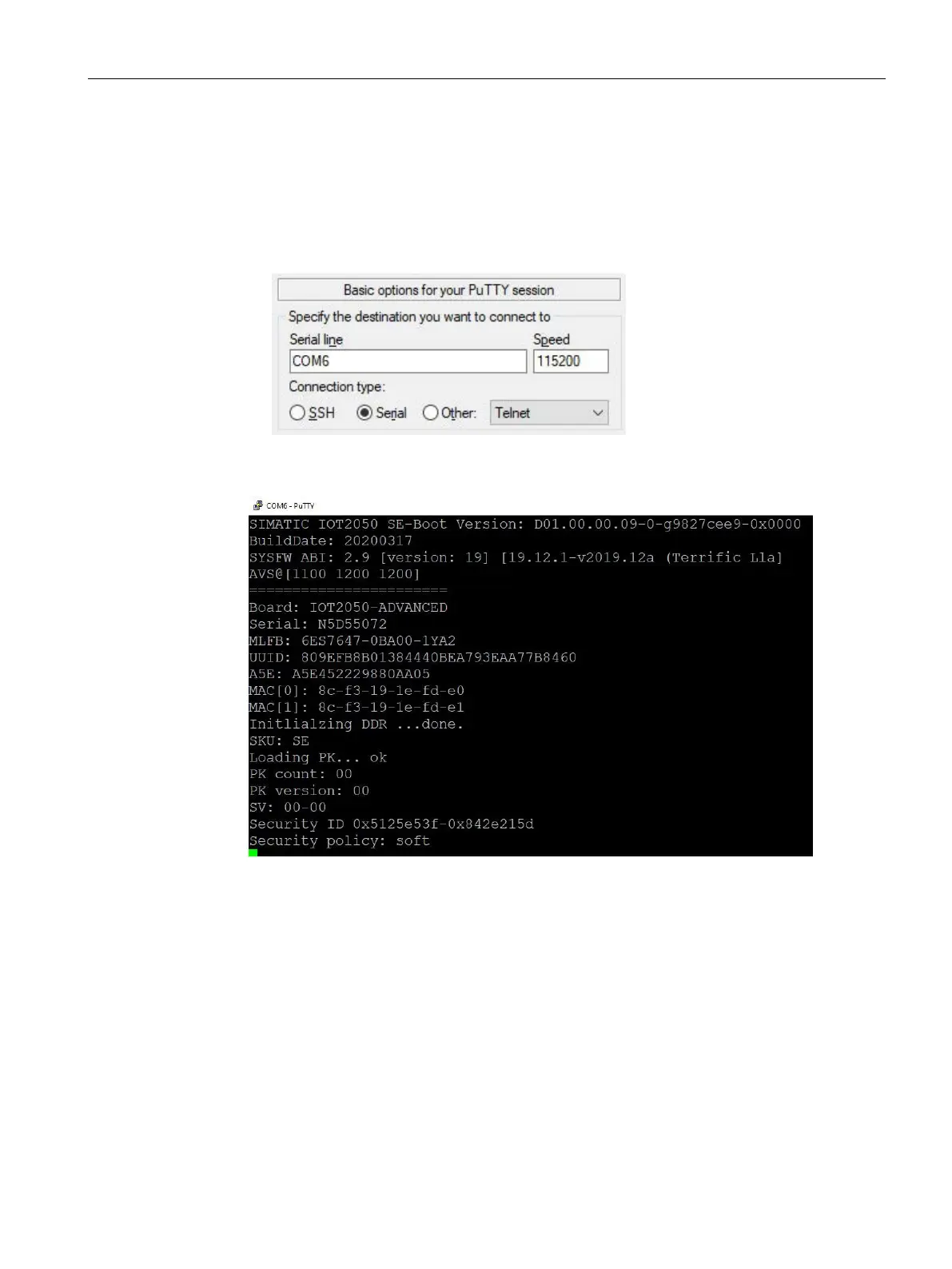

6. Configure the Putty connection.
– Connection type: Serial
– Serial production line: COM6 (We use COM6 for demonstration, which is the port
number obtained from step 3.)
– Speed: 115200
7. Power on the IOT2050
You can see the whole boot process in the Putty communication window.

Siemens SIMATIC IOT2050 Specifications

General

Storage	8 GB eMMC
Real-time clock	Yes, with battery backup
RAM	1 GB DDR3L
Interfaces	2 x Ethernet, 2 x USB
Operating System	Linux-based
Power Supply	24V DC
Certifications	CE, UL, FCC
Operating Temperature	0°C to 50°C
