Siemens SIMATIC IOT2050 User Manual

Maintaining and repairing the device
6.3 Replacing the backup battery
SIMATIC IOT2050
68 Operating Instructions, 03/2024, A5E39456816-AF

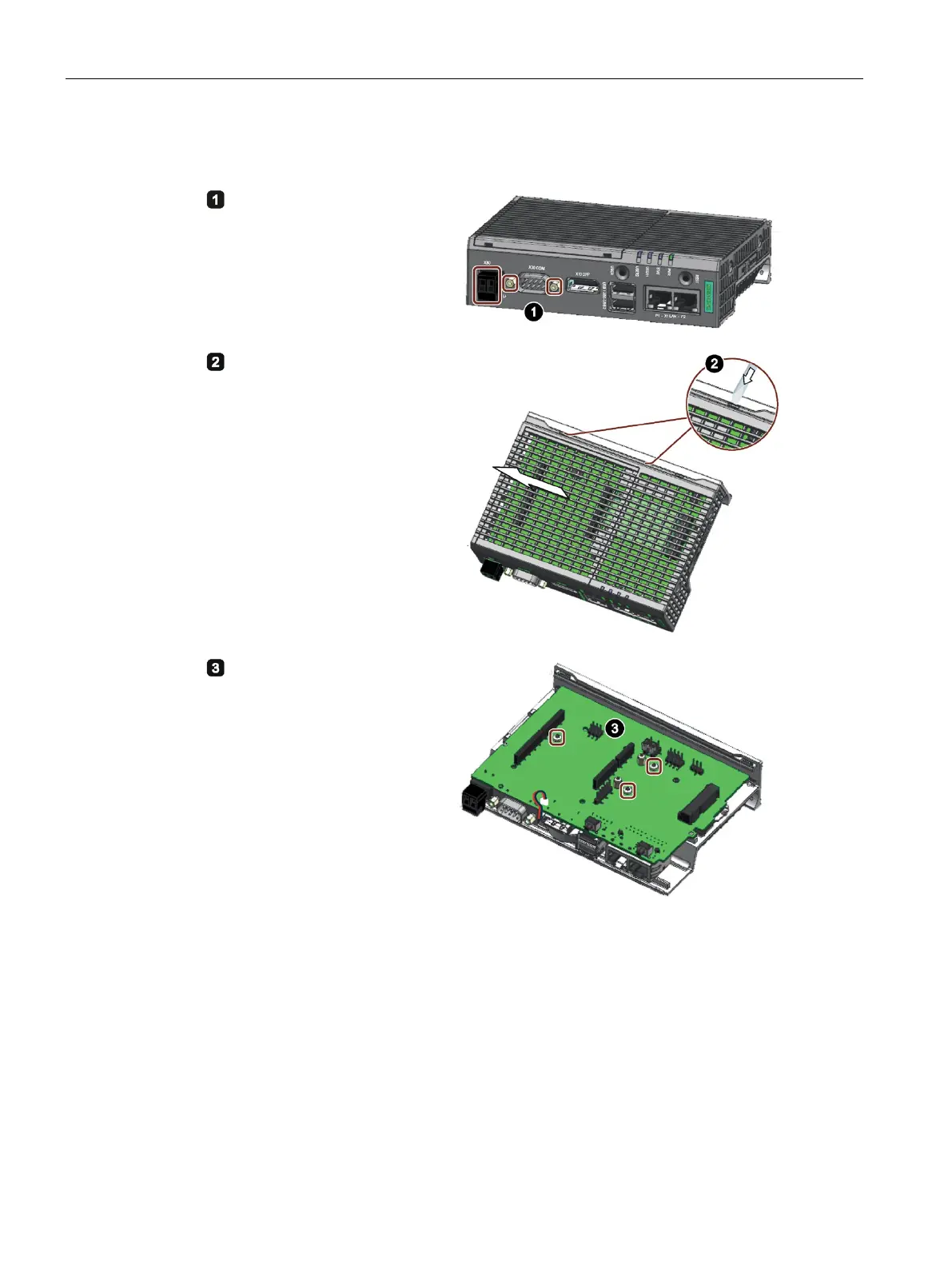

Procedure
Remove the power plug and
marked screws.
Loosen the top housing. Care-
fully press with the blade of a
flat
-blade screwdriver in the
marked recesses and carefully
pull on the appropriate place
on the top housing of the en-
closure.
Remove the top housing of the
enclosure.
Remove the marked screws on
the motherboard.

Siemens SIMATIC IOT2050 Specifications

General

Storage	8 GB eMMC
Real-time clock	Yes, with battery backup
RAM	1 GB DDR3L
Interfaces	2 x Ethernet, 2 x USB
Operating System	Linux-based
Power Supply	24V DC
Certifications	CE, UL, FCC
Operating Temperature	0°C to 50°C
