Siemens SIMATIC IOT2050 User Manual

Maintaining and repairing the device
6.6 Configure IOT2050 SM
SIMATIC IOT2050
78 Operating Instructions, 03/2024, A5E39456816-AF

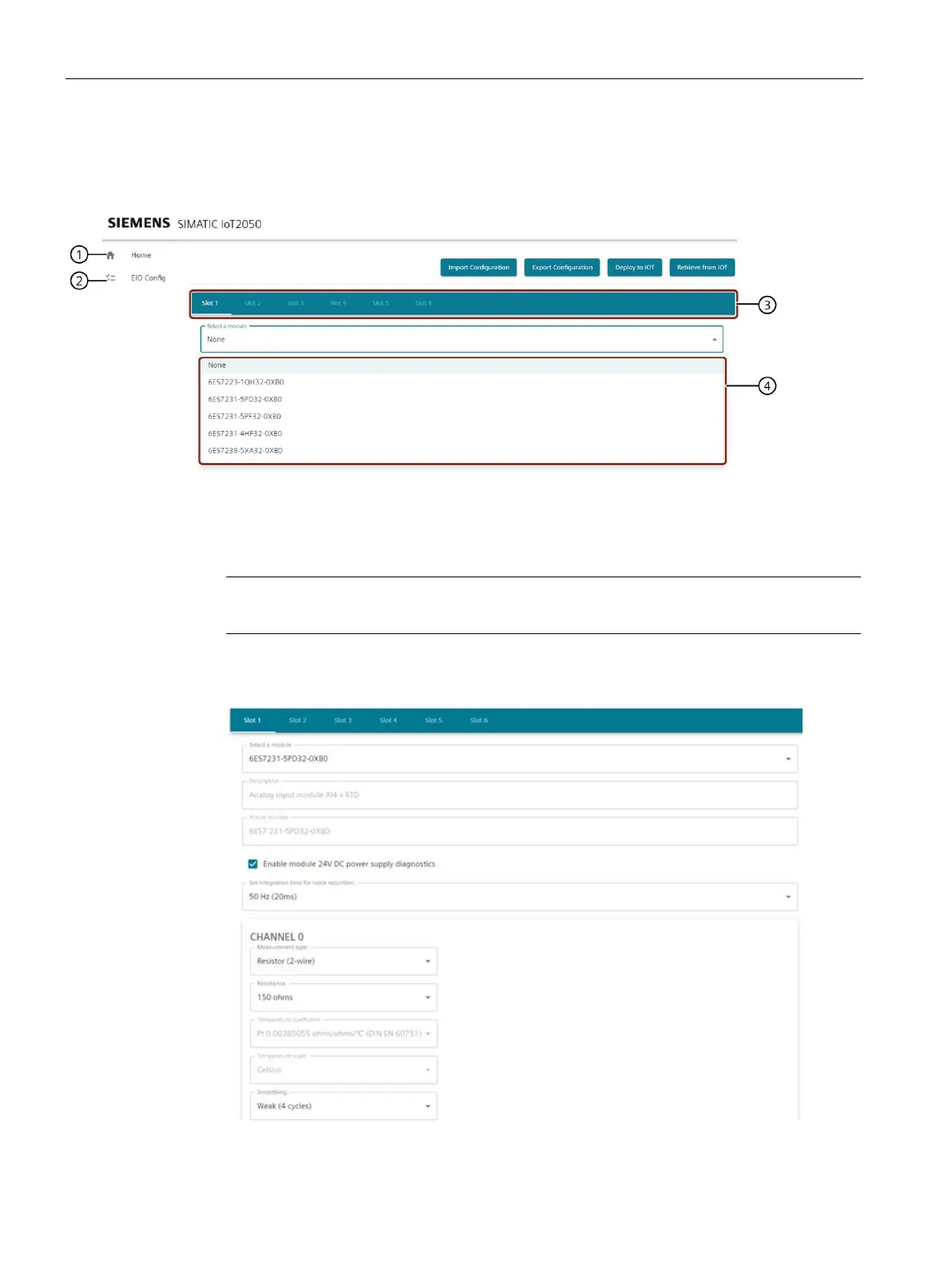

Configure the S7-1200 SM
1. Click ② to enter the configuration page.
①
Home
③
Slots of the selected SM module
②
EIM config
④
SM modules that IOT supports to configure
2. Select SM module from ④.
Note
An IOT2050 SM can manage a maximum of 6 SM modules.
3. Configure the features of the module according to your needs.
Click the button in ③ to switch slots.

Siemens SIMATIC IOT2050 Specifications

General

Storage	8 GB eMMC
Real-time clock	Yes, with battery backup
RAM	1 GB DDR3L
Interfaces	2 x Ethernet, 2 x USB
Operating System	Linux-based
Power Supply	24V DC
Certifications	CE, UL, FCC
Operating Temperature	0°C to 50°C
