SIMATIC IPC277E 9" MT
8 A5E44033779-AA, 3/2018
Requirement
● All packaging components and protective foils should be removed from the HMI device.
● To install the HMI device, you need the mounting clips from the accessories kit.
Procedure

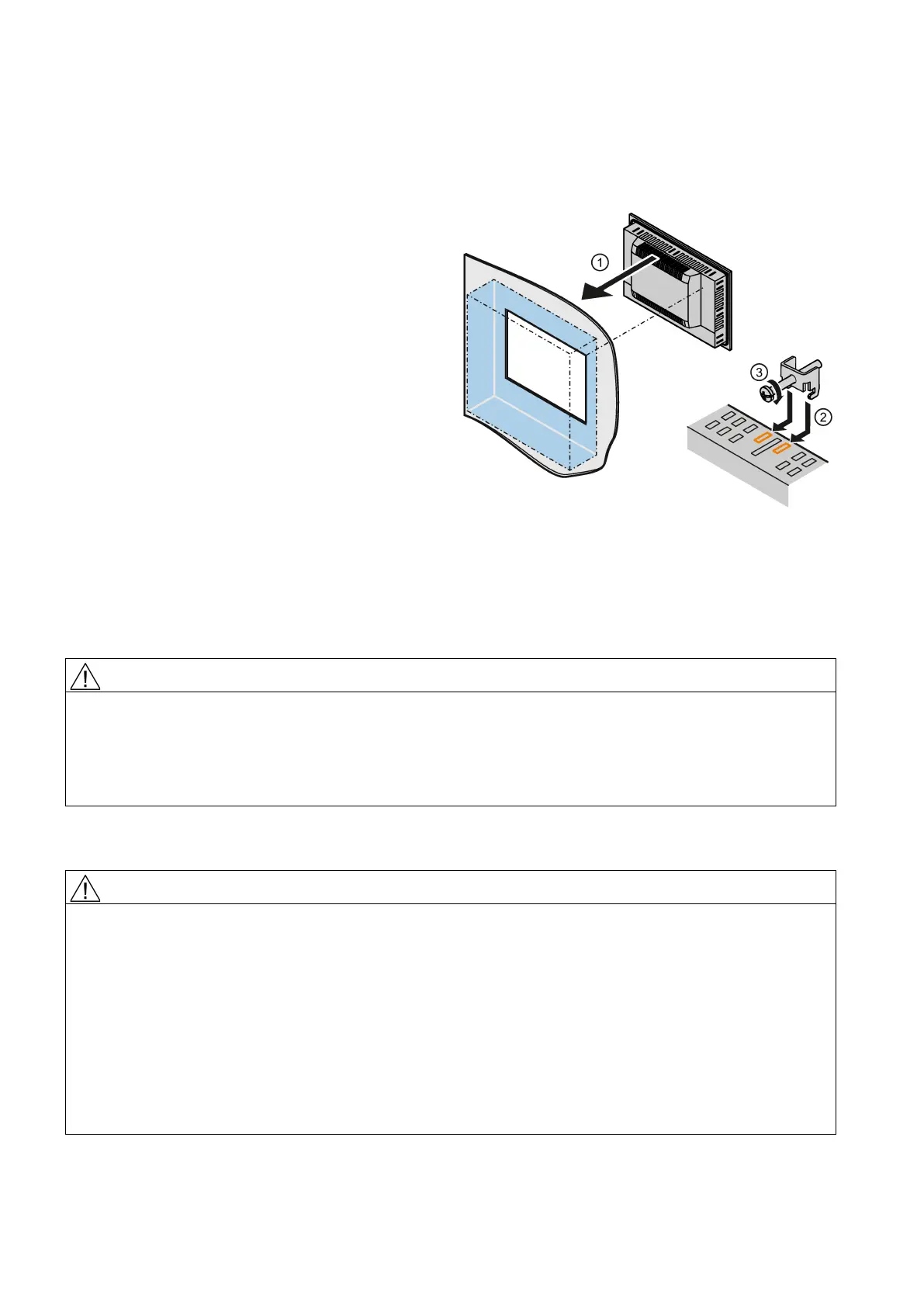

1.
Insert the HMI d
evice into the mounting cutout from the
front.
2.
Insert a mounting clip into the cutout provided on the
HMI device.
3.
Tighten the threaded pin to secure the mounting clip.
The maximum torque when tightening the threaded
pins is 0.5 Nm.
4.
Repeat steps 2 and 3 for all mounting clips.
5.
Check the fit of the mounting seal.
Result
The HMI device is mounted and the relevant degree of protection is ensured at the front.
3
Operating a device with capacitive multi-touch screen
You operate the multi-touch screen with one or multiple fingers.
WARNING
Personal injury or property damage due to no earth connection
An inadequate earth connection or the lack of one may cause malfunction of the capacitive touch screen. Functions may
not work properly. This can result in personal injury or property damage.
• Always connect the device to an earth conductor.
• The earth conductor from the device must be connected directly to earth with low impedance (short connection,
minimum cross-section 2.5 mm
2
).
You can find additional information on connecting the earth conductor in the section "Installing and connecting the device
(Page 7)".
WARNING
Danger of malfunction due to improper execution of gestures on the touch screen
If gestures are executed incorrectly on the touch screen with multi-touch function, these gestures might not be recognized
or could be recognized incorrectly. The entries made are then not implemented by the device or are implemented
incorrectly or in an unintended manner.
Incorrect execution of multi-touch functions can lead to errors in the operation of the plant and thus to physical injury.
Note the following when operating the touch screen with multi-touch function:
• The touch screen reacts to contact on its surface, not to pressure.
• When using a touch pen: Operate the touch screen only with a touch pen for capacitive touch.
• Avoid unintended multiple touches, for example, with your knuckles.
Before you start to operate the device, make sure you are familiar with the multi-touch functions of the Windows operating
system, as well as with the application to be used and its functions. Ensure that the gestures which the user executes on
the multi-touch display are recognized by the application. It is possible that certain gestures need to be trained beforehand.
