Overview
1.5 Design of the KTP1000 DP Basic HMI device
KTP400 Basic, KTP600 Basic, KTP1000 Basic, TP1500 Basic
Operating Instructions, 08/2008, A5E01075587-01
15

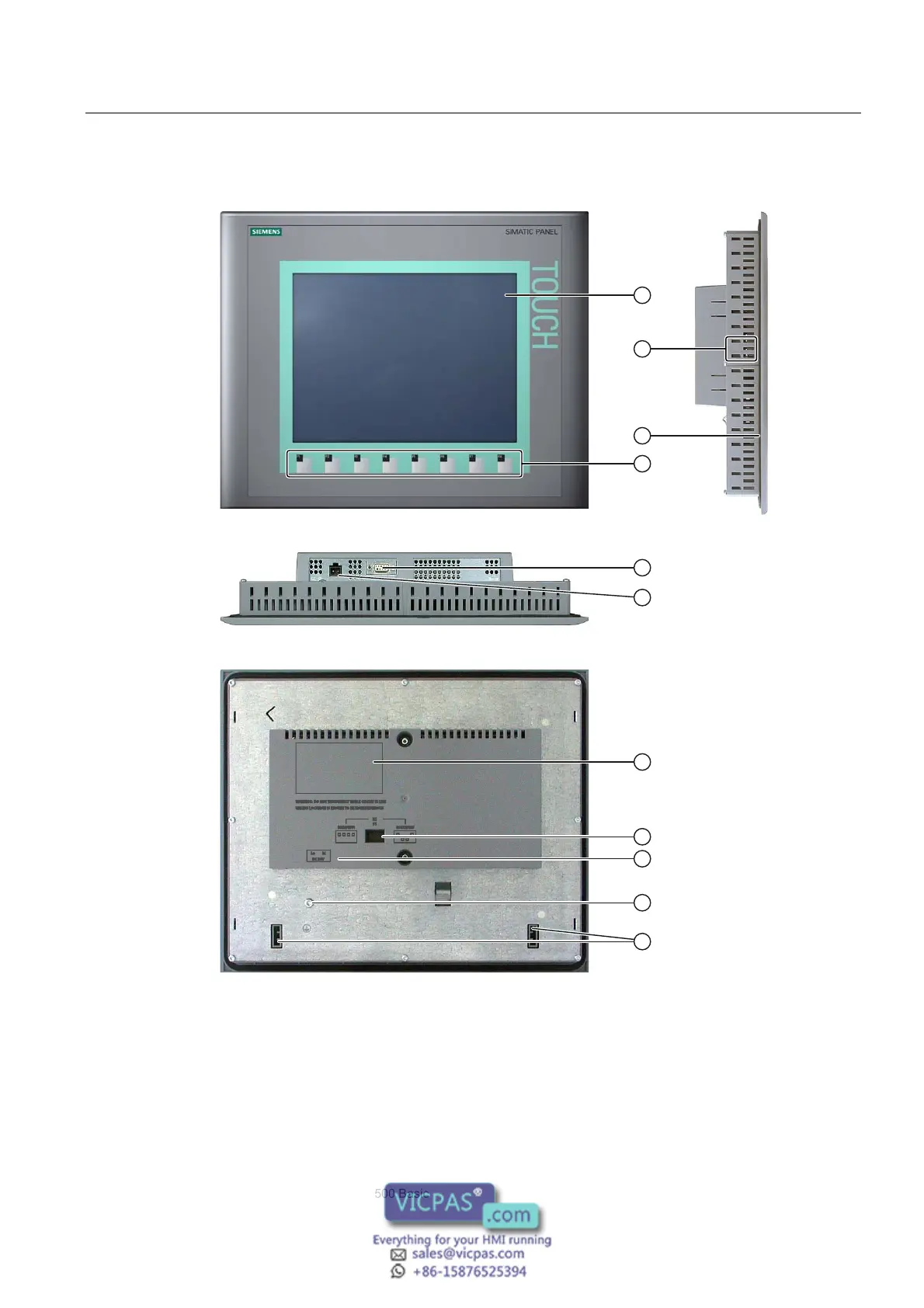

1.5 Design of the KTP1000 DP Basic HMI device


① Display / touch screen ⑦ Rating plate
② Recesses for mounting clamps ⑧ DIP switch
③ Mounting seal ⑨ Interface name
④ Function keys ⑩ Connection for functional ground
⑤ RS-422/485 interface ⑪ Guides for labeling strips
⑥ Power supply connector
