Mounting and connecting
3.3 Connecting the HMI device
KTP400 Basic, KTP600 Basic, KTP1000 Basic, TP1500 Basic
Operating Instructions, 08/2008, A5E01075587-01
33

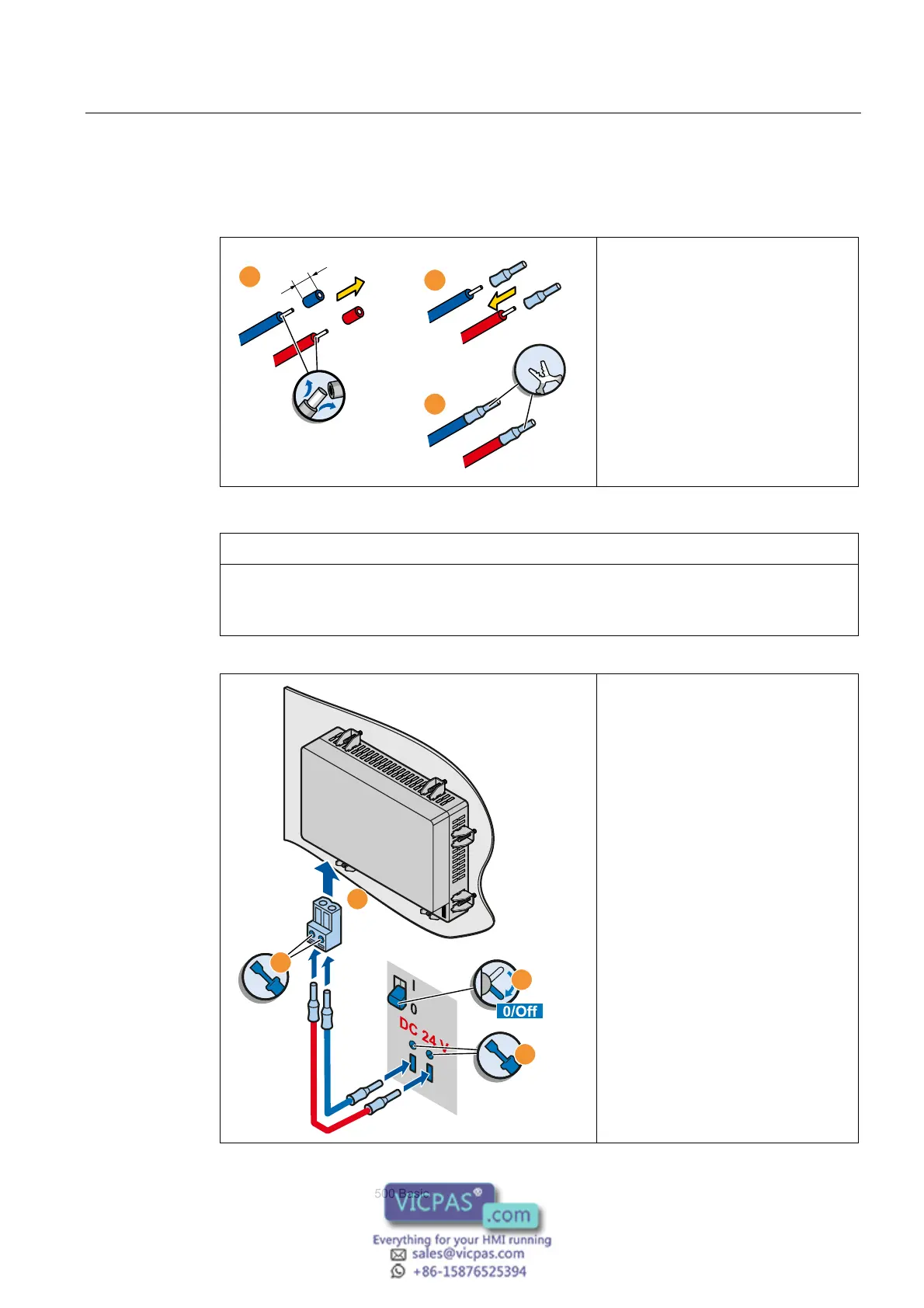

3.3.3 Connecting the power supply
Stripping the cable
3
2
6 mm
1
Use power supply cables with a
maximum cross-section of 1.5 mm
2
.
1. Strip the ends of both power supply
cables to a length of 6 mm.
2. Insert the cable sleeve onto the bare
cable ends.
3. Fix the cable sleeve onto the cable
ends using the crimp pliers.
Procedure
CAUTION
24 VDC only
An incorrectly dimensioned power supply can lead to destruction of the HMI device.
Use a 24 VDC power supply with adequate amperage; see
Specifications (Page 93).
M
L+
.73
4
3
2
1
1. Insert the two power cables into the
mains terminal and secure them with
a slotted screwdriver.
2. Connect the HMI device to the
mains terminal.
3. Switch off the power supply.
4. Insert the two remaining cable ends
into the power terminal and secure
them with the slotted screwdriver.
Ensure correct polarity.
