Configuring the operating system
6.2 Calibrating the touch screen
MP 377 15" Touch daylight readable (WinCC flexible)
40 Operating Instructions (Compact), 04/2009, A5E02532357-01
Procedure
Note
You have to touch the calibration crosshairs and the buttons one after the other in 5 s
intervals. Otherwise the "OP Properties" dialog will be displayed again.
Proceed as follows:
1. Click on the "Recalibrate" button.

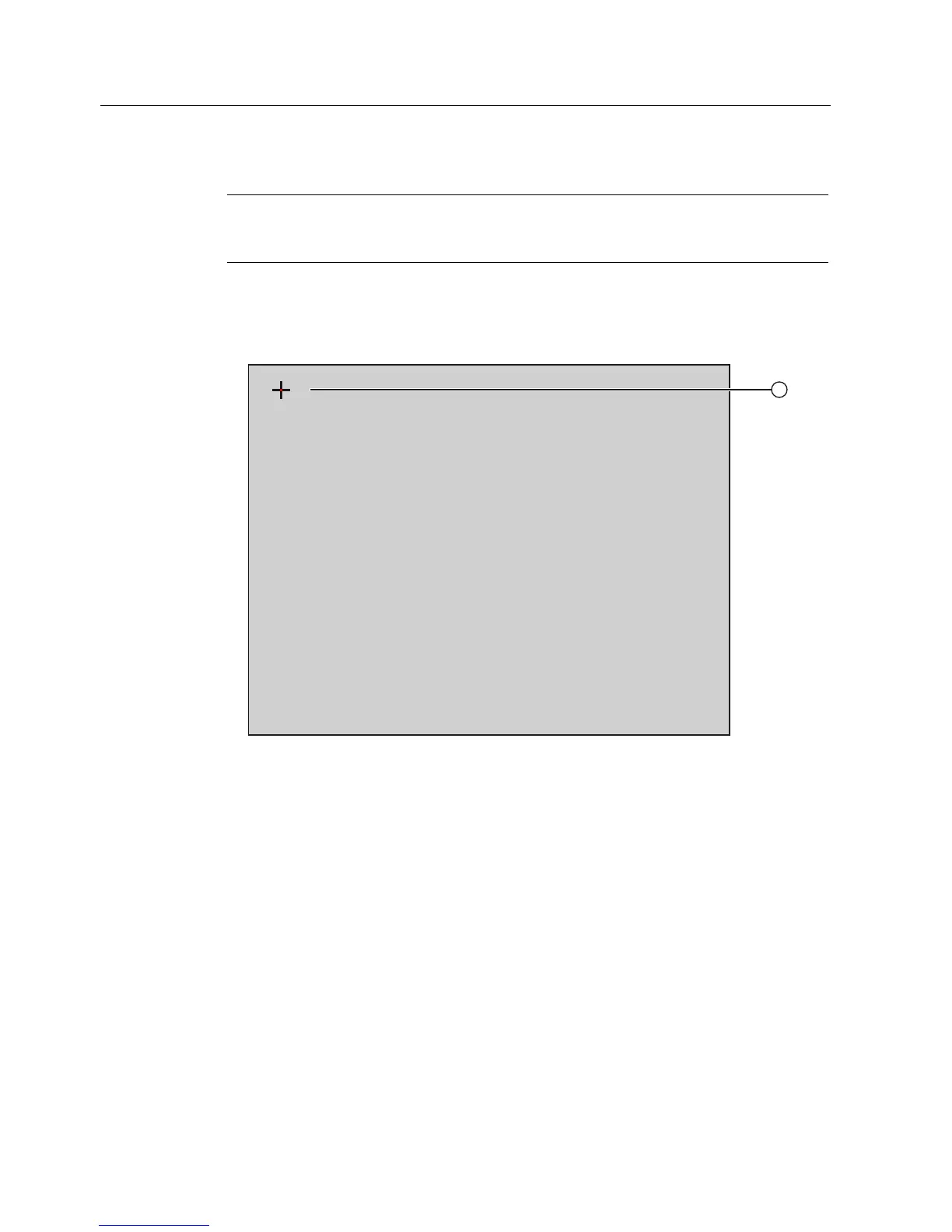

The following dialog opens:
'HYLFHRQ:KROH'HVNWRS
2. Briefly touch the middle of the calibration crosshairs ①.
Confirm the calibration with a green check mark at this location; the next calibration
crosshairs will be displayed.
